Fuse NH1 gG 500V 32A weatherresistant

    Fuse NH1 gG 500V 32A weatherresistant

    2023813.32.0
    SIBA
    Available
    Class
    gG
    Rated current In (A)
    32
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    120000
    Voltage of total I2t test
    440
    Format
    NH knife contact
    Dimension
    NH1
    Pre-arcing I2t value (A2s)
    2600
    Total I2t value (A2s)
    5630
    Homologations
    IEC
    Power loss (W)
    3,5

    Product available on request


    Catalog
    Datasheet
    Fuse NH1 gG 500V 250A weatherresistant

      Fuse NH1 gG 500V 250A weatherresistant

      2023813.250.0
      SIBA
      Available
      Class
      gG
      Rated current In (A)
      250
      Rated Voltage Un AC (V)
      500
      Rated break.capacity I1 AC (A)
      120000
      Voltage of total I2t test
      440
      Format
      NH knife contact
      Dimension
      NH1
      Pre-arcing I2t value (A2s)
      240800
      Total I2t value (A2s)
      616000
      Homologations
      IEC
      Power loss (W)
      17,9

      Product available on request


      Catalog
      Datasheet
      Fuse NH1 gG 500V 25A weatherresistant

        Fuse NH1 gG 500V 25A weatherresistant

        2023813.25.0
        SIBA
        Available
        Class
        gG
        Rated current In (A)
        25
        Rated Voltage Un AC (V)
        500
        Rated break.capacity I1 AC (A)
        120000
        Voltage of total I2t test
        440
        Format
        NH knife contact
        Dimension
        NH1
        Pre-arcing I2t value (A2s)
        1440
        Total I2t value (A2s)
        2890
        Homologations
        IEC
        Power loss (W)
        3,1

        Product available on request


        Catalog
        Datasheet
        Fuse NH1 gG 500V 224A weatherresistant

          Fuse NH1 gG 500V 224A weatherresistant

          2023813.224.0
          SIBA
          Available
          Class
          gG
          Rated current In (A)
          224
          Rated Voltage Un AC (V)
          500
          Rated break.capacity I1 AC (A)
          120000
          Voltage of total I2t test
          440
          Format
          NH knife contact
          Dimension
          NH1
          Pre-arcing I2t value (A2s)
          194800
          Total I2t value (A2s)
          483400
          Homologations
          IEC
          Power loss (W)
          16,2

          Product available on request


          Catalog
          Datasheet
          Fuse NH1 gG 500V 200A weatherresistant

            Fuse NH1 gG 500V 200A weatherresistant

            2023813.200.0
            SIBA
            Available
            Class
            gG
            Rated current In (A)
            200
            Rated Voltage Un AC (V)
            500
            Rated break.capacity I1 AC (A)
            120000
            Voltage of total I2t test
            440
            Format
            NH knife contact
            Dimension
            NH1
            Pre-arcing I2t value (A2s)
            157600
            Total I2t value (A2s)
            390900
            Homologations
            IEC
            Power loss (W)
            15

            Product available on request


            Catalog
            Datasheet
            Fuse NH1 gG 500V 20A weatherresistant

              Fuse NH1 gG 500V 20A weatherresistant

              2023813.20.0
              SIBA
              Available
              Class
              gG
              Rated current In (A)
              20
              Rated Voltage Un AC (V)
              500
              Rated break.capacity I1 AC (A)
              120000
              Voltage of total I2t test
              440
              Format
              NH knife contact
              Dimension
              NH1
              Pre-arcing I2t value (A2s)
              760
              Total I2t value (A2s)
              1480
              Homologations
              IEC
              Power loss (W)
              2,7

              Product available on request


              Catalog
              Datasheet
              Fuse NH1 gG 500V 16A weatherresistant

                Fuse NH1 gG 500V 16A weatherresistant

                2023813.16.0
                SIBA
                Available
                Class
                gG
                Rated current In (A)
                16
                Rated Voltage Un AC (V)
                500
                Rated break.capacity I1 AC (A)
                120000
                Voltage of total I2t test
                440
                Format
                NH knife contact
                Dimension
                NH1
                Pre-arcing I2t value (A2s)
                420
                Total I2t value (A2s)
                810
                Homologations
                IEC
                Power loss (W)
                4,2

                Product available on request


                Catalog
                Datasheet
                Fuse NH1 gG 500V 10A weatherresistant

                  Fuse NH1 gG 500V 10A weatherresistant

                  2023813.10.0
                  SIBA
                  Available
                  Class
                  gG
                  Rated current In (A)
                  10
                  Rated Voltage Un AC (V)
                  500
                  Rated break.capacity I1 AC (A)
                  120000
                  Voltage of total I2t test
                  440
                  Format
                  NH knife contact
                  Dimension
                  NH1
                  Pre-arcing I2t value (A2s)
                  230
                  Total I2t value (A2s)
                  560
                  Homologations
                  IEC
                  Power loss (W)
                  4,2

                  Product available on request


                  Catalog
                  Datasheet
                  Fuse NH0 gG 500V 6A weatherresistant

                    Fuse NH0 gG 500V 6A weatherresistant

                    2023713.6.0
                    SIBA
                    Available
                    Class
                    gG
                    Rated current In (A)
                    6
                    Rated Voltage Un AC (V)
                    500
                    Rated break.capacity I1 AC (A)
                    120000
                    Voltage of total I2t test
                    440
                    Format
                    NH knife contact
                    Dimension
                    NH0
                    Pre-arcing I2t value (A2s)
                    36
                    Total I2t value (A2s)
                    130
                    Homologations
                    IEC

                    Product available on request


                    Catalog
                    Datasheet
                    Fuse NH0 gG 500V 40A weatherresistant

                      Fuse NH0 gG 500V 40A weatherresistant

                      2023713.40.0
                      SIBA
                      Available
                      Class
                      gG
                      Rated current In (A)
                      40
                      Rated Voltage Un AC (V)
                      500
                      Rated break.capacity I1 AC (A)
                      120000
                      Voltage of total I2t test
                      440
                      Format
                      NH knife contact
                      Dimension
                      NH0
                      Pre-arcing I2t value (A2s)
                      4700
                      Total I2t value (A2s)
                      11300
                      Homologations
                      IEC
                      Power loss (W)
                      4,3

                      Product available on request


                      Catalog
                      Datasheet
                      Fuse NH0 gG 500V 4A weatherresistant

                        Fuse NH0 gG 500V 4A weatherresistant

                        2023713.4.0
                        SIBA
                        Available
                        Class
                        gG
                        Rated current In (A)
                        4
                        Rated Voltage Un AC (V)
                        500
                        Rated break.capacity I1 AC (A)
                        120000
                        Voltage of total I2t test
                        440
                        Format
                        NH knife contact
                        Dimension
                        NH0
                        Pre-arcing I2t value (A2s)
                        6
                        Total I2t value (A2s)
                        24
                        Homologations
                        IEC

                        Product available on request


                        Catalog
                        Datasheet

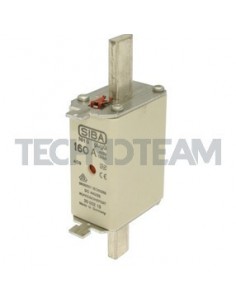

                        Fuse NH0 gG 500V 32A weatherresistant

                          Fuse NH0 gG 500V 32A weatherresistant

                          2023713.32.0
                          SIBA
                          Available
                          Class
                          gG
                          Rated current In (A)
                          32
                          Rated Voltage Un AC (V)
                          500
                          Rated break.capacity I1 AC (A)
                          120000
                          Voltage of total I2t test
                          440
                          Format
                          NH knife contact
                          Dimension
                          NH0
                          Pre-arcing I2t value (A2s)
                          2600
                          Total I2t value (A2s)
                          5630
                          Homologations
                          IEC
                          Power loss (W)
                          3,5

                          Product available on request


                          Catalog
                          Datasheet
                          Fuse NH0 gG 500V 20A weatherresistant

                            Fuse NH0 gG 500V 20A weatherresistant

                            2023713.20.0
                            SIBA
                            Available
                            Class
                            gG
                            Rated current In (A)
                            20
                            Rated Voltage Un AC (V)
                            500
                            Rated break.capacity I1 AC (A)
                            120000
                            Voltage of total I2t test
                            440
                            Format
                            NH knife contact
                            Dimension
                            NH0
                            Pre-arcing I2t value (A2s)
                            760
                            Total I2t value (A2s)
                            1480
                            Homologations
                            IEC
                            Power loss (W)
                            2,7

                            Product available on request


                            Catalog
                            Datasheet
                            Fuse NH0 gG 500V 2A weatherresistant

                              Fuse NH0 gG 500V 2A weatherresistant

                              2023713.2.0
                              SIBA
                              Available
                              Class
                              gG
                              Rated current In (A)
                              2
                              Rated Voltage Un AC (V)
                              500
                              Rated break.capacity I1 AC (A)
                              120000
                              Voltage of total I2t test
                              440
                              Format
                              NH knife contact
                              Dimension
                              NH0
                              Pre-arcing I2t value (A2s)
                              2
                              Total I2t value (A2s)
                              8
                              Homologations
                              IEC

                              Product available on request


                              Catalog
                              Datasheet
                              Fuse NH0 gG 500V 160A weatherresistant

                                Fuse NH0 gG 500V 160A weatherresistant

                                2023713.160.0
                                SIBA
                                Available
                                Class
                                gG
                                Rated current In (A)
                                160
                                Rated Voltage Un AC (V)
                                500
                                Rated break.capacity I1 AC (A)
                                120000
                                Voltage of total I2t test
                                440
                                Format
                                NH knife contact
                                Dimension
                                NH0
                                Pre-arcing I2t value (A2s)
                                78500
                                Total I2t value (A2s)
                                226600
                                Homologations
                                IEC
                                Power loss (W)
                                12,8

                                Product available on request


                                Catalog
                                Datasheet
                                Fuse NH0 gG 500V 16A weatherresistant

                                  Fuse NH0 gG 500V 16A weatherresistant

                                  2023713.16.0
                                  SIBA
                                  Available
                                  Class
                                  gG
                                  Rated current In (A)
                                  16
                                  Rated Voltage Un AC (V)
                                  500
                                  Rated break.capacity I1 AC (A)
                                  120000
                                  Voltage of total I2t test
                                  440
                                  Format
                                  NH knife contact
                                  Dimension
                                  NH0
                                  Pre-arcing I2t value (A2s)
                                  420
                                  Total I2t value (A2s)
                                  810
                                  Homologations
                                  IEC
                                  Power loss (W)
                                  4,2

                                  Product available on request


                                  Catalog
                                  Datasheet
                                  Fuse NH0 gG 500V 10A weatherresistant

                                    Fuse NH0 gG 500V 10A weatherresistant

                                    2023713.10.0
                                    SIBA
                                    Available
                                    Class
                                    gG
                                    Rated current In (A)
                                    10
                                    Rated Voltage Un AC (V)
                                    500
                                    Rated break.capacity I1 AC (A)
                                    120000
                                    Voltage of total I2t test
                                    440
                                    Format
                                    NH knife contact
                                    Dimension
                                    NH0
                                    Pre-arcing I2t value (A2s)
                                    230
                                    Total I2t value (A2s)
                                    560
                                    Homologations
                                    IEC

                                    Product available on request


                                    Catalog
                                    Datasheet
                                    Fuse NH3 TY-gG 500V 80A

                                      Fuse NH3 TY-gG 500V 80A

                                      2000516.80.0
                                      SIBA
                                      Available
                                      Class
                                      gG
                                      Rated current In (A)
                                      80
                                      Rated Voltage Un AC (V)
                                      500
                                      Rated break.capacity I1 AC (A)
                                      120000
                                      Voltage of total I2t test
                                      318
                                      Format
                                      NH knife contact
                                      Dimension
                                      NH3
                                      Pre-arcing I2t value (A2s)
                                      13900
                                      Total I2t value (A2s)
                                      23800
                                      Homologations
                                      IEC
                                      Power loss (W)
                                      6,8

                                      Product available on request


                                      Catalog
                                      Datasheet
                                      Fuse NH3 TY-gG 500V 63A

                                        Fuse NH3 TY-gG 500V 63A

                                        2000516.63.0
                                        SIBA
                                        Available
                                        Class
                                        gG
                                        Rated current In (A)
                                        63
                                        Rated Voltage Un AC (V)
                                        500
                                        Rated break.capacity I1 AC (A)
                                        120000
                                        Voltage of total I2t test
                                        318
                                        Format
                                        NH knife contact
                                        Dimension
                                        NH3
                                        Pre-arcing I2t value (A2s)
                                        9200
                                        Total I2t value (A2s)
                                        15700
                                        Homologations
                                        IEC
                                        Power loss (W)
                                        5,9

                                        Product available on request


                                        Catalog
                                        Datasheet
                                        Fuse NH3 TY-gG 500V 250A

                                          Fuse NH3 TY-gG 500V 250A

                                          2000516.250.0
                                          SIBA
                                          Available
                                          Class
                                          gG
                                          Rated current In (A)
                                          250
                                          Rated Voltage Un AC (V)
                                          500
                                          Rated break.capacity I1 AC (A)
                                          120000
                                          Voltage of total I2t test
                                          318
                                          Format
                                          NH knife contact
                                          Dimension
                                          NH3
                                          Pre-arcing I2t value (A2s)
                                          177000
                                          Total I2t value (A2s)
                                          302000
                                          Homologations
                                          IEC
                                          Power loss (W)
                                          19

                                          Product available on request


                                          Catalog
                                          Datasheet
                                          Fuse NH3 TY-gG 500V 200A

                                            Fuse NH3 TY-gG 500V 200A

                                            2000516.200.0
                                            SIBA
                                            Available
                                            Class
                                            gG
                                            Rated current In (A)
                                            200
                                            Rated Voltage Un AC (V)
                                            500
                                            Rated break.capacity I1 AC (A)
                                            120000
                                            Voltage of total I2t test
                                            318
                                            Format
                                            NH knife contact
                                            Dimension
                                            NH3
                                            Pre-arcing I2t value (A2s)
                                            116000
                                            Total I2t value (A2s)
                                            193000
                                            Homologations
                                            IEC
                                            Power loss (W)
                                            17

                                            Product available on request


                                            Catalog
                                            Datasheet
                                            Fuse NH3 TY-gG 500V 160A

                                              Fuse NH3 TY-gG 500V 160A

                                              2000516.160.0
                                              SIBA
                                              Available
                                              Class
                                              gG
                                              Rated current In (A)
                                              160
                                              Rated Voltage Un AC (V)
                                              500
                                              Rated break.capacity I1 AC (A)
                                              120000
                                              Voltage of total I2t test
                                              318
                                              Format
                                              NH knife contact
                                              Dimension
                                              NH3
                                              Pre-arcing I2t value (A2s)
                                              63900
                                              Total I2t value (A2s)
                                              110000
                                              Homologations
                                              IEC
                                              Power loss (W)
                                              13

                                              Product available on request


                                              Catalog
                                              Datasheet

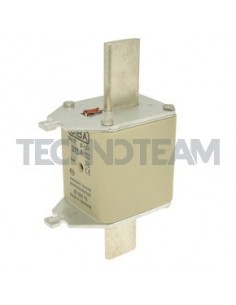

                                              Fuse NH3 TY-gG 500V 125A

                                                Fuse NH3 TY-gG 500V 125A

                                                2000516.125.0
                                                SIBA
                                                Available
                                                Class
                                                gG
                                                Rated current In (A)
                                                125
                                                Rated Voltage Un AC (V)
                                                500
                                                Rated break.capacity I1 AC (A)
                                                120000
                                                Voltage of total I2t test
                                                318
                                                Format
                                                NH knife contact
                                                Dimension
                                                NH3
                                                Pre-arcing I2t value (A2s)
                                                36200
                                                Total I2t value (A2s)
                                                62000
                                                Homologations
                                                IEC
                                                Power loss (W)
                                                9,6

                                                Product available on request


                                                Catalog
                                                Datasheet
                                                Fuse NH3 TY-gG 500V 100A

                                                  Fuse NH3 TY-gG 500V 100A

                                                  2000516.100.0
                                                  SIBA
                                                  Available
                                                  Class
                                                  gG
                                                  Rated current In (A)
                                                  100
                                                  Rated Voltage Un AC (V)
                                                  500
                                                  Rated break.capacity I1 AC (A)
                                                  120000
                                                  Voltage of total I2t test
                                                  318
                                                  Format
                                                  NH knife contact
                                                  Dimension
                                                  NH3
                                                  Pre-arcing I2t value (A2s)
                                                  26000
                                                  Total I2t value (A2s)
                                                  44600
                                                  Homologations
                                                  IEC
                                                  Power loss (W)
                                                  7,8

                                                  Product available on request


                                                  Catalog
                                                  Datasheet

                                                  Filter by

                                                  Manufacturer
                                                  more... less
                                                  Class
                                                  more... less
                                                  Rated Voltage Un AC (V)
                                                  32 1140
                                                  Rated Voltage Un DC (V)
                                                  400 1000
                                                  Rated current In (A)
                                                  0.16 1600
                                                  Format
                                                  more... less
                                                  Dimension
                                                  Homologations
                                                  more... less
                                                  Pre-arcing I2t value (A2s)
                                                  0.08 14000000
                                                  Total I2t value (A2s)
                                                  0.35 35000000
                                                  Low voltage fuses gG - aM
                                                  Product added to wishlist
                                                  Product added to compare.
