Split type current sensors

Current sensor split type AC,DC 500A (2x power supply +-12V)

    Current sensor split type AC,DC 500A (2x power supply +-12V)

    CTF-500DC.0.0
    MULTI
    Available
    Inside diameter (mm)
    35
    Housing
    Split type
    Dimensions (mm)
    60 x 40 x 80
    Operation temperature
    -10 C +75 C 80%RH
    Output
    4V
    Frequency f (kHz)
    10
    Applicable current AC (A)
    500
    Max capable current (A)
    750A AC / 520A DC
    Power Supply Voltage (V)
    12
    Accuracy
    1%
    Applicable current DC (A)
    500
    Type of output connection
    15cm 4-wires cable

    Product available on request


    Catalog
    Datasheet
    Current sensor split type AC 200A Current sensor split type AC 200A 2

      Current sensor split type AC 200A

      CTF-200A.0.0
      MULTI
      Available
      Inside diameter (mm)
      24
      Housing
      Split type
      Dimensions (mm)
      36 x 45 x 76
      Operation temperature
      -20 C +50 C 80%RH without condensation
      Output
      V - Please refer to the relative chart
      Frequency f (kHz)
      50
      Applicable current AC (A)
      200
      Max capable current (A)
      300
      Type of output connection
      Screws M2,6

      Product available on request


      Catalog
      Datasheet
      Current sensor split type-leakage AC 100A

        Current sensor split type-leakage AC 100A

        ZCT-22.0.0
        MULTI
        Available
        Inside diameter (mm)
        22
        Housing
        Split type
        Dimensions (mm)
        54 x 58 x 30
        Operation temperature
        0 C +60 C 80%RH without condensation
        Output
        V - Please refer to the relative chart
        Frequency f (kHz)
        0,500
        Applicable current AC (A)
        100
        Type of output connection
        4m 4-wires cable with forks

        Product available on request


        Catalog
        Datasheet
        Current sensor split type-leakage AC 50A

          Current sensor split type-leakage AC 50A

          ZCT-150T.0.0
          MULTI
          Available
          Inside diameter (mm)
          32 x 150
          Housing
          Split type
          Dimensions (mm)
          230 x 120 x 50
          Operation temperature
          -10 C +50 C 80%RH without condensation
          Output
          V - Please refer to the relative chart
          Frequency f (kHz)
          1
          Applicable current AC (A)
          50
          Max capable current (A)
          100

          Product available on request


          Catalog
          Datasheet
          Current sensor split type 60A

            Current sensor split type 60A

            DCT-17.0.0
            MULTI
            Available
            Inside diameter (mm)
            17
            Housing
            Split type
            Dimensions (mm)
            78 x 70,5 x 37,8
            Operation temperature
            0 C +40 C 80%RH without condensation
            Output
            2V
            Applicable current AC (A)
            60
            Max capable current (A)
            75
            Power Supply Voltage (V)
            5
            Accuracy
            0,5%
            Applicable current DC (A)
            60
            Type of output connection
            15cm 4-wires cable

            Product available on request


            Catalog
            Datasheet
            Current sensor split type AC 600A

              Current sensor split type AC 600A

              CTS-600.0.0
              MULTI
              Available
              Inside diameter (mm)
              35
              Housing
              Split type
              Dimensions (mm)
              127 x 40 x 95
              Operation temperature
              -10 C +50 C 80%RH without condensation
              Output
              5A
              Frequency f (kHz)
              0,060
              Applicable current AC (A)
              600
              Max capable current (A)
              720
              Type of output connection
              Screws M4

              Product available on request


              Catalog
              Datasheet
              Current sensor split type AC 400A

                Current sensor split type AC 400A

                CTS-400.0.0
                MULTI
                Available
                Inside diameter (mm)
                35
                Housing
                Split type
                Dimensions (mm)
                127 x 40 x 95
                Operation temperature
                -10 C +50 C 80%RH without condensation
                Output
                5A
                Frequency f (kHz)
                0,060
                Applicable current AC (A)
                400
                Max capable current (A)
                480
                Type of output connection
                Screws M4

                Product available on request


                Catalog
                Datasheet
                Current sensor split type AC 300A

                  Current sensor split type AC 300A

                  CTS-300.0.0
                  MULTI
                  Available
                  Inside diameter (mm)
                  35
                  Housing
                  Split type
                  Dimensions (mm)
                  127 x 40 x 95
                  Operation temperature
                  -10 C +50 C 80%RH without condensation
                  Output
                  5A
                  Frequency f (kHz)
                  0,060
                  Applicable current AC (A)
                  300
                  Max capable current (A)
                  360
                  Type of output connection
                  Screws M4

                  Product available on request


                  Catalog
                  Datasheet
                  Current sensor split type AC 200A

                    Current sensor split type AC 200A

                    CTS-200.0.0
                    MULTI
                    Available
                    Inside diameter (mm)
                    35
                    Housing
                    Split type
                    Dimensions (mm)
                    127 x 40 x 95
                    Operation temperature
                    -10 C +50 C 80%RH without condensation
                    Output
                    1A
                    Frequency f (kHz)
                    0,060
                    Applicable current AC (A)
                    200
                    Max capable current (A)
                    240
                    Type of output connection
                    Screws M4

                    Product available on request


                    Catalog
                    Datasheet
                    Current sensor split type AC 100A

                      Current sensor split type AC 100A

                      CTS-100.0.0
                      MULTI
                      Available
                      Inside diameter (mm)
                      35
                      Housing
                      Split type
                      Dimensions (mm)
                      127 x 40 x 95
                      Operation temperature
                      -10 C +50 C 80%RH without condensation
                      Output
                      1A
                      Frequency f (kHz)
                      0,060
                      Applicable current AC (A)
                      100
                      Max capable current (A)
                      120
                      Type of output connection
                      Screws M4

                      Product available on request


                      Catalog
                      Datasheet
                      Current sensor split type AC 40A Current sensor split type AC 40A 2

                        Current sensor split type AC 40A

                        CTF-7NF.0.0
                        MULTI
                        Available
                        Inside diameter (mm)
                        7
                        Housing
                        Split type
                        Dimensions (mm)
                        7 x 25 x 20
                        Operation temperature
                        -10 C +50 C 80%RH without condensation
                        Output
                        AC 10mA 1%/AC30A
                        Frequency f (kHz)
                        5
                        Applicable current AC (A)
                        30
                        Max capable current (A)
                        80
                        Type of output connection
                        2fili da 15cm

                        Product available on request


                        Catalog
                        Datasheet
                        Current sensor split type AC,DC 30A (power supply 5V)

                          Current sensor split type AC,DC 30A (power supply 5V)

                          CTF-6DC.0.0
                          MULTI
                          Available
                          Inside diameter (mm)
                          6
                          Housing
                          Split type
                          Dimensions (mm)
                          19,3 x 59 x 30,5
                          Operation temperature
                          -10 C +65 C 85%RH
                          Output
                          4,5V
                          Applicable current AC (A)
                          30
                          Max capable current (A)
                          33
                          Power Supply Voltage (V)
                          5
                          Accuracy
                          1%
                          Applicable current DC (A)
                          30
                          Type of output connection
                          2 conductors of 1,5m (shielded cable)

                          Product available on request


                          Catalog
                          Datasheet
                          Current sensor split type AC 600A Current sensor split type AC 600A 2

                            Current sensor split type AC 600A

                            CTF-600A.0.0
                            MULTI
                            Available
                            Inside diameter (mm)
                            35
                            Housing
                            Split type
                            Dimensions (mm)
                            60 x 40 x 80
                            Operation temperature
                            -20 C +50 C 80%RH without condensation
                            Output
                            V - Please refer to the relative chart
                            Frequency f (kHz)
                            10
                            Applicable current AC (A)
                            600
                            Max capable current (A)
                            800
                            Type of output connection
                            Screws M2,6

                            Product available on request


                            Catalog
                            Datasheet
                            Current sensor split type AC,DC 60A (power supply 5V)

                              Current sensor split type AC,DC 60A (power supply 5V)

                              CTF-60-10DC.0.0
                              MULTI
                              Available
                              Inside diameter (mm)
                              10
                              Housing
                              Split type
                              Dimensions (mm)
                              26 x 65 x 31
                              Operation temperature
                              -10 C +65 C 85%RH
                              Output
                              4,5V
                              Applicable current AC (A)
                              60
                              Max capable current (A)
                              66
                              Power Supply Voltage (V)
                              5
                              Accuracy
                              2%
                              Applicable current DC (A)
                              60
                              Type of output connection
                              2 conductors of 1,5m (shielded cable)

                              Product available on request


                              Catalog
                              Datasheet
                              Current sensor split type AC 30A

                                Current sensor split type AC 30A

                                CTF-6.0.0
                                MULTI
                                Available
                                Inside diameter (mm)
                                6
                                Housing
                                Split type
                                Dimensions (mm)
                                16 x 26,4 x 31
                                Operation temperature
                                -20 C +50 C 80%RH without condensation
                                Output
                                AC 10mA 1%/30A
                                Frequency f (kHz)
                                5
                                Applicable current AC (A)
                                30
                                Max capable current (A)
                                40
                                Type of output connection
                                2fili da 15cm

                                Product available on request


                                Catalog
                                Datasheet
                                Current sensor split type AC 5A Current sensor split type AC 5A 2

                                  Current sensor split type AC 5A

                                  CTF-5A.0.0
                                  MULTI
                                  Available
                                  Inside diameter (mm)
                                  10
                                  Housing
                                  Split type
                                  Dimensions (mm)
                                  25 x 33 x 41
                                  Operation temperature
                                  -20 C +50 C 80%RH without condensation
                                  Output
                                  V - Please refer to the relative chart
                                  Frequency f (kHz)
                                  50
                                  Applicable current AC (A)
                                  5
                                  Max capable current (A)
                                  10
                                  Type of output connection
                                  Screws M2,6

                                  Product available on request


                                  Catalog
                                  Datasheet

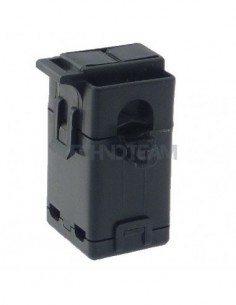

                                  Current sensor split type AC,DC 50A (power supply 48V) Current sensor split type AC,DC 50A (power supply 48V) 2

                                    Current sensor split type AC,DC 50A (power supply 48V)

                                    CTF-50DC-U48.0.0
                                    MULTI
                                    Available
                                    Inside diameter (mm)
                                    16
                                    Housing
                                    Split type
                                    Dimensions (mm)
                                    31 x 30 x 54
                                    Operation temperature
                                    -10 C +75 C 80%RH
                                    Output
                                    4V
                                    Frequency f (kHz)
                                    10
                                    Applicable current AC (A)
                                    50
                                    Max capable current (A)
                                    75
                                    Power Supply Voltage (V)
                                    48
                                    Accuracy
                                    1%
                                    Applicable current DC (A)
                                    50
                                    Type of output connection
                                    2m 4-wires cable

                                    Product available on request


                                    Catalog
                                    Datasheet
