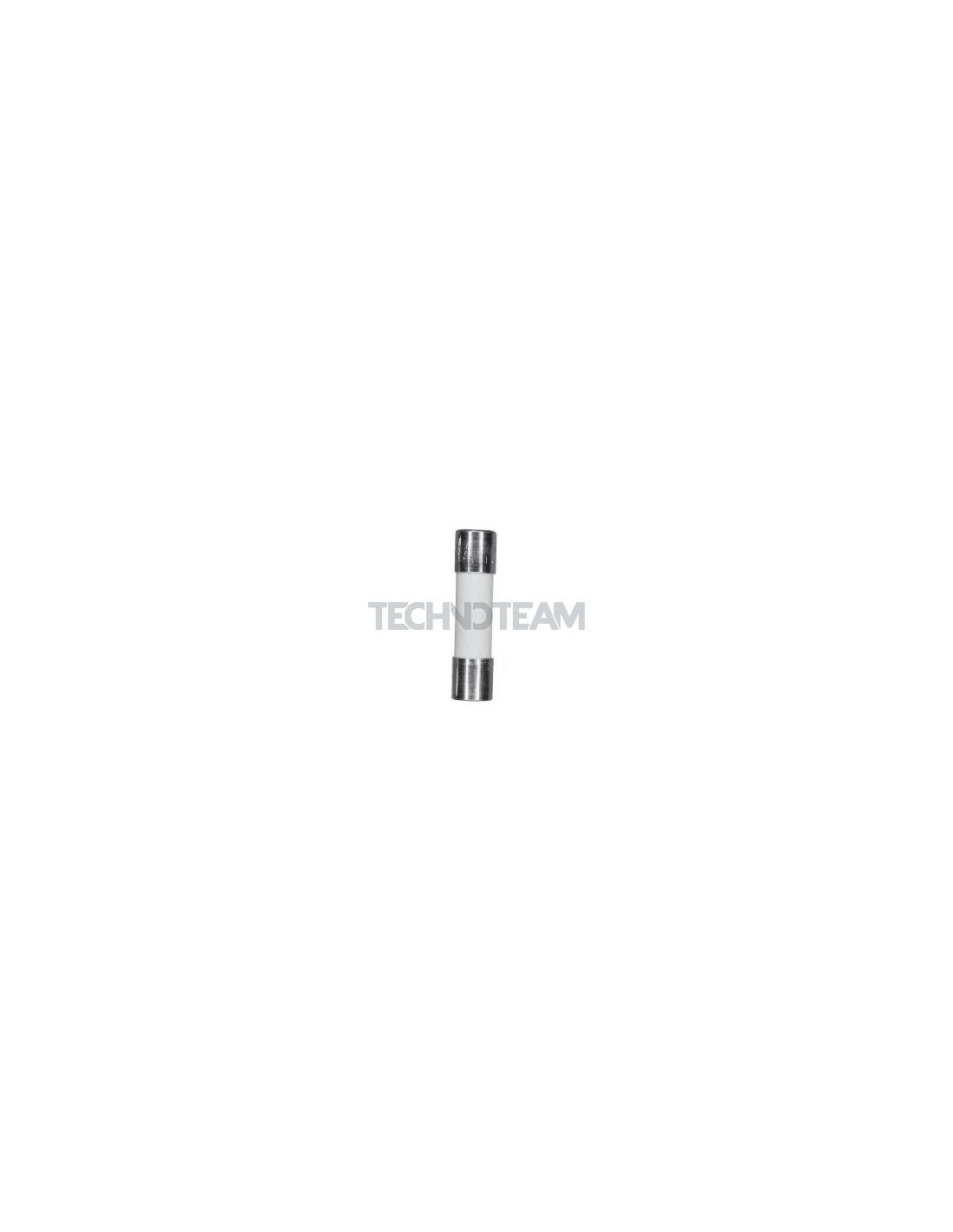

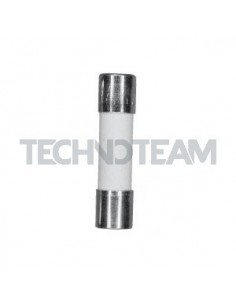

Fuse 5x20 T 250V ceramic UL 2,5A 7000765.2,5

    Fuse 5x20 T 250V ceramic UL 2,5A 7000765.2,5

    SIBA
    179200.2,5.0
    €0.90
    VAT excl.

    Product Request:

    Fuse 5x20 T 250V ceramic UL 2,5A 7000765.2,5

    Fuse 5x20 T 250V ceramic UL 2,5A 7000765.2,5

    do not include special characters

    * Required fields



    This product is only sold in boxes of 100 pcs

    This product has a minimum quantity of 100 and sold by 100

    Download

    Catalog Datasheet
    Class
    T
    Rated current In (A)
    2,5
    Rated Voltage Un AC (V)
    250
    Rated break.capacity I1 AC (A)
    1500
    Voltage of total I2t test
    250
    Weight (g)
    2
    Format
    Cylindrical
    Dimension
    5x20mm
    Pre-arcing I2t value (A2s)
    10
    Homologations
    IEC & UL
    Power loss (W)
    0,9
    Voltage drop (mV)
    110

    Accessories

    Fuse holder 5x20 with screw for panel
      Available
      for Cylindrical fuses

      Fuse holder 5x20 with screw for panel

      199030.0.0
      Rated current In (A)
      10
      Rated Voltage Un AC (V)
      250
      Power loss (W)
      2,5
      Fuses format
      Cylindrical
      Fuses dimension
      5x20mm

      Product available on request

      Fuse holder 5x20 with screw for panel
        Available
        for Cylindrical fuses

        Fuse holder 5x20 with screw for panel

        199035.0.0
        Rated current In (A)
        10
        Rated Voltage Un AC (V)
        250
        Homologations
        IEC & UL
        Power loss (W)
        2
        Fuses format
        Cylindrical
        Fuses dimension
        5x20mm

        Product available on request

        Fuse holder bayonet horizontal 5x20 for PCB
          Available
          for Cylindrical fuses

          Fuse holder bayonet horizontal 5x20 for PCB

          199050.0.0
          Rated current In (A)
          10
          Rated Voltage Un AC (V)
          250
          Power loss (W)
          2,5
          Fuses format
          Cylindrical
          Fuses dimension
          5x20mm

          Product available on request

          Fuse holder 5x20 screw fixing for PCB
            Available
            for Cylindrical fuses

            Fuse holder 5x20 screw fixing for PCB

            199045.0.0
            Rated current In (A)
            10
            Rated Voltage Un AC (V)
            250
            Homologations
            IEC & UL
            Power loss (W)
            2,5
            Fuses format
            Cylindrical
            Fuses dimension
            5x20mm

            Product available on request

            Fuse holder 5x20 open for PCB with curved pins
              Available
              for Cylindrical fuses

              Fuse holder 5x20 open for PCB with curved pins

              199015A.0.0
              Rated current In (A)
              10
              Rated Voltage Un AC (V)
              250
              Homologations
              IEC & UL
              Power loss (W)
              1,6
              Fuses format
              Cylindrical
              Fuses dimension
              5x20mm

              Product available on request

              Fuse holder 5x40 for PCB
                Available
                for Cylindrical fuses

                Fuse holder 5x40 for PCB

                199011.0.0
                Rated current In (A)
                6,3
                Rated Voltage Un AC (V)
                250
                Fuses format
                Cylindrical
                Fuses dimension
                5x20mm

                Product available on request

                Fuse holder 5x20 with screw for panel
                  Available
                  for Cylindrical fuses

                  Fuse holder 5x20 with screw for panel

                  199040.0.0
                  Rated current In (A)
                  10
                  Rated Voltage Un AC (V)
                  250
                  Homologations
                  IEC & UL
                  Power loss (W)
                  2,5
                  Fuses format
                  Cylindrical
                  Fuses dimension
                  5x20mm

                  Product available on request

                  Fuse holder 5x20 with screw for panel
                    Available
                    for Cylindrical fuses

                    Fuse holder 5x20 with screw for panel

                    199055.0.0
                    Rated current In (A)
                    10
                    Rated Voltage Un AC (V)
                    250
                    Homologations
                    IEC & UL
                    Power loss (W)
                    2,5
                    Fuses format
                    Cylindrical
                    Fuses dimension
                    5x20mm

                    Product available on request

                    Fuse holder 5x20 for panel
                      Available
                      for Cylindrical fuses

                      Fuse holder 5x20 for panel

                      7100129.0.0
                      Rated current In (A)
                      250
                      Rated Voltage Un AC (V)
                      10
                      Homologations
                      UL
                      Power loss (W)
                      2,5
                      Fuses format
                      Cylindrical
                      Fuses dimension
                      5x20mm

                      Product available on request

                      Fuse holder verticale 5x20 for PCB
                        Available
                        for Cylindrical fuses

                        Fuse holder verticale 5x20 for PCB

                        7100128.0.0
                        Rated current In (A)
                        10
                        Rated Voltage Un AC (V)
                        250
                        Homologations
                        UL
                        Power loss (W)
                        2,5
                        Fuses format
                        Cylindrical
                        Fuses dimension
                        5x20mm

                        Product available on request

                        Fuse holder horizontal 5x20 for PCB
                          Available
                          for Cylindrical fuses

                          Fuse holder horizontal 5x20 for PCB

                          7100127.0.0
                          Rated current In (A)
                          10
                          Rated Voltage Un AC (V)
                          250
                          Homologations
                          UL
                          Power loss (W)
                          2,5
                          Fuses format
                          Cylindrical
                          Fuses dimension
                          5x20mm

                          Product available on request

                          Fuse holder 5x20 for PCB
                            Available
                            for Cylindrical fuses

                            Fuse holder 5x20 for PCB

                            199018.0.0
                            Rated current In (A)
                            6,3
                            Rated Voltage Un AC (V)
                            250
                            Homologations
                            IEC & UL
                            Power loss (W)
                            1,6
                            Fuses format
                            Cylindrical
                            Fuses dimension
                            5x20mm
                            €0.43
                            Fuse holder Baionetta 5x20 da pannello
                              Available
                              for Cylindrical fuses

                              Fuse holder Baionetta 5x20 da pannello

                              199090.0.0
                              Rated current In (A)
                              6,3
                              Rated Voltage Un AC (V)
                              250
                              Homologations
                              IEC & UL
                              Fuses format
                              Cylindrical
                              Fuses dimension
                              5x20mm

                              Product available on request

                              Fuse holder 5x20 500V 10A
                                Available
                                for Cylindrical fuses

                                Fuse holder 5x20 500V 10A

                                199511.0.0
                                Rated current In (A)
                                16
                                Rated Voltage Un AC (V)
                                600
                                Homologations
                                IEC & UL
                                Fuses format
                                Cylindrical
                                Fuses dimension
                                5x20mm

                                Product available on request

                                Fuse holder 5x20 open for PCB
                                  Available
                                  for Cylindrical fuses

                                  Fuse holder 5x20 open for PCB

                                  199015.0.0
                                  Rated current In (A)
                                  10
                                  Rated Voltage Un AC (V)
                                  250
                                  Homologations
                                  IEC & UL
                                  Power loss (W)
                                  1,3
                                  Fuses format
                                  Cylindrical
                                  Fuses dimension
                                  5x20mm
                                  €0.26
                                  Fuse holder 5x20 with screw for panel
                                    Available
                                    for Cylindrical fuses

                                    Fuse holder 5x20 with screw for panel

                                    199070.0.0
                                    Rated current In (A)
                                    10
                                    Rated Voltage Un AC (V)
                                    250
                                    Homologations
                                    IEC & UL
                                    Power loss (W)
                                    2,5
                                    Fuses format
                                    Cylindrical
                                    Fuses dimension
                                    5x20mm

                                    Product available on request
