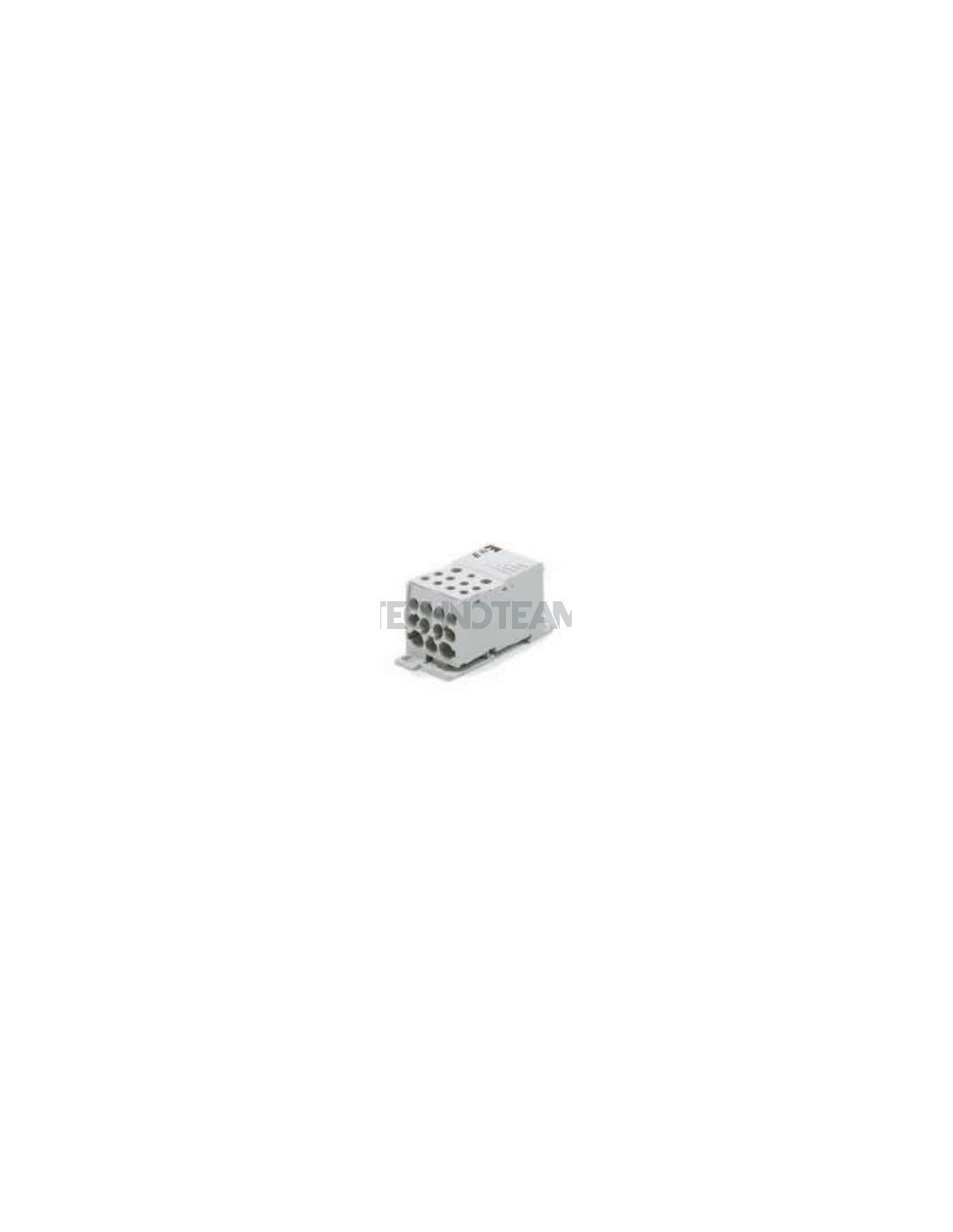

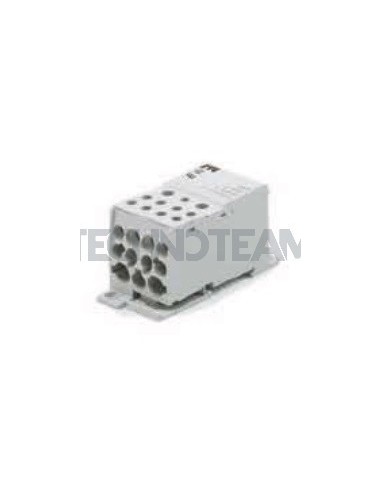

Block 1pole IN:1x(185mm2) OUT:2x(35mm2)5x(16mm2)4x(10mm2)Al

    Block 1pole IN:1x(185mm2) OUT:2x(35mm2)5x(16mm2)4x(10mm2)Al

    FTG
    38019AL.0.0
    Product available on request

    Product Request:

    Block 1pole IN:1x(185mm2) OUT:2x(35mm2)5x(16mm2)4x(10mm2)Al

    Block 1pole IN:1x(185mm2) OUT:2x(35mm2)5x(16mm2)4x(10mm2)Al

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    IEC: 1000VAC / 1500VDC 300A
    Distribution block for aluminium wiring
    Rated Voltage Un AC (V)
    1000
    Weight (g)
    430
    Rated Voltage Un DC (V)
    1500
    Rated current (A)
    300
    Number of phase
    1
    Color
    Grey
    Dimensions (mm)
    95,5 x 44,5 x 49
    Load side connections
    11
    Line side connections
    1
