Current sensor split type AC,DC 10A (2x power supply +-12V) Reference CTF-10DC.0.0 Manufacturer: MULTI AvailableInside diameter (mm)16HousingSplit typeDimensions (mm)31 x 30 x 54Operation temperature-10 C +75 C 80%RHOutput4VFrequency f (kHz)10Applicable current AC (A)10Power Supply Voltage (V)12Accuracy1%Applicable current DC (A)10Type of output connection15cm 4-wires cableProduct available on request Catalog Datasheet
Current sensor split type AC 200A Reference CTF-200A.0.0 Manufacturer: MULTI AvailableInside diameter (mm)24HousingSplit typeDimensions (mm)36 x 45 x 76Operation temperature-20 C +50 C 80%RH without condensationOutputV - Please refer to the relative chartFrequency f (kHz)50Applicable current AC (A)200Max capable current (A)300Type of output connectionScrews M2,6Product available on request Catalog Datasheet
Current sensor split type AC,DC 20A (2x power supply +-12V) Reference CTF-20DC.0.0 Manufacturer: MULTI AvailableInside diameter (mm)16HousingSplit typeDimensions (mm)31 x 30 x 54Operation temperature-10 C +75 C 80%RHOutput4VFrequency f (kHz)10Applicable current AC (A)20Power Supply Voltage (V)12Accuracy1%Applicable current DC (A)20Type of output connection15cm 4-wires cableProduct available on request Catalog Datasheet
Current sensor split type AC,DC 500A (2x power supply +-12V) Reference CTF-500DC.0.0 Manufacturer: MULTI AvailableInside diameter (mm)35HousingSplit typeDimensions (mm)60 x 40 x 80Operation temperature-10 C +75 C 80%RHOutput4VFrequency f (kHz)10Applicable current AC (A)500Max capable current (A)750A AC / 520A DCPower Supply Voltage (V)12Accuracy1%Applicable current DC (A)500Type of output connection15cm 4-wires cableProduct available on request Catalog Datasheet
Current sensor through hole type DC 200mA Reference DCZCT-20CDHL.0.0 Manufacturer: MULTI AvailableInside diameter (mm)20HousingThrough hole type for PCBDimensions (mm)42 x 56 x 17Operation temperature-20 C +80 C 85%RH without condensationOutput200mVDCMax capable current (A)10Power Supply Voltage (V)5Accuracy1%Applicable current DC (A)0,200Type of output connectionPin 3,6mmProduct available on request Catalog Datasheet
Digital harmonics clamp tester AC 0.1mA-300A Reference HWT-1000.0.0 Manufacturer: MULTI AvailableRated Voltage Un AC (V)500TypeDigitalDimensions (mm)200 100 81Operation temperature5 C +35 C 80%RH without condensationApplicable current AC (A)300Power Supply Voltage (V)Ni-Cad batteries or AC adapterProduct available on request Catalog Datasheet
Misuratore resistenza di terra digitale 0.1ohm-200ohm Reference MET-1.0.0 Manufacturer: MULTI AvailableResistance (ohm)200TypeDigitalInside diameter (mm)34Dimensions (mm)190 140 42(acquisitore) 90,5 165 38(sensori)Operation temperature0 C +40 C 80%RH without condensationFrequency f (kHz)400Applicable current AC (A)10Power Supply Voltage (V)1,2V Ni-Cad x 5Leakage current AC (mA)0,1Product available on request Catalog Datasheet
Misuratore resistenza di terra digitale 0.1ohm-300ohm Reference MET-2.0.0 Manufacturer: MULTI AvailableResistance (ohm)300TypeDigitalInside diameter (mm)34Dimensions (mm)190 140 42(acquisitore) 90,5 165 38(sensori)Operation temperature0 C +40 C 80%RH without condensationFrequency f (kHz)200Applicable current AC (A)20Power Supply Voltage (V)1,2V Ni-Cad x 5Leakage current AC (mA)0,1Product available on request Catalog Datasheet
Current sensor through hole type AC for PCB 30A Reference PCT-6S-50.0.0 Manufacturer: MULTI AvailableInside diameter (mm)7HousingThrough hole type for PCBDimensions (mm)24 x 25 x 11Operation temperature-10 C +50 CApplicable current AC (A)30Max capable current (A)50Type of output connectionPin 4mmProduct available on request Catalog

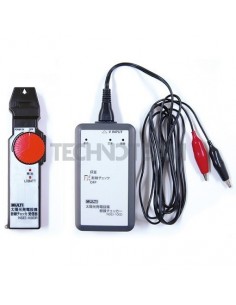

Cable locator for PV systems up to 440VDC Reference NSEI-100D.0.0 Manufacturer: MULTI AvailableHomologationsIECRated Voltage Un DC (V)440TypeOptical/acoustic signalingFrequency f (kHz)5Product available on request Catalog Datasheet
Digital insulation resistance tester 0.01-20Mohm 600VDC Reference MSEI-100C.0.0 Manufacturer: MULTI AvailableHomologationsIECRated Voltage Un DC (V)600TypeDigitalResistance (Mohm)20Product available on request Catalog Datasheet

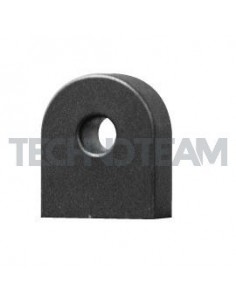

Current sensor through hole type AC 30A Reference CTA-30A.0.0 Manufacturer: MULTI AvailableInside diameter (mm)6HousingThrough hole typeDimensions (mm)21 x 25 x 10Frequency f (kHz)0,060Applicable current AC (A)30Max capable current (A)50Product available on request Catalog Datasheet

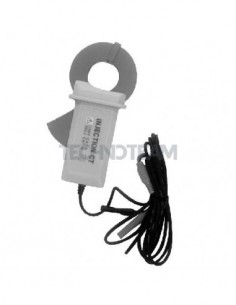

Clamp type current sensor AC 100mA 200kHz Reference IJN-34.0.0 Manufacturer: MULTI AvailableInside diameter (mm)34HousingSplit typeDimensions (mm)91 x 165 x 38Operation temperature80%RH without condensationOutputV - Please refer to the relative chartFrequency f (kHz)200Applicable current AC (A)0,100Product available on request Catalog Datasheet
Clamp type current sensor AC 20A 200kHz Reference HFCT-34.0.0 Manufacturer: MULTI AvailableInside diameter (mm)34HousingSplit typeDimensions (mm)91 x 165 x 38Operation temperature80%RH without condensationOutputV - Please refer to the relative chartFrequency f (kHz)200Applicable current AC (A)20Product available on request Catalog Datasheet
Clamp type current sensor AC 50A Reference ACT-50H.0.0 Manufacturer: MULTI AvailableInside diameter (mm)23HousingSplit typeDimensions (mm)48 x 146 x 20Operation temperature0 C +60 C 80%RH without condensationOutput5VDC f.s. (0,1V/A) 2%Frequency f (kHz)0,060Applicable current AC (A)50Product available on request Catalog Datasheet
Clamp type current sensor AC 5A Reference ACT-5H.0.0 Manufacturer: MULTI AvailableInside diameter (mm)23HousingSplit typeDimensions (mm)48 x 146 x 20Operation temperature0 C +60 C 80%RH without condensationOutput5VDC f.s. (0,1V/A) 2%Frequency f (kHz)0,060Applicable current AC (A)5Product available on request Catalog Datasheet
Device for MOV metal oxide varistor HV test Reference ALCL-40.0.0 Manufacturer: MULTI AvailableTypeDigitalInside diameter (mm)37Dimensions (mm)95 x 160 x 34(acquisitore) 135 x 166 x 61(sensore)Operation temperature0 C +40 C 80%RH without condensationFrequency f (kHz)0,06Applicable current AC (A)0,03Power Supply Voltage (V)9V (6LR61) 1Leakage current AC (mA)0,0001Product available on request Catalog Datasheet
Current sensor split type-leakage AC 0,001mA-50A Reference ALCL-40D.0.0 Manufacturer: MULTI AvailableInside diameter (mm)37HousingSplit typeDimensions (mm)135 x 166 x 61Operation temperature-10 C +50 C 80%RH without condensationOutputAC 1,66mV 2% (20A/200ohm)Frequency f (kHz)0,065Applicable current AC (A)50Max capable current (A)60Product available on request Catalog Datasheet
Device for MOV metal oxide varistor HV test Reference ALCL-40L.0.0 Manufacturer: MULTI AvailableTypeDigitalInside diameter (mm)40Dimensions (mm)160 950/3680 84Frequency f (kHz)0,060Applicable current AC (A)0,03Power Supply Voltage (V)AA 4Leakage current AC (mA)0,0001Product available on request Catalog Datasheet

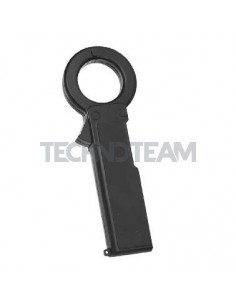

Clamp type current sensor AC 200A Reference CT-23.0.0 Manufacturer: MULTI AvailableInside diameter (mm)23HousingSplit typeDimensions (mm)48 x 146 x 20Operation temperature0 C +60 C 80%RH without condensationOutputV - Please refer to the relative chartFrequency f (kHz)0,500Applicable current AC (A)200Type of output connection20cm 2-wires cableProduct available on request Catalog Datasheet
Clamp type current sensor AC 200A Reference CT-23S.0.0 Manufacturer: MULTI AvailableInside diameter (mm)23HousingSplit typeDimensions (mm)48 x 105 x 20Operation temperature0 C +60 C 80%RH without condensationOutputV - Please refer to the relative chartFrequency f (kHz)0,500Applicable current AC (A)200Type of output connection20cm 2-wires cableProduct available on request Catalog Datasheet

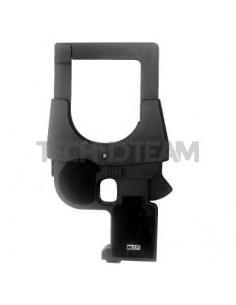

Clamp type current sensor AC 3000A Reference CT-3000.0.0 Manufacturer: MULTI AvailableInside diameter (mm)108 x 128HousingSplit typeDimensions (mm)194 x 342 x 52Operation temperature0 C +60 C 80%RH without condensationOutputV - Please refer to the relative chartFrequency f (kHz)0,500Applicable current AC (A)3000Product available on request Catalog Datasheet
Current sensor through hole type AC 80A Reference CT-30AR.0.0 Manufacturer: MULTI AvailableHousingThrough hole typeDimensions (mm)9,93 x 22 x 8,8Operation temperature-40 C +100 COutput0,297VFrequency f (kHz)0,060Applicable current AC (A)30Max capable current (A)90Type of output connection2fili da 80mmProduct available on request Catalog Datasheet
Clamp type current sensor AC 200A Reference CT-33.0.0 Manufacturer: MULTI AvailableInside diameter (mm)33HousingSplit typeDimensions (mm)54 x 155 x 20Operation temperature0 C +60 C 80%RH without condensationOutputV - Please refer to the relative chartFrequency f (kHz)0,500Applicable current AC (A)200Type of output connection20cm 2-wires cableProduct available on request Catalog Datasheet
