List of products by brand SIBA

Fuse SQB2 aR 1000V/1200VDC with indicator 250A

    Fuse SQB2 aR 1000V/1200VDC with indicator 250A

    9020326.250.0
    SIBA
    Available
    Class
    aR
    Rated current In (A)
    250
    Voltage of total I2t test
    1200
    Format
    Screw fixing
    Dimension
    SQB2
    Pre-arcing I2t value (A2s)
    8200
    Total I2t value (A2s)
    73000
    Homologations
    IEC
    Power loss (W)
    101
    Rated Voltage Un DC (V)
    900
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    15

    Product available on request


    Catalog
    Datasheet
    Fuse SQB2 aR 1000V/1200VDC with indicator 315A

      Fuse SQB2 aR 1000V/1200VDC with indicator 315A

      9020326.315.0
      SIBA
      Available
      Class
      aR
      Rated current In (A)
      315
      Voltage of total I2t test
      1200
      Format
      Screw fixing
      Dimension
      SQB2
      Pre-arcing I2t value (A2s)
      15000
      Total I2t value (A2s)
      133000
      Homologations
      IEC
      Power loss (W)
      114
      Rated Voltage Un DC (V)
      900
      Rated break.capacity I1 DC (A)
      30000
      Time costant L/R (ms)
      15

      Product available on request


      Catalog
      Datasheet
      Fuse SQB2 aR 1000V/1200VDC with indicator 350A

        Fuse SQB2 aR 1000V/1200VDC with indicator 350A

        9020326.350.0
        SIBA
        Available
        Class
        aR
        Rated current In (A)
        350
        Voltage of total I2t test
        1200
        Format
        Screw fixing
        Dimension
        SQB2
        Pre-arcing I2t value (A2s)
        18500
        Total I2t value (A2s)
        106000
        Homologations
        IEC
        Power loss (W)
        128
        Rated Voltage Un DC (V)
        900
        Rated break.capacity I1 DC (A)
        30000
        Time costant L/R (ms)
        15

        Product available on request


        Catalog
        Datasheet
        Fuse SQB2 aR 1000V/1200VDC with indicator 400A

          Fuse SQB2 aR 1000V/1200VDC with indicator 400A

          9020326.400.0
          SIBA
          Available
          Class
          aR
          Rated current In (A)
          400
          Voltage of total I2t test
          1200
          Format
          Screw fixing
          Dimension
          SQB2
          Pre-arcing I2t value (A2s)
          26500
          Total I2t value (A2s)
          151000
          Homologations
          IEC
          Power loss (W)
          137
          Rated Voltage Un DC (V)
          900
          Rated break.capacity I1 DC (A)
          30000
          Time costant L/R (ms)
          15

          Product available on request


          Catalog
          Datasheet
          Fuse SQB2 aR 1500VDC 200A

            Fuse SQB2 aR 1500VDC 200A

            9020338.200.0
            SIBA
            Available
            Class
            aR
            Pre-arcing I2t value (A2s)
            4000
            Total I2t value (A2s)
            36500
            Homologations
            UL
            Power loss (W)
            86
            Rated break.capacity I1 DC (A)
            170

            Product available on request


            Datasheet
            Fuse SQB2 aR 1500VDC 350A

              Fuse SQB2 aR 1500VDC 350A

              9020338.350.0
              SIBA
              Available
              Class
              aR
              Pre-arcing I2t value (A2s)
              18500
              Total I2t value (A2s)
              167000
              Homologations
              UL
              Power loss (W)
              135
              Rated break.capacity I1 DC (A)
              170

              Product available on request


              Datasheet
              Fuse SQB2 aR 1500VDC 400A

                Fuse SQB2 aR 1500VDC 400A

                9020338.400.0
                SIBA
                Available
                Class
                aR
                Pre-arcing I2t value (A2s)
                26600
                Total I2t value (A2s)
                242500
                Homologations
                UL
                Power loss (W)
                152
                Rated break.capacity I1 DC (A)
                170

                Product available on request


                Datasheet
                Fuse 2xSQB2 aR 3600V/4200VDC without indicator 400A

                  Fuse 2xSQB2 aR 3600V/4200VDC without indicator 400A

                  9021025.400.0
                  SIBA
                  Available
                  Class
                  aR
                  Rated current In (A)
                  400
                  Voltage of total I2t test
                  4200
                  Format
                  Screw fixing
                  Dimension
                  2x SQB2
                  Pre-arcing I2t value (A2s)
                  47200
                  Total I2t value (A2s)
                  392000
                  Homologations
                  IEC
                  Power loss (W)
                  305
                  Rated Voltage Un DC (V)
                  3600
                  Rated break.capacity I1 DC (A)
                  30000
                  Time costant L/R (ms)
                  15

                  Product available on request


                  Catalog
                  Datasheet
                  Fuse 2xSQB2 aR 3600V/4200VDC without indicator 500A

                    Fuse 2xSQB2 aR 3600V/4200VDC without indicator 500A

                    9021025.500.0
                    SIBA
                    Available
                    Class
                    aR
                    Rated current In (A)
                    500
                    Voltage of total I2t test
                    4200
                    Format
                    Screw fixing
                    Dimension
                    2x SQB2
                    Pre-arcing I2t value (A2s)
                    84000
                    Total I2t value (A2s)
                    700000
                    Homologations
                    IEC
                    Power loss (W)
                    348
                    Rated Voltage Un DC (V)
                    3600
                    Rated break.capacity I1 DC (A)
                    30000
                    Time costant L/R (ms)
                    15

                    Product available on request


                    Catalog
                    Datasheet
                    Fuse 2xSQB2 aR 3600V/4200VDC without indicator 630A

                      Fuse 2xSQB2 aR 3600V/4200VDC without indicator 630A

                      9021025.630.0
                      SIBA
                      Available
                      Class
                      aR
                      Rated current In (A)
                      630
                      Voltage of total I2t test
                      4200
                      Format
                      Screw fixing
                      Dimension
                      2x SQB2
                      Pre-arcing I2t value (A2s)
                      132000
                      Total I2t value (A2s)
                      1092000
                      Homologations
                      IEC
                      Power loss (W)
                      465
                      Rated Voltage Un DC (V)
                      3600
                      Rated break.capacity I1 DC (A)
                      30000
                      Time costant L/R (ms)
                      15

                      Product available on request


                      Catalog
                      Datasheet

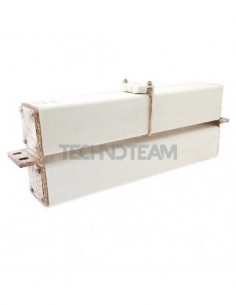

                      Fuse 2xSQB2 aR 3600V/4200VDC with indicator 400A

                        Fuse 2xSQB2 aR 3600V/4200VDC with indicator 400A

                        9021026.400.0
                        SIBA
                        Available
                        Class
                        aR
                        Rated current In (A)
                        400
                        Voltage of total I2t test
                        4200
                        Format
                        Screw fixing
                        Dimension
                        2x SQB2
                        Pre-arcing I2t value (A2s)
                        47200
                        Total I2t value (A2s)
                        392000
                        Homologations
                        IEC
                        Power loss (W)
                        305
                        Rated Voltage Un DC (V)
                        3600
                        Rated break.capacity I1 DC (A)
                        30000
                        Time costant L/R (ms)
                        15

                        Product available on request


                        Catalog
                        Datasheet
                        Fuse 2xSQB2 aR 3600V/4200VDC with indicator 500A

                          Fuse 2xSQB2 aR 3600V/4200VDC with indicator 500A

                          9021026.500.0
                          SIBA
                          Available
                          Class
                          aR
                          Rated current In (A)
                          500
                          Voltage of total I2t test
                          4200
                          Format
                          Screw fixing
                          Dimension
                          2x SQB2
                          Pre-arcing I2t value (A2s)
                          84000
                          Total I2t value (A2s)
                          700000
                          Homologations
                          IEC
                          Power loss (W)
                          348
                          Rated Voltage Un DC (V)
                          3600
                          Rated break.capacity I1 DC (A)
                          30000
                          Time costant L/R (ms)
                          15

                          Product available on request


                          Catalog
                          Datasheet
                          Fuse 2xSQB2 aR 3600V/4200VDC with indicator 630A

                            Fuse 2xSQB2 aR 3600V/4200VDC with indicator 630A

                            9021026.630.0
                            SIBA
                            Available
                            Class
                            aR
                            Rated current In (A)
                            630
                            Voltage of total I2t test
                            4200
                            Format
                            Screw fixing
                            Dimension
                            2x SQB2
                            Pre-arcing I2t value (A2s)
                            132000
                            Total I2t value (A2s)
                            1092000
                            Homologations
                            IEC
                            Power loss (W)
                            465
                            Rated Voltage Un DC (V)
                            3600
                            Rated break.capacity I1 DC (A)
                            30000
                            Time costant L/R (ms)
                            15

                            Product available on request


                            Catalog
                            Datasheet
                            Fuse 2xSQB2 aR 1800V/2400VDC without indicator 800A

                              Fuse 2xSQB2 aR 1800V/2400VDC without indicator 800A

                              9021125.800.0
                              SIBA
                              Available
                              Class
                              aR
                              Rated current In (A)
                              800
                              Voltage of total I2t test
                              2400
                              Format
                              Screw fixing
                              Dimension
                              2x SQB2
                              Pre-arcing I2t value (A2s)
                              221600
                              Total I2t value (A2s)
                              1604000
                              Homologations
                              IEC
                              Power loss (W)
                              378
                              Rated Voltage Un DC (V)
                              1800
                              Rated break.capacity I1 DC (A)
                              30000
                              Time costant L/R (ms)
                              15

                              Product available on request


                              Catalog
                              Datasheet
                              Fuse 2xSQB2 aR 1800V/2400VDC with indicator 500A

                                Fuse 2xSQB2 aR 1800V/2400VDC with indicator 500A

                                9021126.500.0
                                SIBA
                                Available
                                Class
                                aR
                                Rated current In (A)
                                500
                                Voltage of total I2t test
                                2400
                                Format
                                Screw fixing
                                Dimension
                                2x SQB2
                                Pre-arcing I2t value (A2s)
                                64400
                                Total I2t value (A2s)
                                524000
                                Homologations
                                IEC
                                Power loss (W)
                                273
                                Rated Voltage Un DC (V)
                                1800
                                Rated break.capacity I1 DC (A)
                                30000
                                Time costant L/R (ms)
                                15

                                Product available on request


                                Catalog
                                Datasheet
                                Fuse 2xSQB2 aR 1800V/2400VDC with indicator 630A

                                  Fuse 2xSQB2 aR 1800V/2400VDC with indicator 630A

                                  9021126.630.0
                                  SIBA
                                  Available
                                  Class
                                  aR
                                  Rated current In (A)
                                  630
                                  Voltage of total I2t test
                                  2400
                                  Format
                                  Screw fixing
                                  Dimension
                                  2x SQB2
                                  Pre-arcing I2t value (A2s)
                                  160400
                                  Total I2t value (A2s)
                                  864000
                                  Homologations
                                  IEC
                                  Power loss (W)
                                  368
                                  Rated Voltage Un DC (V)
                                  1800
                                  Rated break.capacity I1 DC (A)
                                  30000
                                  Time costant L/R (ms)
                                  15

                                  Product available on request


                                  Catalog
                                  Datasheet
                                  Fuse 2xSQB2 aR 1800V/2400VDC with indicator 700A

                                    Fuse 2xSQB2 aR 1800V/2400VDC with indicator 700A

                                    9021126.700.0
                                    SIBA
                                    Available
                                    Class
                                    aR
                                    Rated current In (A)
                                    700
                                    Voltage of total I2t test
                                    2400
                                    Format
                                    Screw fixing
                                    Dimension
                                    2x SQB2
                                    Pre-arcing I2t value (A2s)
                                    158800
                                    Total I2t value (A2s)
                                    1152000
                                    Homologations
                                    IEC
                                    Power loss (W)
                                    372
                                    Rated Voltage Un DC (V)
                                    1800
                                    Rated break.capacity I1 DC (A)
                                    30000
                                    Time costant L/R (ms)
                                    15

                                    Product available on request


                                    Catalog
                                    Datasheet
                                    Fuse 2xSQB2 aR 1800V/2400VDC with indicator 800A

                                      Fuse 2xSQB2 aR 1800V/2400VDC with indicator 800A

                                      9021126.800.0
                                      SIBA
                                      Available
                                      Class
                                      aR
                                      Rated current In (A)
                                      800
                                      Voltage of total I2t test
                                      2400
                                      Format
                                      Screw fixing
                                      Dimension
                                      2x SQB2
                                      Pre-arcing I2t value (A2s)
                                      221600
                                      Total I2t value (A2s)
                                      1604000
                                      Homologations
                                      IEC
                                      Power loss (W)
                                      378
                                      Rated Voltage Un DC (V)
                                      1800
                                      Rated break.capacity I1 DC (A)
                                      30000
                                      Time costant L/R (ms)
                                      15

                                      Product available on request


                                      Catalog
                                      Datasheet
                                      Fuse 2xSQB2 aR 1700V/2000VDC with indicator 630A

                                        Fuse 2xSQB2 aR 1700V/2000VDC with indicator 630A

                                        9021226.630.0
                                        SIBA
                                        Available
                                        Class
                                        aR
                                        Rated current In (A)
                                        630
                                        Voltage of total I2t test
                                        2000
                                        Format
                                        Screw fixing
                                        Dimension
                                        2x SQB2
                                        Pre-arcing I2t value (A2s)
                                        81200
                                        Total I2t value (A2s)
                                        680000
                                        Homologations
                                        IEC
                                        Power loss (W)
                                        319
                                        Rated Voltage Un DC (V)
                                        2000
                                        Rated break.capacity I1 DC (A)
                                        30000
                                        Time costant L/R (ms)
                                        15

                                        Product available on request


                                        Catalog
                                        Datasheet
                                        Fuse 2xSQB2 aR 1700V/2000VDC with indicator 800A

                                          Fuse 2xSQB2 aR 1700V/2000VDC with indicator 800A

                                          9021226.800.0
                                          SIBA
                                          Available
                                          Class
                                          aR
                                          Rated current In (A)
                                          800
                                          Voltage of total I2t test
                                          2000
                                          Format
                                          Screw fixing
                                          Dimension
                                          2x SQB2
                                          Pre-arcing I2t value (A2s)
                                          120000
                                          Total I2t value (A2s)
                                          760000
                                          Homologations
                                          IEC
                                          Power loss (W)
                                          374
                                          Rated Voltage Un DC (V)
                                          2000
                                          Rated break.capacity I1 DC (A)
                                          30000
                                          Time costant L/R (ms)
                                          15

                                          Product available on request


                                          Catalog
                                          Datasheet
