List of products by brand DF

Fuse NH3C gG 500V with top indicator 355A

    Fuse NH3C gG 500V with top indicator 355A

    381450.0.0
    DF
    Available
    Class
    gG
    Rated current In (A)
    355
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    120000
    Voltage of total I2t test
    500
    Format
    NH knife contact
    Dimension
    NH3C
    Pre-arcing I2t value (A2s)
    290960
    Total I2t value (A2s)
    1094000
    Homologations
    IEC
    Power loss (W)
    30,6

    Product available on request


    Catalog
    Fuse NH00 aM 690V double indicator 80A

      Fuse NH00 aM 690V double indicator 80A

      384060.0.0
      DF
      Available
      Class
      aM
      Rated current In (A)
      80
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      80000
      Voltage of total I2t test
      690
      Format
      NH knife contact
      Dimension
      NH00
      Pre-arcing I2t value (A2s)
      19600
      Total I2t value (A2s)
      68600
      Homologations
      IEC
      Power loss (W)
      4,3
      €7.68

      Catalog
      Fuse NH1 gG 690V double indicator 125A

        Fuse NH1 gG 690V double indicator 125A

        382250.0.0
        DF
        Available
        Class
        gG
        Rated current In (A)
        125
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        80000
        Voltage of total I2t test
        690
        Format
        NH knife contact
        Dimension
        NH1
        Pre-arcing I2t value (A2s)
        24000
        Total I2t value (A2s)
        83478
        Homologations
        IEC
        Power loss (W)
        12,3
        €13.38

        Catalog
        Fuse NH4 screw fixing gG 690V double indicator 500A

          Fuse NH4 screw fixing gG 690V double indicator 500A

          382515.0.0
          DF
          Available
          Class
          gG
          Rated current In (A)
          500
          Rated Voltage Un AC (V)
          690
          Rated break.capacity I1 AC (A)
          80000
          Voltage of total I2t test
          690
          Format
          NH knife contact
          Dimension
          NH4
          Pre-arcing I2t value (A2s)
          726000
          Total I2t value (A2s)
          2500000
          Homologations
          IEC
          Power loss (W)
          37

          Product available on request


          Catalog
          Fuse NH0 gG 500V with striker 160A

            Fuse NH0 gG 500V with striker 160A

            395175.0.0
            DF
            Available
            Class
            gG
            Rated current In (A)
            160
            Rated Voltage Un AC (V)
            500
            Rated break.capacity I1 AC (A)
            120000
            Voltage of total I2t test
            500
            Format
            NH knife contact
            Dimension
            NH0
            Pre-arcing I2t value (A2s)
            78400
            Total I2t value (A2s)
            26500
            Homologations
            IEC
            Power loss (W)
            11,7

            Product available on request


            Catalog
            Fuse NH3 gG 690V with striker 425A

              Fuse NH3 gG 690V with striker 425A

              396460.0.0
              DF
              Available
              Class
              gG
              Rated current In (A)
              425
              Rated Voltage Un AC (V)
              690
              Rated break.capacity I1 AC (A)
              80000
              Voltage of total I2t test
              690
              Format
              NH knife contact
              Dimension
              NH3
              Pre-arcing I2t value (A2s)
              409000
              Total I2t value (A2s)
              1408402
              Homologations
              IEC
              Power loss (W)
              37,4
              €46.66

              Datasheet
              Fuse NH1 aM 690V with striker 125A

                Fuse NH1 aM 690V with striker 125A

                398250.0.0
                DF
                Available
                Class
                aM
                Rated current In (A)
                125
                Rated Voltage Un AC (V)
                690
                Rated break.capacity I1 AC (A)
                80000
                Voltage of total I2t test
                690
                Format
                NH knife contact
                Dimension
                NH1
                Pre-arcing I2t value (A2s)
                24000
                Total I2t value (A2s)
                83478
                Homologations
                IEC
                Power loss (W)
                8,7
                €25.45

                Catalog
                Datasheet
                Fuse 8x32 aM 400V with indicator 10A

                  Fuse 8x32 aM 400V with indicator 10A

                  411210.0.0
                  DF
                  Available
                  Class
                  aM
                  Rated current In (A)
                  10
                  Rated Voltage Un AC (V)
                  400
                  Rated break.capacity I1 AC (A)
                  20000
                  Voltage of total I2t test
                  400
                  Format
                  Cylindrical
                  Dimension
                  8x32mm
                  Pre-arcing I2t value (A2s)
                  300
                  Total I2t value (A2s)
                  733
                  Homologations
                  IEC
                  Power loss (W)
                  0,65
                  €1.25

                  Datasheet
                  Datasheet
                  Fuse 10x38 gG 500V 20A

                    Fuse 10x38 gG 500V 20A

                    420020.0.0
                    DF
                    Available
                    Class
                    gG
                    Rated current In (A)
                    20
                    Rated Voltage Un AC (V)
                    500
                    Rated break.capacity I1 AC (A)
                    120000
                    Voltage of total I2t test
                    500
                    Format
                    Cylindrical
                    Dimension
                    10x38mm
                    Pre-arcing I2t value (A2s)
                    500
                    Total I2t value (A2s)
                    1162
                    Homologations
                    IEC
                    Power loss (W)
                    2
                    €0.86

                    Datasheet
                    Datasheet
                    Fuse NH1 gG 500V with striker 125A

                      Fuse NH1 gG 500V with striker 125A

                      395250.0.0
                      DF
                      Available
                      Class
                      gG
                      Rated current In (A)
                      125
                      Rated Voltage Un AC (V)
                      500
                      Rated break.capacity I1 AC (A)
                      120000
                      Voltage of total I2t test
                      500
                      Format
                      NH knife contact
                      Dimension
                      NH1
                      Pre-arcing I2t value (A2s)
                      40500
                      Total I2t value (A2s)
                      136895
                      Homologations
                      IEC
                      Power loss (W)
                      10,9
                      €64.52

                      Catalog
                      Fuse NH0S gG 500V top indicator 250A

                        Fuse NH0S gG 500V top indicator 250A

                        381190.0.0
                        DF
                        Available
                        Class
                        gG
                        Rated current In (A)
                        250
                        Rated Voltage Un AC (V)
                        500
                        Rated break.capacity I1 AC (A)
                        120000
                        Voltage of total I2t test
                        500
                        Format
                        NH knife contact
                        Dimension
                        NH0S
                        Pre-arcing I2t value (A2s)
                        169000
                        Total I2t value (A2s)
                        486000
                        Homologations
                        IEC
                        Power loss (W)
                        20,2

                        Product available on request


                        Catalog
                        Fuse NH0 aM 690V double indicator 16A

                          Fuse NH0 aM 690V double indicator 16A

                          384120.0.0
                          DF
                          Available
                          Class
                          aM
                          Rated current In (A)
                          16
                          Rated Voltage Un AC (V)
                          690
                          Rated break.capacity I1 AC (A)
                          80000
                          Voltage of total I2t test
                          690
                          Format
                          NH knife contact
                          Dimension
                          NH0
                          Pre-arcing I2t value (A2s)
                          820
                          Total I2t value (A2s)
                          2650
                          Homologations
                          IEC
                          Power loss (W)
                          1,1
                          €9.32

                          Catalog

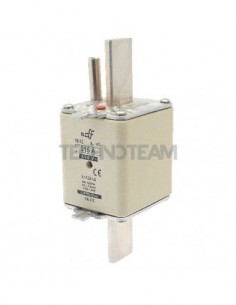

                          Fuse NH2 gG 500V with striker 160A

                            Fuse NH2 gG 500V with striker 160A

                            395345.0.0
                            DF
                            Available
                            Class
                            gG
                            Rated current In (A)
                            160
                            Rated Voltage Un AC (V)
                            500
                            Rated break.capacity I1 AC (A)
                            120000
                            Voltage of total I2t test
                            500
                            Format
                            NH knife contact
                            Dimension
                            NH2
                            Pre-arcing I2t value (A2s)
                            78400
                            Total I2t value (A2s)
                            265000
                            Homologations
                            IEC
                            Power loss (W)
                            13,1
                            €79.26

                            Catalog
                            Datasheet
                            Fuse NH2 gG 690V with striker 160A

                              Fuse NH2 gG 690V with striker 160A

                              396345.0.0
                              DF
                              Available
                              Class
                              gG
                              Rated current In (A)
                              160
                              Rated Voltage Un AC (V)
                              690
                              Rated break.capacity I1 AC (A)
                              80000
                              Voltage of total I2t test
                              690
                              Format
                              NH knife contact
                              Dimension
                              NH2
                              Pre-arcing I2t value (A2s)
                              50000
                              Total I2t value (A2s)
                              173913
                              Homologations
                              IEC
                              Power loss (W)
                              14,4
                              €31.96

                              Catalog
                              Fuse 8x32 gG 400V 0,5A

                                Fuse 8x32 gG 400V 0,5A

                                420500.0.0
                                DF
                                Available
                                Class
                                gG
                                Rated current In (A)
                                0,5
                                Rated Voltage Un AC (V)
                                400
                                Rated break.capacity I1 AC (A)
                                20000
                                Voltage of total I2t test
                                400
                                Format
                                Cylindrical
                                Dimension
                                8x32mm
                                Pre-arcing I2t value (A2s)
                                4
                                Total I2t value (A2s)
                                8,6
                                Homologations
                                IEC
                                Power loss (W)
                                1,43

                                Product available on request


                                Datasheet
                                Datasheet
                                Fuse NH2C gG 500V top indicator 80A

                                  Fuse NH2C gG 500V top indicator 80A

                                  381330.0.0
                                  DF
                                  Available
                                  Class
                                  gG
                                  Rated current In (A)
                                  80
                                  Rated Voltage Un AC (V)
                                  500
                                  Rated break.capacity I1 AC (A)
                                  120000
                                  Voltage of total I2t test
                                  500
                                  Format
                                  NH knife contact
                                  Dimension
                                  NH2C
                                  Pre-arcing I2t value (A2s)
                                  9838
                                  Total I2t value (A2s)
                                  39350
                                  Homologations
                                  IEC
                                  Power loss (W)
                                  7,9
                                  €14.17

                                  Catalog
                                  Fuse NH0 gG 690V double indicator 40A

                                    Fuse NH0 gG 690V double indicator 40A

                                    382145.0.0
                                    DF
                                    Available
                                    Class
                                    gG
                                    Rated current In (A)
                                    40
                                    Rated Voltage Un AC (V)
                                    690
                                    Rated break.capacity I1 AC (A)
                                    80000
                                    Voltage of total I2t test
                                    690
                                    Format
                                    NH knife contact
                                    Dimension
                                    NH0
                                    Pre-arcing I2t value (A2s)
                                    4650
                                    Total I2t value (A2s)
                                    11150
                                    Homologations
                                    IEC
                                    Power loss (W)
                                    5,2
                                    €11.90

                                    Catalog
                                    Fuse NH1 gG 500V with striker 315A

                                      Fuse NH1 gG 500V with striker 315A

                                      395280.0.0
                                      DF
                                      Available
                                      Class
                                      gG
                                      Rated current In (A)
                                      315
                                      Rated Voltage Un AC (V)
                                      500
                                      Rated break.capacity I1 AC (A)
                                      120000
                                      Voltage of total I2t test
                                      500
                                      Format
                                      NH knife contact
                                      Dimension
                                      NH1
                                      Pre-arcing I2t value (A2s)
                                      236700
                                      Total I2t value (A2s)
                                      890000
                                      Homologations
                                      IEC
                                      Power loss (W)
                                      27,4

                                      Product available on request


                                      Catalog

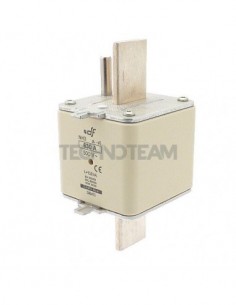

                                      Fuse NH3 gG 500V with striker 425A

                                        Fuse NH3 gG 500V with striker 425A

                                        395460.0.0
                                        DF
                                        Available
                                        Class
                                        gG
                                        Rated current In (A)
                                        425
                                        Rated Voltage Un AC (V)
                                        500
                                        Rated break.capacity I1 AC (A)
                                        120000
                                        Voltage of total I2t test
                                        500
                                        Format
                                        NH knife contact
                                        Dimension
                                        NH3
                                        Pre-arcing I2t value (A2s)
                                        589800
                                        Total I2t value (A2s)
                                        1851960
                                        Homologations
                                        IEC
                                        Power loss (W)
                                        33,5

                                        Product available on request


                                        Catalog
                                        Fuse NH2 gG 690V with striker 200A

                                          Fuse NH2 gG 690V with striker 200A

                                          396350.0.0
                                          DF
                                          Available
                                          Class
                                          gG
                                          Rated current In (A)
                                          200
                                          Rated Voltage Un AC (V)
                                          690
                                          Rated break.capacity I1 AC (A)
                                          80000
                                          Voltage of total I2t test
                                          690
                                          Format
                                          NH knife contact
                                          Dimension
                                          NH2
                                          Pre-arcing I2t value (A2s)
                                          92000
                                          Total I2t value (A2s)
                                          320000
                                          Homologations
                                          IEC
                                          Power loss (W)
                                          15,8
                                          €31.96

                                          Catalog
                                          Fuse 8x32 aM 400V 10A

                                            Fuse 8x32 aM 400V 10A

                                            411110.0.0
                                            DF
                                            Available
                                            Class
                                            aM
                                            Rated current In (A)
                                            10
                                            Rated Voltage Un AC (V)
                                            400
                                            Rated break.capacity I1 AC (A)
                                            20000
                                            Voltage of total I2t test
                                            400
                                            Format
                                            Cylindrical
                                            Dimension
                                            8x32mm
                                            Homologations
                                            IEC
                                            Power loss (W)
                                            0,65
                                            €0.86

                                            Datasheet
                                            Datasheet
                                            Fuse NH1 aM 690V double indicator 160A

                                              Fuse NH1 aM 690V double indicator 160A

                                              384255.0.0
                                              DF
                                              Available
                                              Class
                                              aM
                                              Rated current In (A)
                                              160
                                              Rated Voltage Un AC (V)
                                              690
                                              Rated break.capacity I1 AC (A)
                                              80000
                                              Voltage of total I2t test
                                              690
                                              Format
                                              NH knife contact
                                              Dimension
                                              NH1
                                              Pre-arcing I2t value (A2s)
                                              82000
                                              Total I2t value (A2s)
                                              244255
                                              Homologations
                                              IEC
                                              Power loss (W)
                                              9,7
                                              €13.21

                                              Catalog
                                              Datasheet
                                              Fuse NH2 gG 500V with striker 250A

                                                Fuse NH2 gG 500V with striker 250A

                                                395360.0.0
                                                DF
                                                Available
                                                Class
                                                gG
                                                Rated current In (A)
                                                250
                                                Rated Voltage Un AC (V)
                                                500
                                                Rated break.capacity I1 AC (A)
                                                120000
                                                Voltage of total I2t test
                                                500
                                                Format
                                                NH knife contact
                                                Dimension
                                                NH2
                                                Pre-arcing I2t value (A2s)
                                                169000
                                                Total I2t value (A2s)
                                                486000
                                                Homologations
                                                IEC
                                                Power loss (W)
                                                20,6
                                                €79.26

                                                Catalog
                                                Datasheet
                                                Fuse NH00 gG 690V top indicator 63A

                                                  Fuse NH00 gG 690V top indicator 63A

                                                  382055.0.0
                                                  DF
                                                  Available
                                                  Class
                                                  gG
                                                  Rated current In (A)
                                                  63
                                                  Rated Voltage Un AC (V)
                                                  690
                                                  Rated break.capacity I1 AC (A)
                                                  80000
                                                  Voltage of total I2t test
                                                  690
                                                  Format
                                                  NH knife contact
                                                  Dimension
                                                  NH00
                                                  Pre-arcing I2t value (A2s)
                                                  6600
                                                  Total I2t value (A2s)
                                                  23571
                                                  Homologations
                                                  IEC
                                                  Power loss (W)
                                                  6,1
                                                  €8.25

                                                  Catalog
