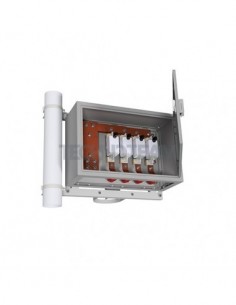

ZBOX - Fuse box 4 O.C. eBUS 500x750x300mm + option1

    ZBOX - Fuse box 4 O.C. eBUS 500x750x300mm + option1

    FAULTRAP
    322.395.30.0.0
    Product available on request

    Product Request:

    ZBOX - Fuse box 4 O.C. eBUS 500x750x300mm + option1

    ZBOX - Fuse box 4 O.C. eBUS 500x750x300mm + option1

    do not include special characters

    * Required fields



    Download

    Catalog
    Equiped by 215mm pole fixing
    Option1: micro switch
    Rated current In (A)
    630
    Fuses format
    NH knife contact
    Fuses dimension
    NH3L
    Rated Voltage Un DC (V)
    1500
    Catalog name
    ZBOX

    Accessories

    Fuse NH3L 1500V DC aBat 630A with indicator
      Available
      Ultrarapid fuses aR - gR

      Fuse NH3L 1500V DC aBat 630A with indicator

      9044326.630.0
      Class
      aBat
      Rated current In (A)
      630
      Voltage of total I2t test
      1500
      Format
      NH knife contact
      Dimension
      NH3L
      Pre-arcing I2t value (A2s)
      272000
      Total I2t value (A2s)
      1400000
      Homologations
      UL
      Power loss (W)
      120
      Rated Voltage Un DC (V)
      1500
      Rated break.capacity I1 DC (A)
      100000
      Time costant L/R (ms)
      5

      Product available on request

      ZLIY - Fuse base metal/ceramic NH3L 1500V
        Available
        for NH knife fuses

        ZLIY - Fuse base metal/ceramic NH3L 1500V

        837.607.45.0.0
        Rated current In (A)
        630
        Homologations
        IEC
        Fuses format
        NH knife contact
        Fuses dimension
        NH3L
        Rated Voltage Un DC (V)
        1500
        Number of phase
        1
        Distance (mm)
        267
        Max power dissipation (W)
        60
        €133.58
