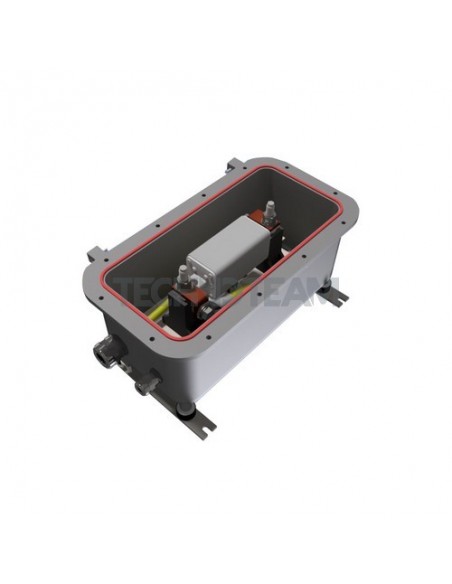

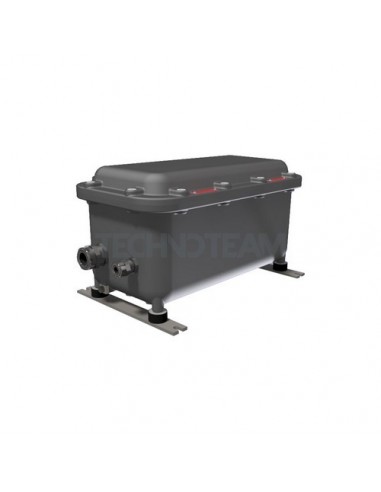

ZEBW - Fuse box 424x250x233mm 750V DC 400A
ZEBW - Fuse box 424x250x233mm 750V DC 400A
    ZEBW - Fuse box 424x250x233mm 750V DC 400A
    ZEBW - Fuse box 424x250x233mm 750V DC 400A

    ZEBW - Fuse box 424x250x233mm 750V DC 400A

    FAULTRAP
    323.953.07.0.0
    Product available on request

    Product Request:

    ZEBW - Fuse box 424x250x233mm 750V DC 400A

    ZEBW - Fuse box 424x250x233mm 750V DC 400A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Special anticorrosion aluminum alloy
    Vertical or horizontal installation
    Customizable with micro-switch for blown fuse indication, special fixing brackets and special copper extensions
    Stainless steel drain/relief valves
    Suitable for SQB-DC92 fuses
    Rated current In (A)
    400
    Homologations
    IEC
    Fuses format
    DC92
    Rated Voltage Un DC (V)
    750
    Catalog name
    ZEBW

    Accessories

    Fuse SQB-DC92 gR 900VDC contact US with micro adapter 350A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB-DC92 gR 900VDC contact US with micro adapter 350A

      9032621.350.0
      Class
      gR
      Rated current In (A)
      350
      Voltage of total I2t test
      1000
      Format
      Screw fixing
      Dimension
      DC92
      Pre-arcing I2t value (A2s)
      57100
      Total I2t value (A2s)
      374000
      Homologations
      IEC
      Power loss (W)
      61
      Rated Voltage Un DC (V)
      900
      Rated break.capacity I1 DC (A)
      30000
      Time costant L/R (ms)
      10

      Product available on request

      Fuse SQB-DC92 gR 900VDC US style with switch adapt 315A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB-DC92 gR 900VDC US style with switch adapt 315A

        9032621.315.0
        Class
        gR
        Rated current In (A)
        315
        Voltage of total I2t test
        900
        Format
        Screw fixing
        Dimension
        DC92
        Pre-arcing I2t value (A2s)
        38000
        Total I2t value (A2s)
        249000
        Homologations
        IEC
        Power loss (W)
        57
        Rated Voltage Un DC (V)
        900
        Rated break.capacity I1 DC (A)
        100000
        Time costant L/R (ms)
        40

        Product available on request

        Fuse SQB-DC92 gR 900VDC US style with switch adapt 400A
          Available
          Ultrarapid fuses aR - gR

          Fuse SQB-DC92 gR 900VDC US style with switch adapt 400A

          9032621.400.0
          Class
          gR
          Rated current In (A)
          400
          Voltage of total I2t test
          1000
          Format
          Screw fixing
          Dimension
          DC92
          Pre-arcing I2t value (A2s)
          79800
          Total I2t value (A2s)
          522000
          Homologations
          IEC
          Power loss (W)
          67
          Rated Voltage Un DC (V)
          900
          Rated break.capacity I1 DC (A)
          30000
          Time costant L/R (ms)
          10

          Product available on request

          Fuse SQB-DC92 gR 900VDC US style with switch adapt 250A
            Available
            Ultrarapid fuses aR - gR

            Fuse SQB-DC92 gR 900VDC US style with switch adapt 250A

            9032621.250.0
            Class
            gR
            Rated current In (A)
            250
            Voltage of total I2t test
            750
            Format
            Screw fixing
            Dimension
            DC92
            Pre-arcing I2t value (A2s)
            21500
            Total I2t value (A2s)
            141000
            Homologations
            IEC
            Power loss (W)
            48
            Rated Voltage Un DC (V)
            900
            Rated break.capacity I1 DC (A)
            100000
            Time costant L/R (ms)
            100

            Product available on request
