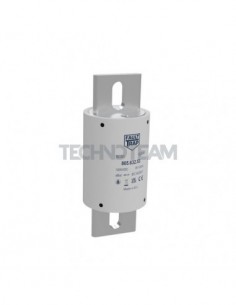

B050 - Fuse 1000VDC aBat 500A - 132,75mm - Tin Plated

    B050 - Fuse 1000VDC aBat 500A - 132,75mm - Tin Plated

    FAULTRAP
    655.460.05.0.0
    Product available on request

    Product Request:


    B050 - Fuse 1000VDC aBat 500A - 132,75mm - Tin Plated

    B050 - Fuse 1000VDC aBat 500A - 132,75mm - Tin Plated

    do not include special characters

    * Required fields



    Class
    aBat
    Rated current In (A)
    500
    Voltage of total I2t test
    1000
    Format
    Screw fixing
    Dimension
    50,8x72,2mm
    Pre-arcing I2t value (A2s)
    78500
    Total I2t value (A2s)
    204000
    Homologations
    IEC
    Power loss (W)
    73
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    100000
    Time costant L/R (ms)
    2
    Min breaking current I3(A)
    5000
    Catalog name
    B050
