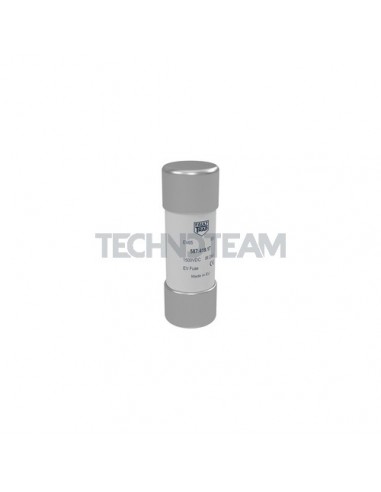

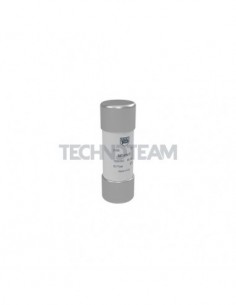

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 40A

    EV65.1500 - Fuse 1500VDC 22x65 cylindrical 40A

    FAULTRAP
    490.719.58.0.0
    Product available on request

    Product Request:


    EV65.1500 - Fuse 1500VDC 22x65 cylindrical 40A

    EV65.1500 - Fuse 1500VDC 22x65 cylindrical 40A

    do not include special characters

    * Required fields



    Class
    EV full
    Rated current In (A)
    40
    Voltage of total I2t test
    1500
    Format
    Cylindrical
    Dimension
    22x65mm
    Pre-arcing I2t value (A2s)
    425
    Total I2t value (A2s)
    3500
    Homologations
    UL
    Power loss (W)
    9
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    25000
    Time costant L/R (ms)
    2,5
    Catalog name
    EV65
