Fuse 10x38 1000VDC gPV 8A

    Fuse 10x38 1000VDC gPV 8A

    DF
    491615.0.0
    €20.02
    VAT excl.

    Product Request:

    Fuse 10x38 1000VDC gPV 8A

    Fuse 10x38 1000VDC gPV 8A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 10 pcs

    This product has a minimum quantity of 10 and sold by 10

    Download

    Catalog
    Class
    gPV
    Rated current In (A)
    8
    Voltage of total I2t test
    1000
    Weight (g)
    9
    Format
    Cylindrical
    Dimension
    10x38mm
    Pre-arcing I2t value (A2s)
    7
    Total I2t value (A2s)
    17
    Homologations
    IEC
    Power loss (W)
    2
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    30000

    Alternatives

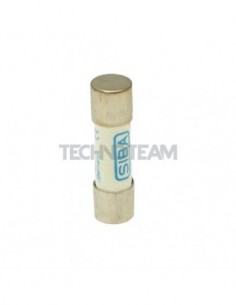

    Fuse 10x38 gR 1000AC/DC 8A
      Available
      Ultrarapid fuses aR - gR

      Fuse 10x38 gR 1000AC/DC 8A

      SIBA SIBA
      5019906.8.0
      Class
      gR
      Rated current In (A)
      8
      Rated Voltage Un AC (V)
      1000
      Rated break.capacity I1 AC (A)
      30000
      Voltage of total I2t test
      1000
      Format
      Cylindrical
      Dimension
      10x38mm
      Pre-arcing I2t value (A2s)
      7
      Total I2t value (A2s)
      55
      Homologations
      UL
      Power loss (W)
      1,1
      Rated Voltage Un DC (V)
      1000
      Rated break.capacity I1 DC (A)
      30000
      Time costant L/R (ms)
      1

      Product available on request

      Fuse 10x38 gR 1000V UL/900V IEC AC/DC 8A
        Available
        Ultrarapid fuses aR - gR

        Fuse 10x38 gR 1000V UL/900V IEC AC/DC 8A

        SIBA SIBA
        5021506.8.0
        Class
        gR
        Rated current In (A)
        8
        Rated Voltage Un AC (V)
        900
        Voltage of total I2t test
        1000
        Format
        Cylindrical
        Dimension
        10x38mm
        Pre-arcing I2t value (A2s)
        7
        Total I2t value (A2s)
        55
        Homologations
        UL
        Power loss (W)
        1,1
        Rated Voltage Un DC (V)
        1000
        Rated break.capacity I1 DC (A)
        30000
        Time costant L/R (ms)
        1

        Product available on request

        Accessories

        Fuse holder 10x38 1000VDC 1pole UL with light (PMX)
          Available
          for Cylindrical fuses

          Fuse holder 10x38 1000VDC 1pole UL with light (PMX)

          485152.0.0
          Rated current In (A)
          32
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC & UL
          Fuses format
          Cylindrical
          Fuses dimension
          10x38mm
          Rated Voltage Un DC (V)
          1000
          Number of phase
          1
          Max power dissipation (W)
          4
          €8.30
          Fuse holder 10x38 1000VDC 2poles with light indicator
            Available
            for Cylindrical fuses

            Fuse holder 10x38 1000VDC 2poles with light indicator

            5106305.2LDC.0
            Rated current In (A)
            30
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC & UL
            Fuses format
            Cylindrical
            Fuses dimension
            10x38mm
            Rated Voltage Un DC (V)
            1000
            Number of phase
            2
            Max power dissipation (W)
            4

            Product available on request

            Fuse holder 10x38 1000VDC 1pole
              Available
              for Cylindrical fuses

              Fuse holder 10x38 1000VDC 1pole

              5106305.1DC.0
              Rated current In (A)
              30
              Rated Voltage Un AC (V)
              690
              Homologations
              IEC & UL
              Fuses format
              Cylindrical
              Fuses dimension
              10x38mm
              Rated Voltage Un DC (V)
              1000
              Number of phase
              1
              Max power dissipation (W)
              4
              €4.88
              Fuse holder 10x38 1000VDC 1pole UL4248-18 (PMX)
                Available
                for Cylindrical fuses

                Fuse holder 10x38 1000VDC 1pole UL4248-18 (PMX)

                485150.0.0
                Rated current In (A)
                32
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC & UL
                Fuses format
                Cylindrical
                Fuses dimension
                10x38mm
                Rated Voltage Un DC (V)
                1000
                Number of phase
                1
                Max power dissipation (W)
                4
                €5.70
                Fuse holder 10x38 1000VDC 2poles
                  Available
                  for Cylindrical fuses

                  Fuse holder 10x38 1000VDC 2poles

                  5106305.2DC.0
                  Rated current In (A)
                  30
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC & UL
                  Fuses format
                  Cylindrical
                  Fuses dimension
                  10x38mm
                  Rated Voltage Un DC (V)
                  1000
                  Number of phase
                  2
                  Max power dissipation (W)
                  4
                  €9.73
                  Fuse holder 10x38 1000VDC 2poles UL with light (PMX)
                    Available
                    for Cylindrical fuses

                    Fuse holder 10x38 1000VDC 2poles UL with light (PMX)

                    485153.0.0
                    Rated current In (A)
                    32
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC & UL
                    Fuses format
                    Cylindrical
                    Fuses dimension
                    10x38mm
                    Rated Voltage Un DC (V)
                    1000
                    Number of phase
                    2
                    Max power dissipation (W)
                    4

                    Product available on request

                    Fuse holder 10x38 1000VDC 2poles UL4248-18 (PMX)
                      Available
                      for Cylindrical fuses

                      Fuse holder 10x38 1000VDC 2poles UL4248-18 (PMX)

                      485151.0.0
                      Rated current In (A)
                      32
                      Rated Voltage Un AC (V)
                      690
                      Homologations
                      IEC & UL
                      Fuses format
                      Cylindrical
                      Fuses dimension
                      10x38mm
                      Rated Voltage Un DC (V)
                      1000
                      Number of phase
                      2
                      Max power dissipation (W)
                      4
                      €10.95
                      Fuse holder 10x38 1000VDC 1pole with light indicator
                        Available
                        for Cylindrical fuses

                        Fuse holder 10x38 1000VDC 1pole with light indicator

                        5106305.1LDC.0
                        Rated current In (A)
                        30
                        Rated Voltage Un AC (V)
                        690
                        Homologations
                        IEC & UL
                        Fuses format
                        Cylindrical
                        Fuses dimension
                        10x38mm
                        Rated Voltage Un DC (V)
                        1000
                        Number of phase
                        1
                        Max power dissipation (W)
                        4
                        €7.38
                        Clip diameter 10mm with holes
                          Available
                          for Cylindrical fuses

                          Clip diameter 10mm with holes

                          5806317.0.0
                          Homologations
                          IEC & UL
                          Fuses format
                          Cylindrical
                          Inside diameter (mm)
                          10

                          Product available on request

                          ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind
                            Available
                            for Cylindrical fuses

                            ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind

                            421.781.29.0.0
                            Rated current In (A)
                            32
                            Rated Voltage Un AC (V)
                            690
                            Homologations
                            IEC
                            Fuses format
                            Cylindrical
                            Fuses dimension
                            10x38mm
                            Rated Voltage Un DC (V)
                            1000
                            Number of phase
                            1
                            Max power dissipation (W)
                            4,3
                            €9.15
                            ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P
                              Available
                              for Cylindrical fuses

                              ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P

                              793.159.36.0.0
                              Rated current In (A)
                              32
                              Rated Voltage Un AC (V)
                              690
                              Homologations
                              IEC
                              Fuses format
                              Cylindrical
                              Fuses dimension
                              10x38mm
                              Rated Voltage Un DC (V)
                              1000
                              Number of phase
                              2
                              Max power dissipation (W)
                              4,3
                              €7.37
                              ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P
                                Available
                                for Cylindrical fuses

                                ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P

                                832.456.76.0.0
                                Rated current In (A)
                                32
                                Rated Voltage Un AC (V)
                                690
                                Homologations
                                IEC
                                Fuses format
                                Cylindrical
                                Fuses dimension
                                10x38mm
                                Rated Voltage Un DC (V)
                                1000
                                Number of phase
                                1
                                Max power dissipation (W)
                                4
                                €3.04
                                ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind
                                  Available
                                  for Cylindrical fuses

                                  ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind

                                  543.991.81.0.0
                                  Rated current In (A)
                                  32
                                  Rated Voltage Un AC (V)
                                  690
                                  Homologations
                                  IEC
                                  Fuses format
                                  Cylindrical
                                  Fuses dimension
                                  10x38mm
                                  Rated Voltage Un DC (V)
                                  1000
                                  Number of phase
                                  2
                                  Max power dissipation (W)
                                  4,3

                                  Product available on request

                                  Fuse holder modular midget 600V 1P 30A
                                    Available
                                    for American fuses

                                    Fuse holder modular midget 600V 1P 30A

                                    6SM30A1C.0.0
                                    Rated current In (A)
                                    30
                                    Rated Voltage Un AC (V)
                                    600
                                    Homologations
                                    UL
                                    Fuses format
                                    Cylindrical
                                    Number of phase
                                    1

                                    Product available on request

                                    Fuse holder modular midget 600V 2P 30A
                                      Available
                                      for American fuses

                                      Fuse holder modular midget 600V 2P 30A

                                      6SM30A2C.0.0
                                      Rated current In (A)
                                      30
                                      Rated Voltage Un AC (V)
                                      600
                                      Homologations
                                      UL
                                      Fuses format
                                      Cylindrical
                                      Number of phase
                                      2

                                      Product available on request

                                      Fuse holder modular midget 600V 3P 30A
                                        Available
                                        for American fuses

                                        Fuse holder modular midget 600V 3P 30A

                                        6SM30A3C.0.0
                                        Rated current In (A)
                                        30
                                        Rated Voltage Un AC (V)
                                        600
                                        Homologations
                                        UL
                                        Fuses format
                                        Cylindrical
                                        Number of phase
                                        3

                                        Product available on request
