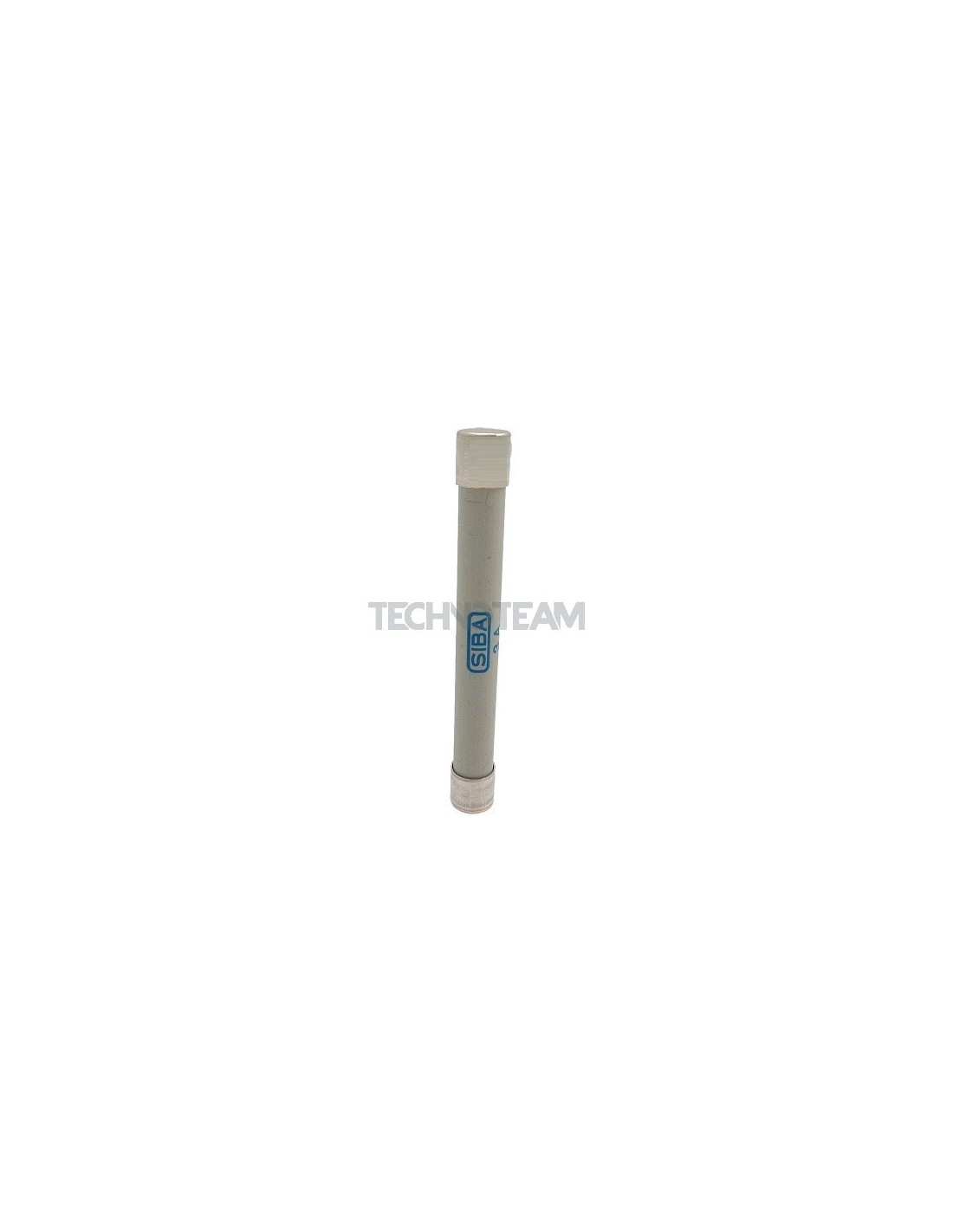

Fuse 1500V DC gPV 10x85mm 3A

    Fuse 1500V DC gPV 10x85mm 3A

    SIBA
    5011528.3.0
    Product available on request

    Product Request:

    Fuse 1500V DC gPV 10x85mm 3A

    Fuse 1500V DC gPV 10x85mm 3A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 25 pcs

    This product has a minimum quantity of 25 and sold by 25

    Download

    Catalog Datasheet
    Class
    gPV
    Rated current In (A)
    3
    Voltage of total I2t test
    1500
    Weight (g)
    15
    Format
    Cylindrical
    Dimension
    10x85mm
    Pre-arcing I2t value (A2s)
    5,2
    Total I2t value (A2s)
    8,8
    Homologations
    IEC & UL
    Power loss (W)
    3,5
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    30000
    Supplier
    0

    Accessories

    Clip diameter 10mm with holes
      Available
      for Cylindrical fuses

      Clip diameter 10mm with holes

      5806317.0.0
      Homologations
      IEC & UL
      Fuses format
      Cylindrical
      Inside diameter (mm)
      10

      Product available on request

      ZRDU - Fuse holder 10x85 1500VDC IEC/UL 1P
        Available
        for Cylindrical fuses

        ZRDU - Fuse holder 10x85 1500VDC IEC/UL 1P

        463.991.81.0.0
        Rated current In (A)
        32
        Rated Voltage Un AC (V)
        1000
        Homologations
        IEC & UL
        Fuses format
        Cylindrical
        Fuses dimension
        10/14x85mm 10x85mm
        Rated Voltage Un DC (V)
        1500
        Number of phase
        1
        Max power dissipation (W)
        8,5
        €13.33
