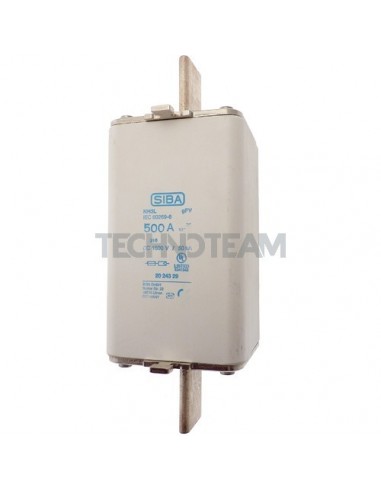

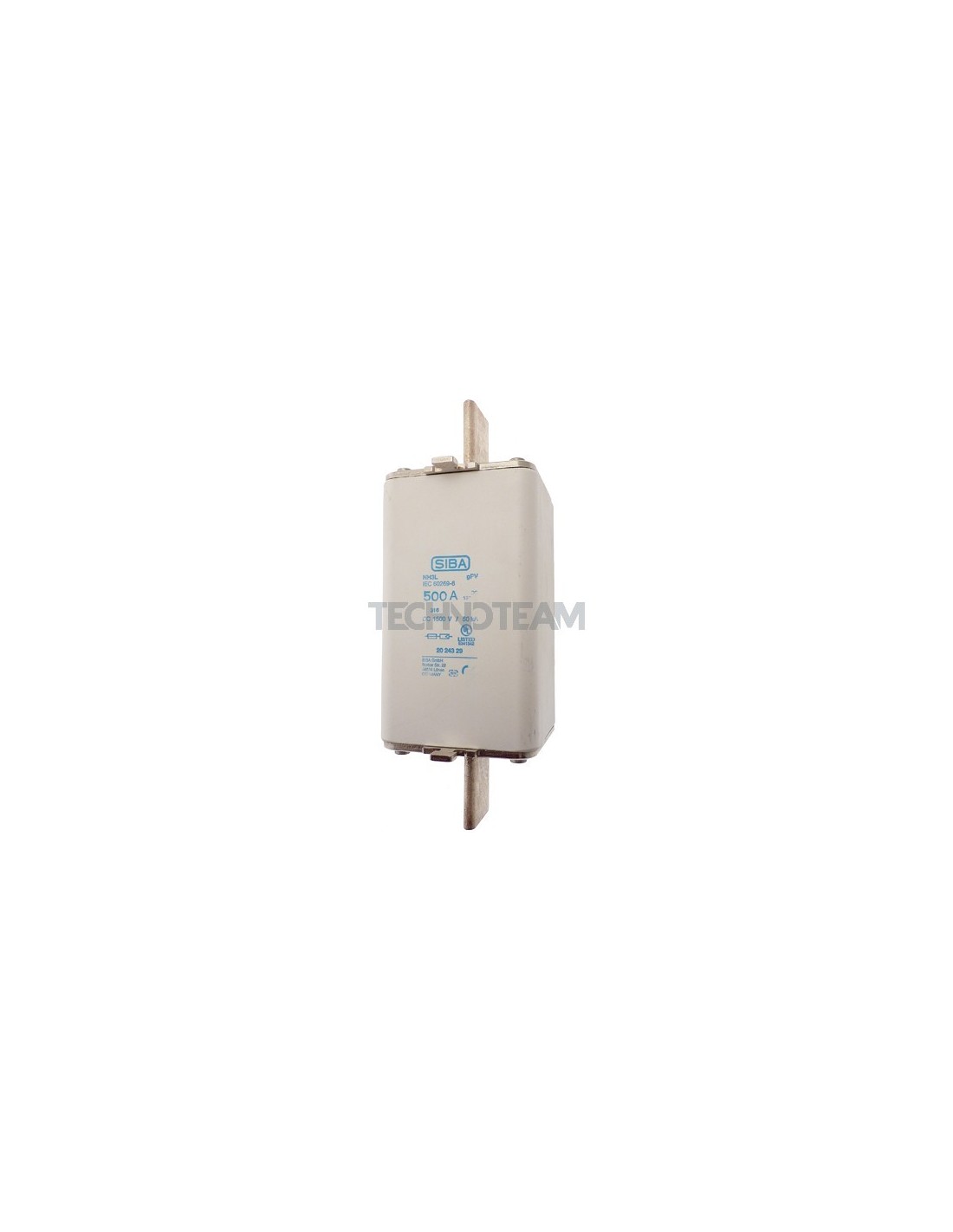

Fuse 1500VDC NH3L gPV UL248-19 with indicator 500A

    Fuse 1500VDC NH3L gPV UL248-19 with indicator 500A

    SIBA
    2024329.500.0
    €510.15
    VAT excl.

    Product Request:


    Fuse 1500VDC NH3L gPV UL248-19 with indicator 500A

    Fuse 1500VDC NH3L gPV UL248-19 with indicator 500A

    do not include special characters

    * Required fields



    Class
    gPV
    Rated current In (A)
    500
    Voltage of total I2t test
    1500
    Weight (g)
    2060
    Format
    NH knife contact
    Dimension
    NH3L
    Pre-arcing I2t value (A2s)
    189000
    Total I2t value (A2s)
    1010000
    Homologations
    IEC & UL
    Power loss (W)
    80
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    50000
