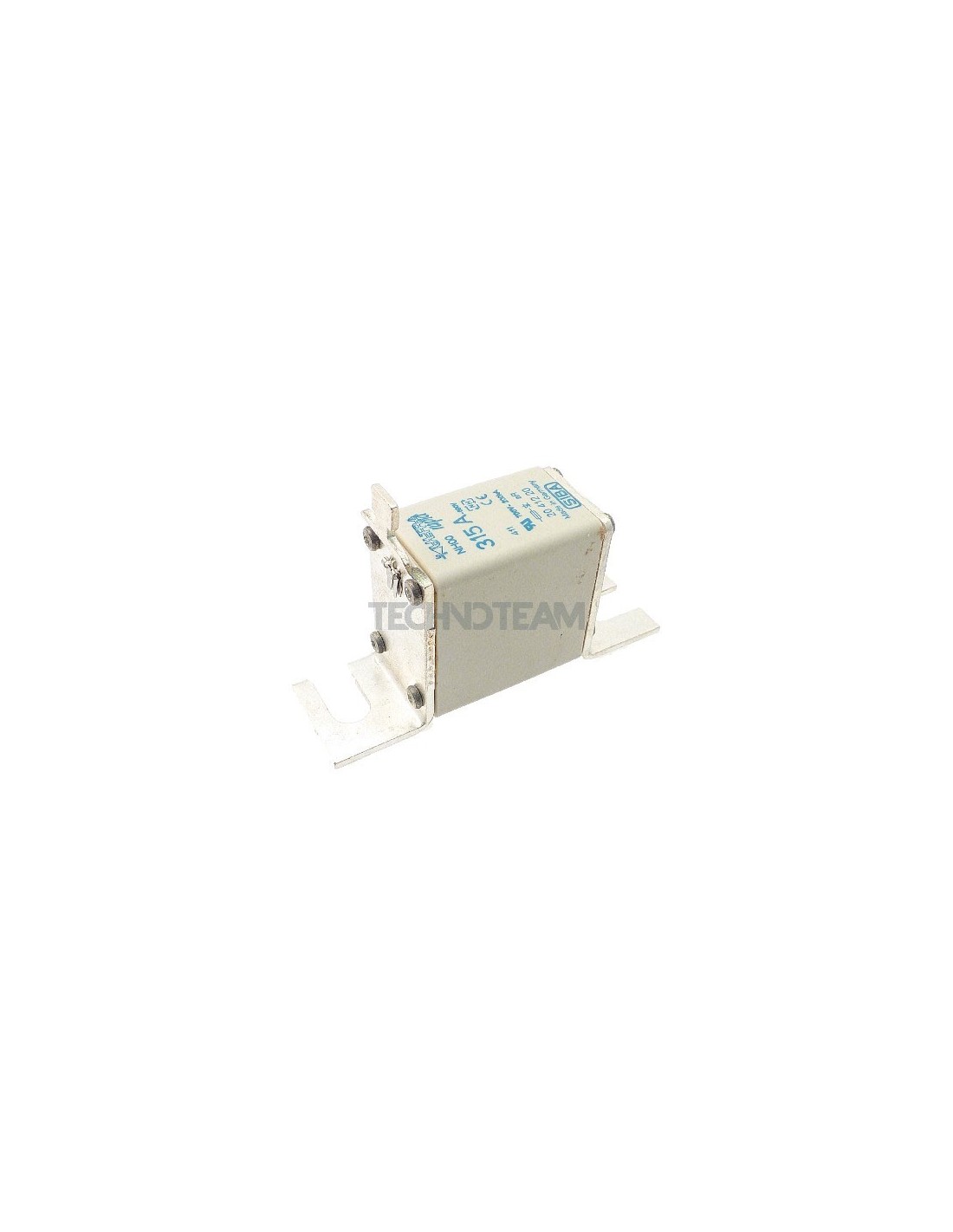

Fuse DIN00 80mm gPV UL 2579 600VDCwith indicator and lug 70A

    Fuse DIN00 80mm gPV UL 2579 600VDCwith indicator and lug 70A

    SIBA
    2041229.70.0
    Product available on request

    Product Request:


    Fuse DIN00 80mm gPV UL 2579 600VDCwith indicator and lug 70A

    Fuse DIN00 80mm gPV UL 2579 600VDCwith indicator and lug 70A

    do not include special characters

    * Required fields



    Class
    gPV
    Rated current In (A)
    70
    Voltage of total I2t test
    600
    Weight (g)
    240
    Format
    Screw fixing
    Dimension
    00-80mm
    Pre-arcing I2t value (A2s)
    415
    Total I2t value (A2s)
    2500
    Homologations
    IEC & UL
    Power loss (W)
    13
    Rated Voltage Un DC (V)
    600
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    3
