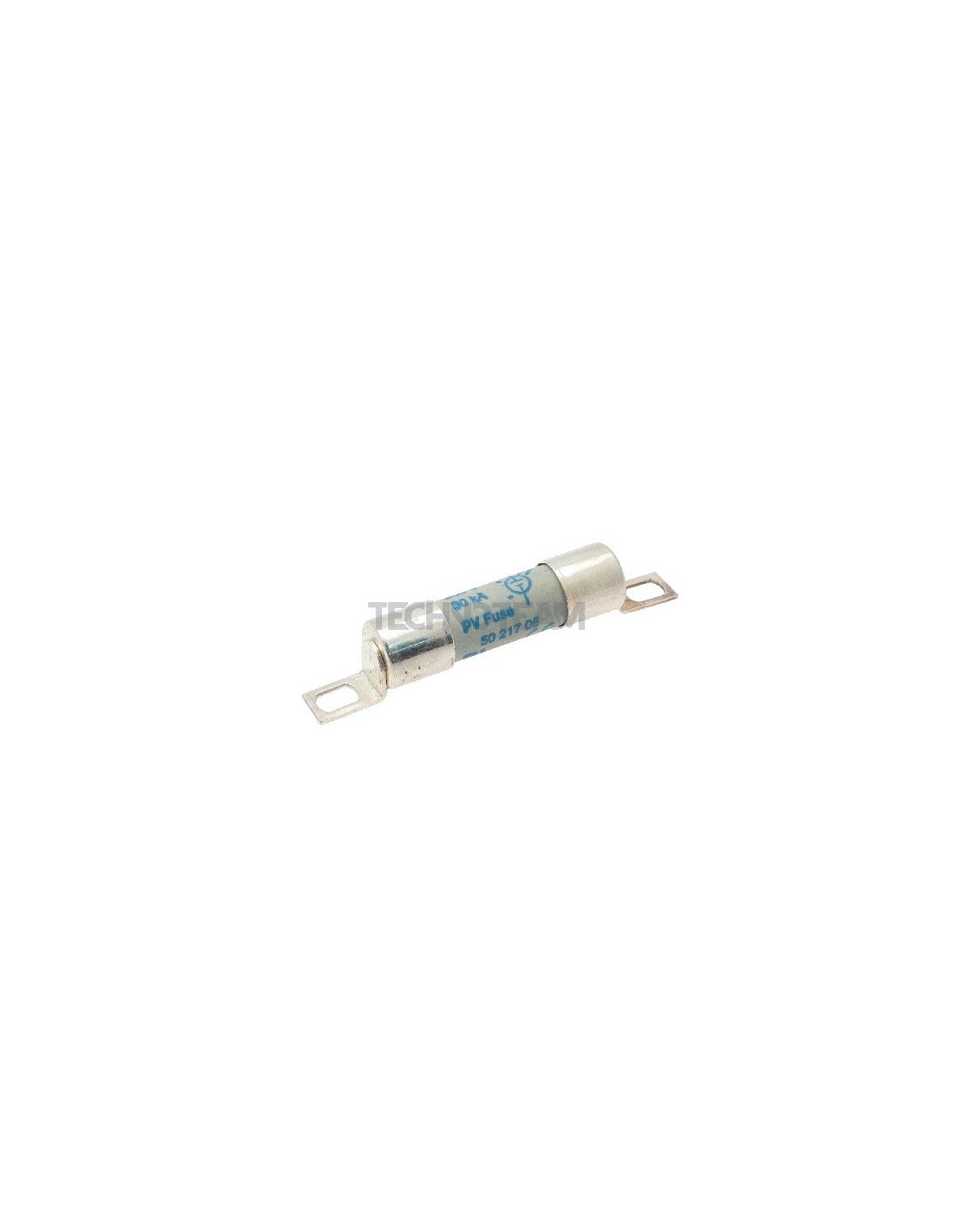

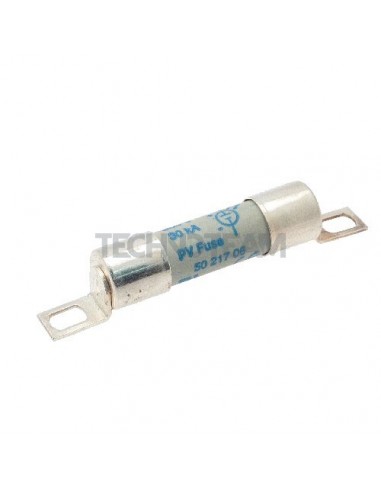

Fuse 10x38 gPV 1000VDC screw fixing 3A

    Fuse 10x38 gPV 1000VDC screw fixing 3A

    SIBA
    5021726.3.0
    Product available on request

    Product Request:

    Fuse 10x38 gPV 1000VDC screw fixing 3A

    Fuse 10x38 gPV 1000VDC screw fixing 3A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 10 pcs

    This product has a minimum quantity of 10 and sold by 10

    Download

    Catalog Datasheet
    Class
    gPV
    Rated current In (A)
    3
    Voltage of total I2t test
    1000
    Weight (g)
    10
    Format
    Screw fixing
    Dimension
    10x38mm
    Pre-arcing I2t value (A2s)
    12
    Homologations
    IEC & UL
    Power loss (W)
    1,6
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    2

    Accessories

    ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind
      Available
      for Cylindrical fuses

      ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind

      421.781.29.0.0
      Rated current In (A)
      32
      Rated Voltage Un AC (V)
      690
      Homologations
      IEC
      Fuses format
      Cylindrical
      Fuses dimension
      10x38mm
      Rated Voltage Un DC (V)
      1000
      Number of phase
      1
      Max power dissipation (W)
      4,3
      €9.15
      ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P
        Available
        for Cylindrical fuses

        ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P

        793.159.36.0.0
        Rated current In (A)
        32
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC
        Fuses format
        Cylindrical
        Fuses dimension
        10x38mm
        Rated Voltage Un DC (V)
        1000
        Number of phase
        2
        Max power dissipation (W)
        4,3
        €7.37
        ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P
          Available
          for Cylindrical fuses

          ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P

          832.456.76.0.0
          Rated current In (A)
          32
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC
          Fuses format
          Cylindrical
          Fuses dimension
          10x38mm
          Rated Voltage Un DC (V)
          1000
          Number of phase
          1
          Max power dissipation (W)
          4
          €3.04
          ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind
            Available
            for Cylindrical fuses

            ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind

            543.991.81.0.0
            Rated current In (A)
            32
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC
            Fuses format
            Cylindrical
            Fuses dimension
            10x38mm
            Rated Voltage Un DC (V)
            1000
            Number of phase
            2
            Max power dissipation (W)
            4,3
