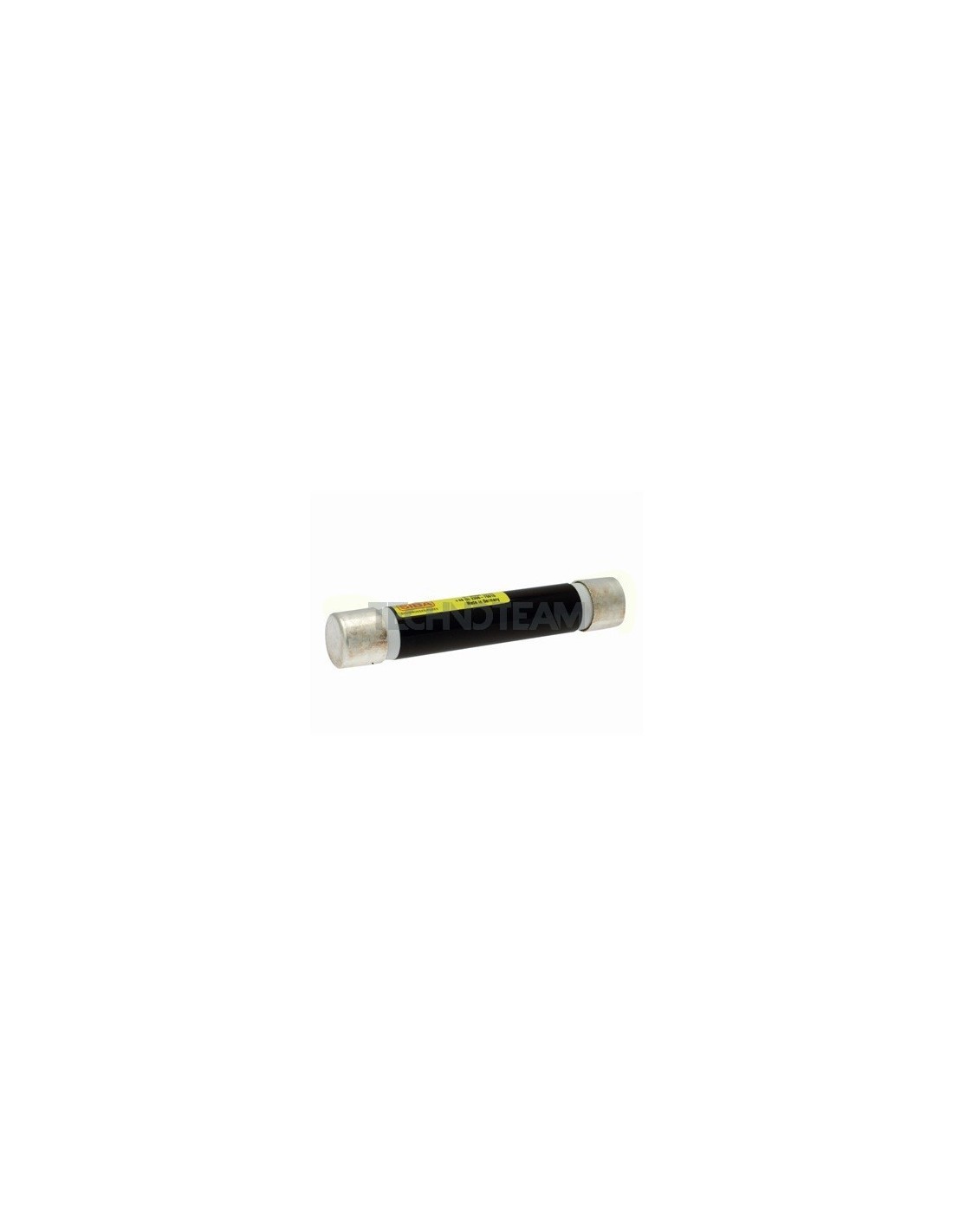

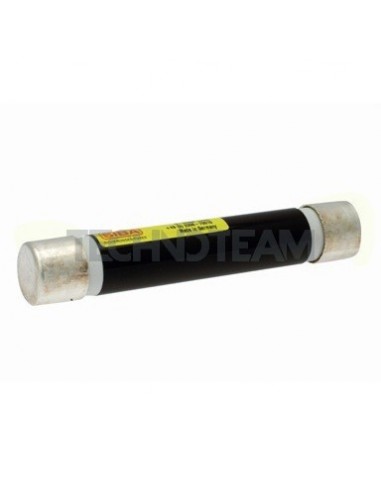

Fuse 7,2kV 24x142 VT protection ANSI 2E

    Fuse 7,2kV 24x142 VT protection ANSI 2E

    SIBA
    3038311.2E.0
    Product available on request

    Product Request:


    Fuse 7,2kV 24x142 VT protection ANSI 2E

    Fuse 7,2kV 24x142 VT protection ANSI 2E

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    HH Back up
    Rated current In (A)
    2
    Rated Voltage Un AC (V)
    7200
    Rated break.capacity I1 AC (A)
    80000
    Voltage of total I2t test
    7200
    Weight (g)
    200
    Format
    BS
    Dimension
    24x142mm
    Pre-arcing I2t value (A2s)
    4
    Total I2t value (A2s)
    38
    Homologations
    IEC
    Power loss (W)
    5
    E-Rating
    2
