High Voltage fuses

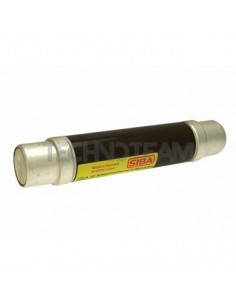

Fuse 17,5kV 53x192 back-up with striker 6,3A 80N
SIBA SIBA
3017913.6,3.0
Product available on request
- Class
- HH Back up
- Rated current In (A)
- 6,3
- Rated Voltage Un AC (V)
- 12000
- Rated break.capacity I1 AC (A)
- 63000
- Voltage of total I2t test
- 10440
- Weight (g)
- 1200
- Format
- Cylindrical
- Dimension
- 53x192mm
- Pre-arcing I2t value (A2s)
- 27
- Total I2t value (A2s)
- 460
- Homologations
- IEC
- Power loss (W)
- 17
- Resistance (ohm)
- 0,302
- Min breaking current I3(A)
- 22
Alternatives
Accessories
Available
for High voltage fuses AC
Extention fos HV fuses lenght from 192mm to 442mm
3400602.0.0
Product available on request
Available
for High voltage fuses AC
Extention fos HV fuses lenght from 192mm to 292mm
3400402.0.0
Product available on request
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
