High Voltage fuses

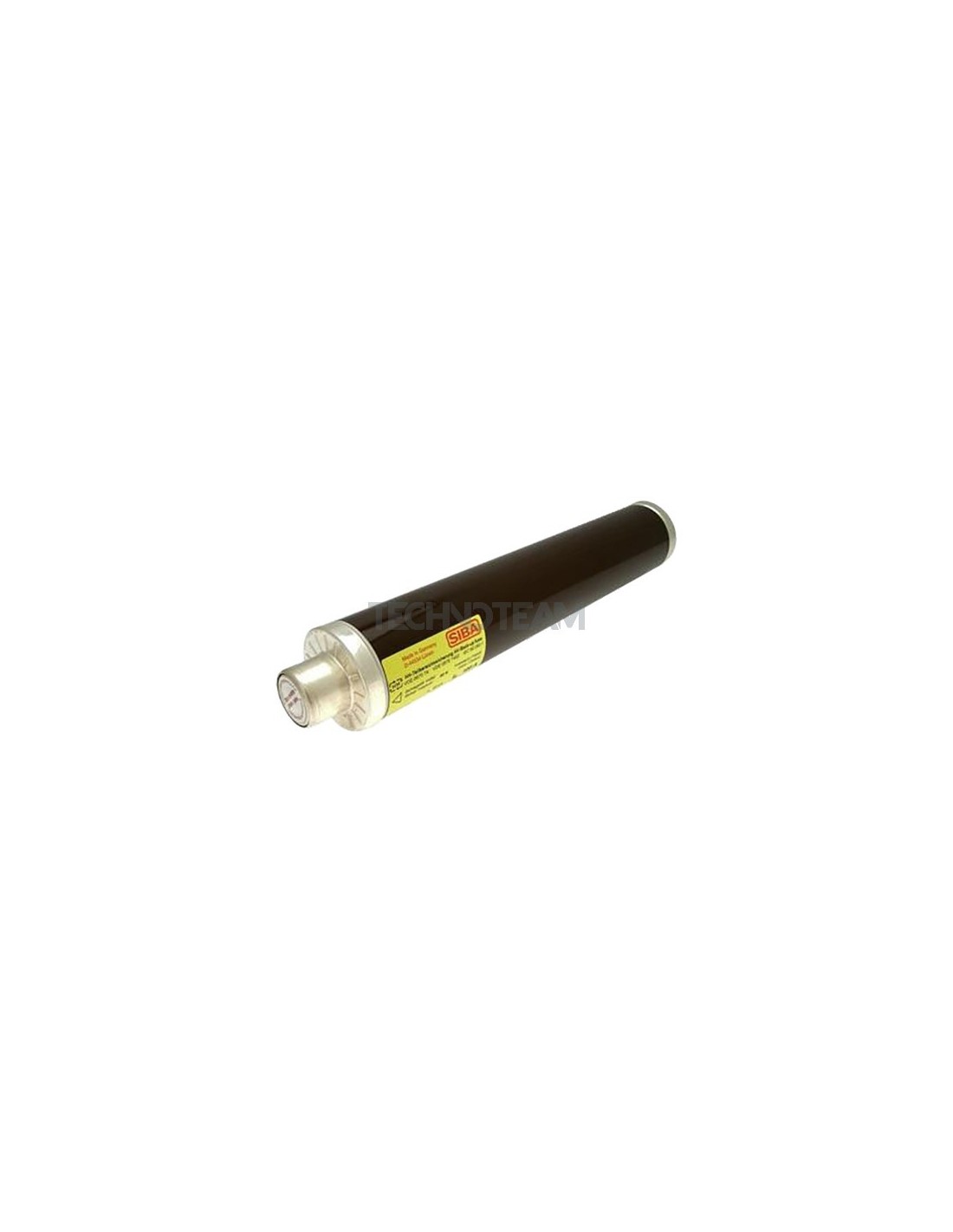

Fuse 24kV 87x442 striker no temp.lim 200ARC112 120N
SIBA SIBA
3002214.200.0
€598.63
- Class
- HH Back up
- Rated current In (A)
- 200
- Rated Voltage Un AC (V)
- 17500
- Rated break.capacity I1 AC (A)
- 63000
- Voltage of total I2t test
- 15225
- Weight (g)
- 5620
- Format
- Cylindrical
- Dimension
- 85x442mm
- Pre-arcing I2t value (A2s)
- 78000
- Total I2t value (A2s)
- 553000
- Homologations
- IEC
- Power loss (W)
- 149
- Resistance (ohm)
- 0,0051
- Min breaking current I3(A)
- 800
Alternatives
Accessories
Available
for High voltage fuses AC
Metal plate 442mm for HV fuseholder
3100502.1.0
Product available on request
Available
for High voltage fuses AC
Storage holders 24kV
3300601.0.0
Product available on request
Available
for High voltage fuses AC
Fuse holder 24kV 442mm indoor up to 200A
3100502.0.0
€232.42
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
Available
for High voltage fuses AC
Fuse holder 24kV 442mm outdoor up to 200A
3100601.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 660mm
3100110.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 400mm
3100113.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 970mm
3100114.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 250mm
3100116.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 1200mm
3100117.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting oilresistent 660m PTFE
3100210.0.0
Product available on request
