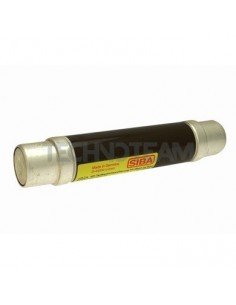

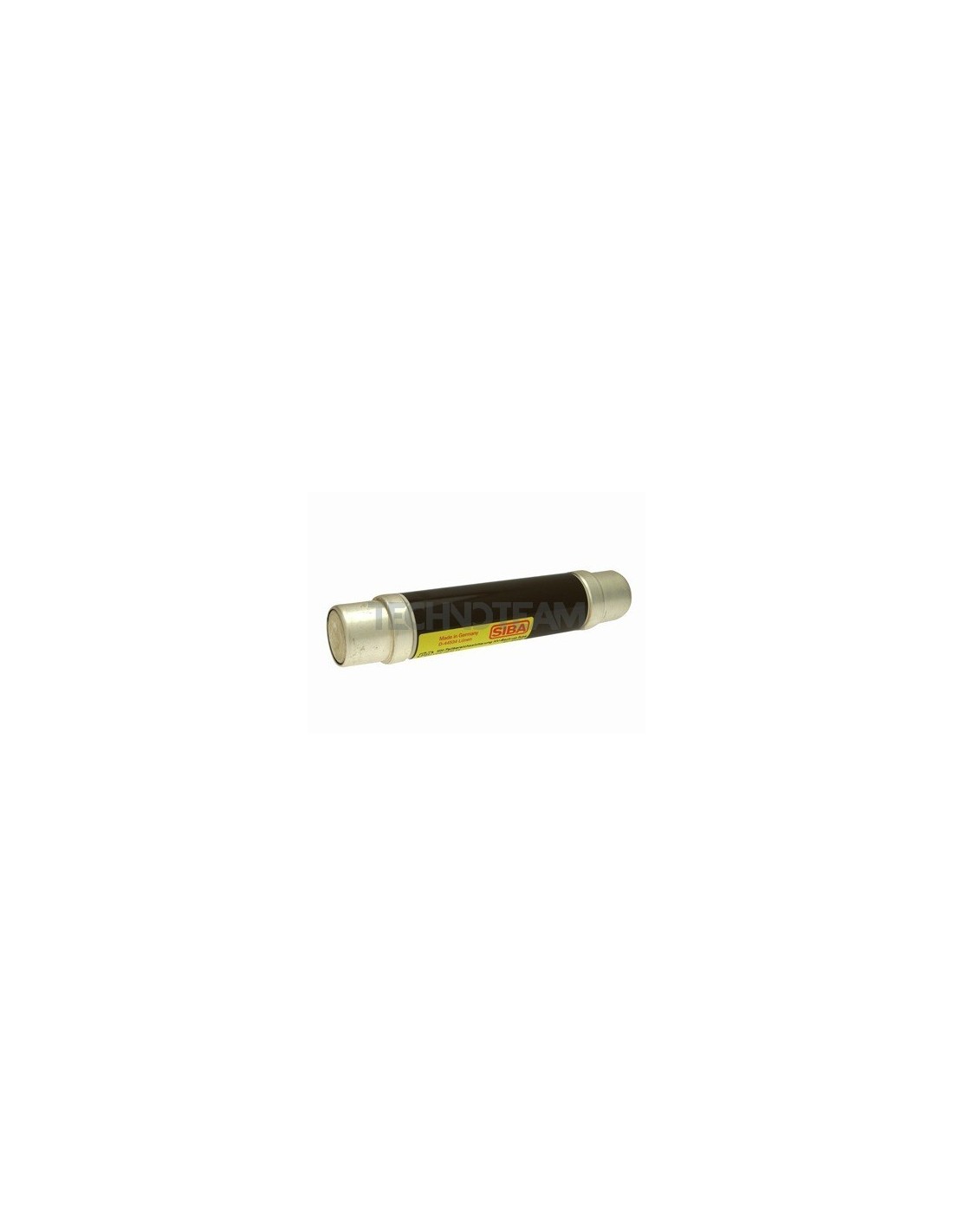

Fuse 17,5kV 53x192 back-up no striker 1A

    Fuse 17,5kV 53x192 back-up no striker 1A

    SIBA
    3017911.1.0
    Product available on request

    Product Request:


    Fuse 17,5kV 53x192 back-up no striker 1A

    Fuse 17,5kV 53x192 back-up no striker 1A

    do not include special characters

    * Required fields



    Class
    HH Back up
    Rated current In (A)
    1
    Rated Voltage Un AC (V)
    17500
    Rated break.capacity I1 AC (A)
    63000
    Voltage of total I2t test
    15225
    Weight (g)
    1200
    Format
    Cylindrical
    Dimension
    53x192mm
    Pre-arcing I2t value (A2s)
    0,63
    Total I2t value (A2s)
    1,8
    Homologations
    IEC
    Power loss (W)
    6,2
    Resistance (ohm)
    4,64
    Min breaking current I3(A)
    8
