Available

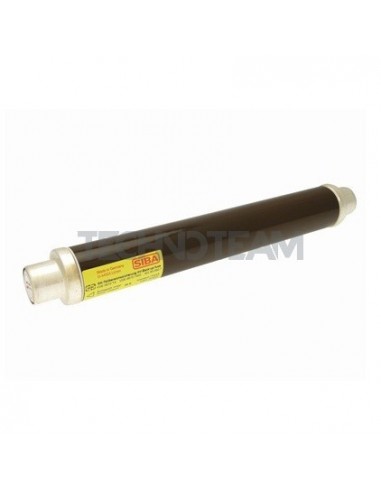

for High voltage fuses AC
Storage holders 24kV
3300601.0.0
Product available on request
- Class
- HH Back up
- Rated current In (A)
- 100
- Rated Voltage Un AC (V)
- 10000
- Rated break.capacity I1 AC (A)
- 63000
- Voltage of total I2t test
- 8700
- Weight (g)
- 3620
- Format
- Cylindrical
- Dimension
- 67x442mm
- Pre-arcing I2t value (A2s)
- 28000
- Total I2t value (A2s)
- 151000
- Homologations
- IEC
- Power loss (W)
- 138
- Resistance (ohm)
- 0,014
- Min breaking current I3(A)
- 450
Accessories
Available
for High voltage fuses AC
Fuse holder 24kV 442mm indoor up to 200A
3100502.0.0
€232.42
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
Available
for High voltage fuses AC
Fuse holder 24kV 442mm outdoor up to 200A
3100601.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 660mm
3100110.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 400mm
3100113.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 970mm
3100114.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 250mm
3100116.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 1200mm
3100117.0.0
Product available on request
