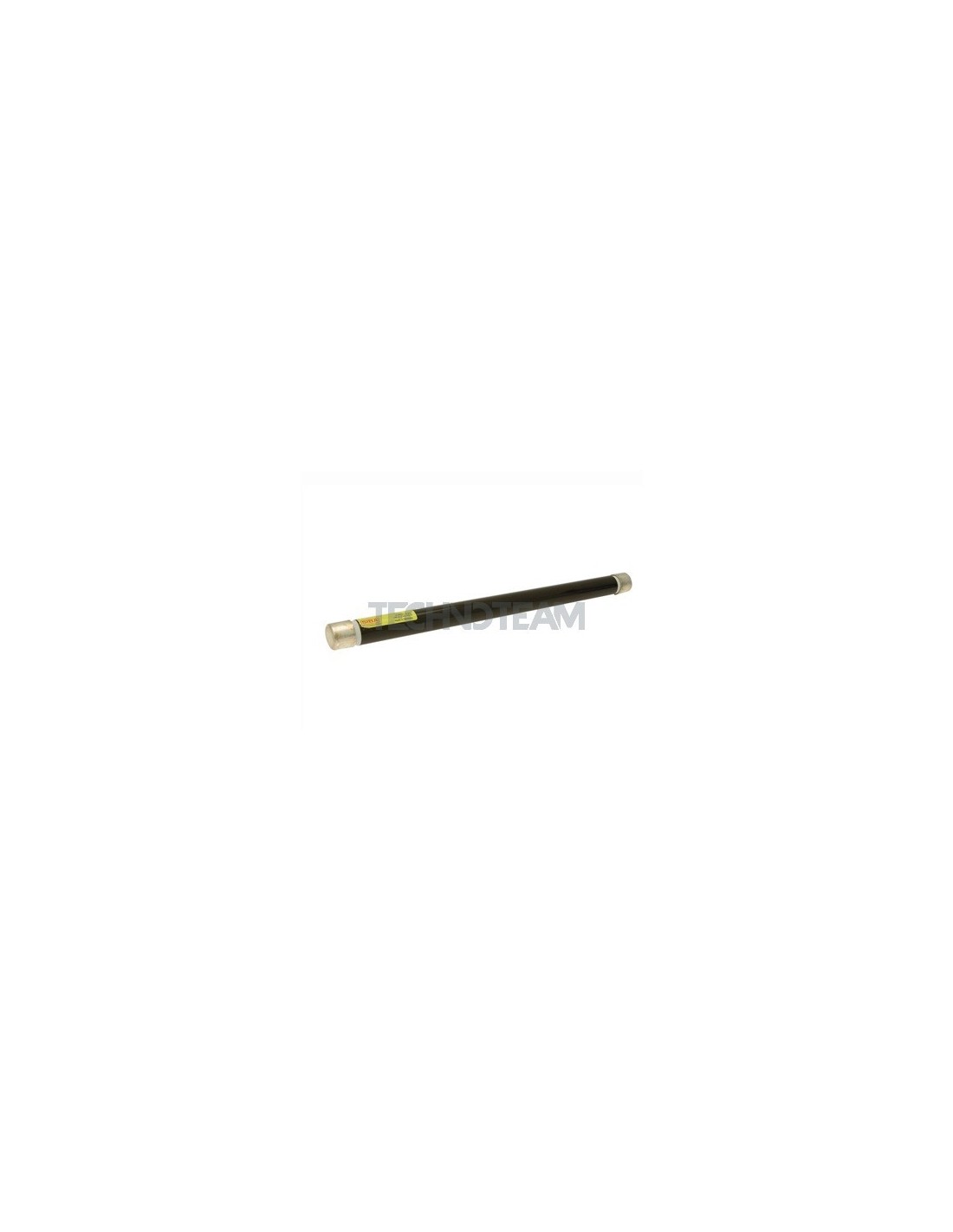

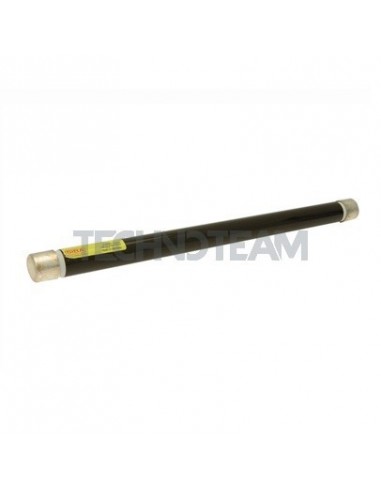

Fuse 17,5kV 24x359 TV protection ANSI 2E

    Fuse 17,5kV 24x359 TV protection ANSI 2E

    SIBA
    3037911.2E.0
    Product available on request

    Product Request:


    Fuse 17,5kV 24x359 TV protection ANSI 2E

    Fuse 17,5kV 24x359 TV protection ANSI 2E

    do not include special characters

    * Required fields



    Class
    HH Back up
    Rated current In (A)
    2
    Rated Voltage Un AC (V)
    17500
    Rated break.capacity I1 AC (A)
    36000
    Voltage of total I2t test
    17500
    Weight (g)
    400
    Format
    BS
    Dimension
    24x359mm
    Pre-arcing I2t value (A2s)
    0
    Total I2t value (A2s)
    0
    Homologations
    IEC
    Power loss (W)
    13
    E-Rating
    2

    Accessories
