Available

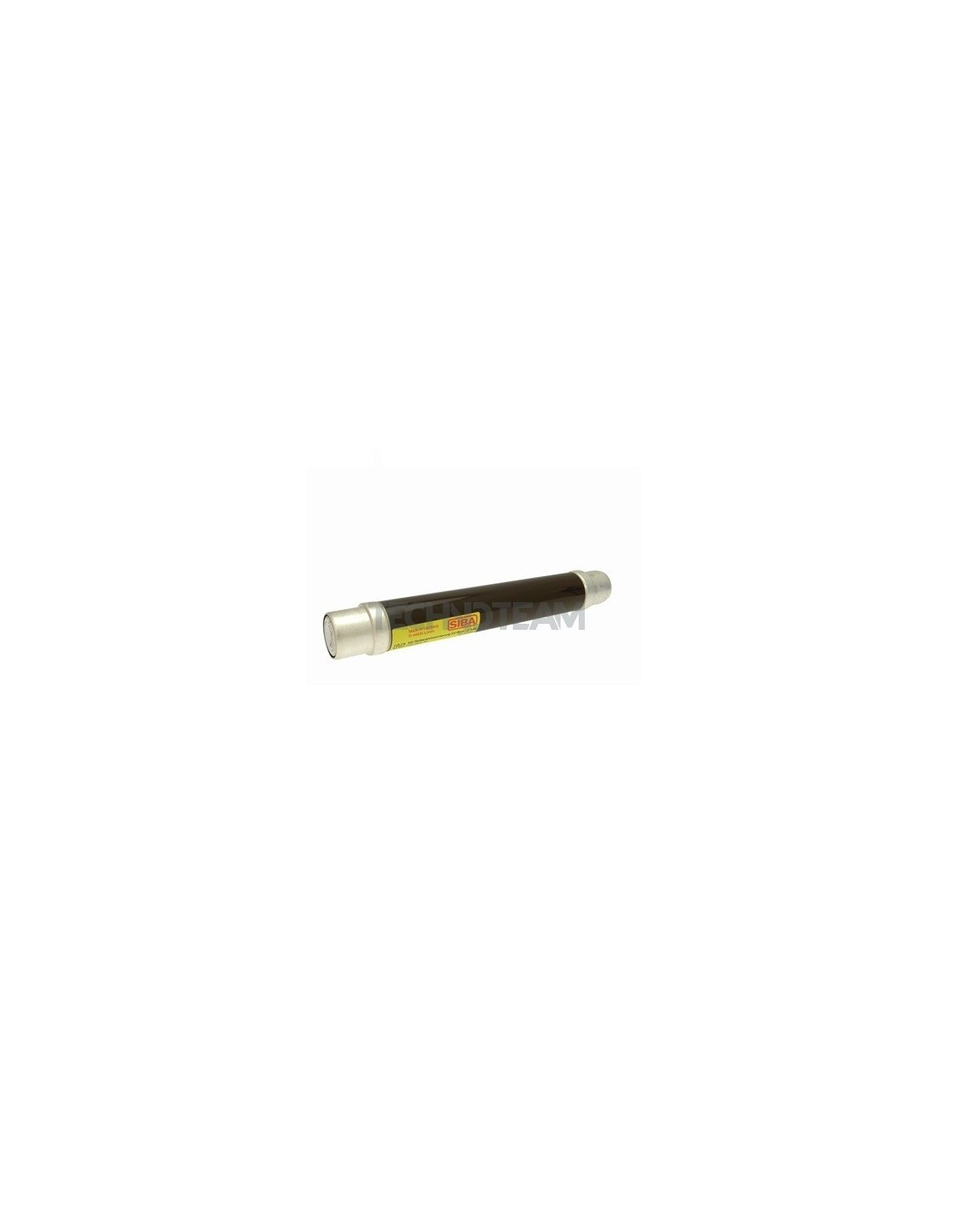

for High voltage fuses AC
Adapter for fuses from 292mm to 442mm
3400601.0.0
Product available on request
- Class
- HH Back up
- Rated current In (A)
- 0,5
- Rated Voltage Un AC (V)
- 6000
- Rated break.capacity I1 AC (A)
- 63000
- Voltage of total I2t test
- 5220
- Weight (g)
- 1640
- Format
- Cylindrical
- Dimension
- 53x292mm
- Pre-arcing I2t value (A2s)
- 1,6
- Total I2t value (A2s)
- 5,9
- Homologations
- IEC
- Power loss (W)
- 6,1
- Resistance (ohm)
- 22,13
- Min breaking current I3(A)
- 5
Accessories
Available
for High voltage fuses AC
Fuse holder 12kV 442mm outdoor up to 200A
3100401.0.0
Product available on request
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
Available
for High voltage fuses AC
Fuse holder 12kV 292mm indoor up to 200A
3100302.0.0
€202.58
