Available
High Voltage fuses

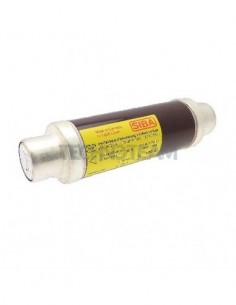

Fuse 12kV 67x192 back-up with striker 31,5A 80N
SIBA SIBA
3026713.31,5.0
Product available on request
€75.53
VAT excl.
- Class
- HH Back up
- Rated current In (A)
- 31,5
- Rated Voltage Un AC (V)
- 7200
- Rated break.capacity I1 AC (A)
- 80000
- Voltage of total I2t test
- 6264
- Weight (g)
- 1200
- Format
- Cylindrical
- Dimension
- 53x192mm
- Pre-arcing I2t value (A2s)
- 1400
- Total I2t value (A2s)
- 12400
- Homologations
- IEC
- Power loss (W)
- 25
- Resistance (ohm)
- 0,018
- Min breaking current I3(A)
- 110
Alternatives
Accessories
Available
for High voltage fuses AC
Extention fos HV fuses lenght from 192mm to 442mm
3400602.0.0
Product available on request
Available
for High voltage fuses AC
Extention fos HV fuses lenght from 192mm to 292mm
3400402.0.0
Product available on request
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Fuse holder 7,2kV 192mm outdoor up to 200A
3100201.0.0
Product available on request
Available
for High voltage fuses AC
Fuse holder 7,2kV 192mm indoor up to 200A
3100102.0.0
€186.24
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 660mm
3100110.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 400mm
3100113.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 970mm
3100114.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 250mm
3100116.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 1200mm
3100117.0.0
Product available on request
