Available

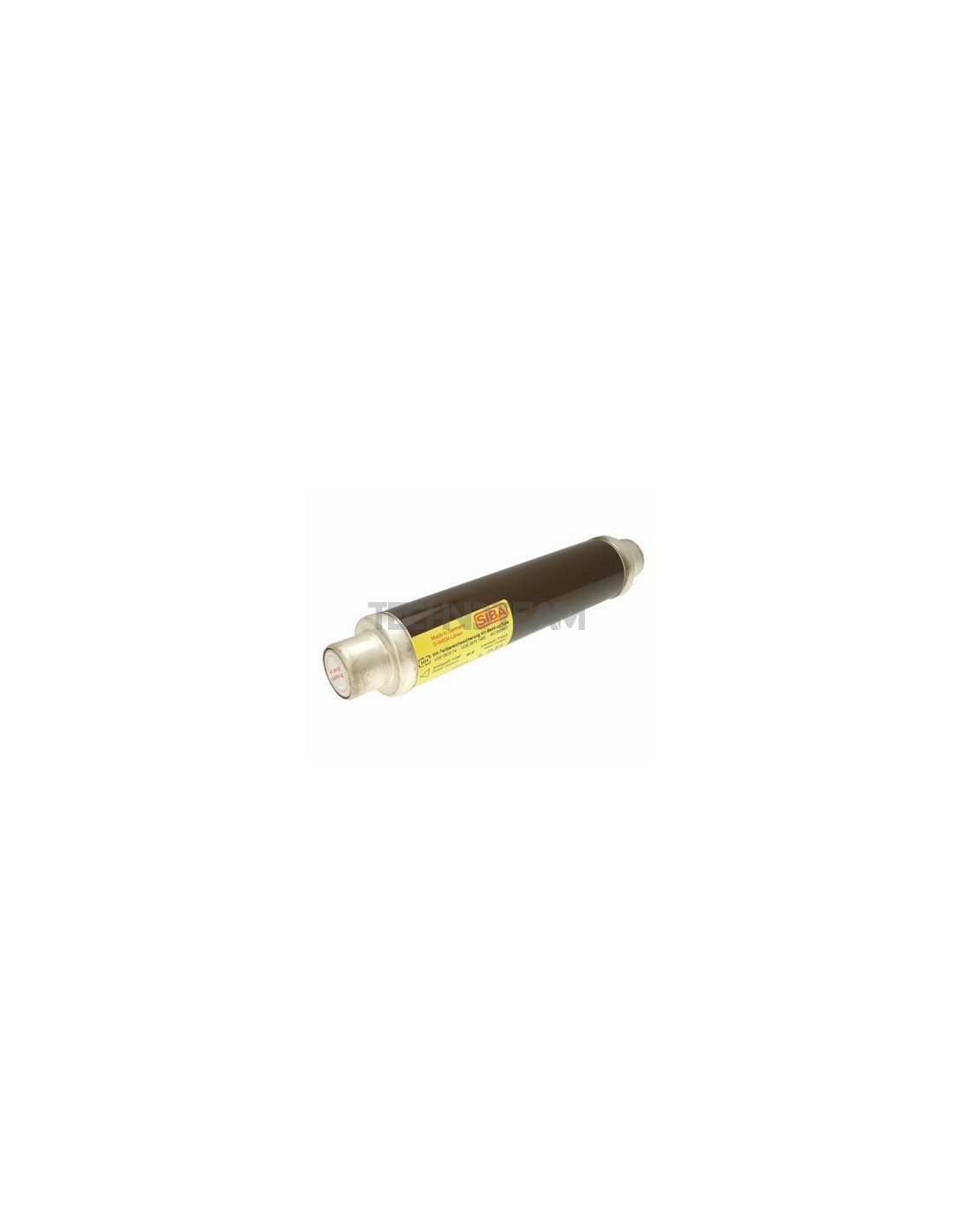

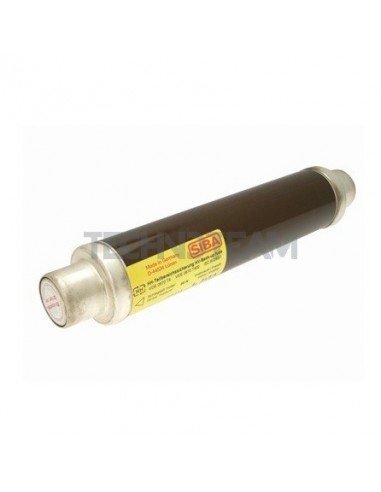

for High voltage fuses AC
Adapter for fuses from 292mm to 442mm
3400601.0.0
Product available on request
- Class
- HH Back up
- Rated current In (A)
- 20
- Rated Voltage Un AC (V)
- 24000
- Rated break.capacity I1 AC (A)
- 63000
- Voltage of total I2t test
- 20880
- Weight (g)
- 2550
- Format
- Cylindrical
- Dimension
- 67x292mm
- Pre-arcing I2t value (A2s)
- 545
- Total I2t value (A2s)
- 7000
- Homologations
- IEC
- Power loss (W)
- 46
- Resistance (ohm)
- 0,086
- Min breaking current I3(A)
- 70
Accessories
Available
for High voltage fuses AC
Storage holders 12kV
3300401.0.0
Product available on request
Available
for High voltage fuses AC
Fuse holder 24kV 292mm indoor up to 200A
3122101.0.0
Product available on request
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses (up to 200A)
3100302.20.0
€16.50
Available
for High voltage fuses AC
Clip for MT DIN diam 45mm fuses & connection bar up to 200A
3400201.0.0
€26.20
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 660mm
3100110.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 400mm
3100113.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 970mm
3100114.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 250mm
3100116.0.0
Product available on request
Available
for High voltage fuses AC
HV-Microswitch fitting lenght 1200mm
3100117.0.0
Product available on request
