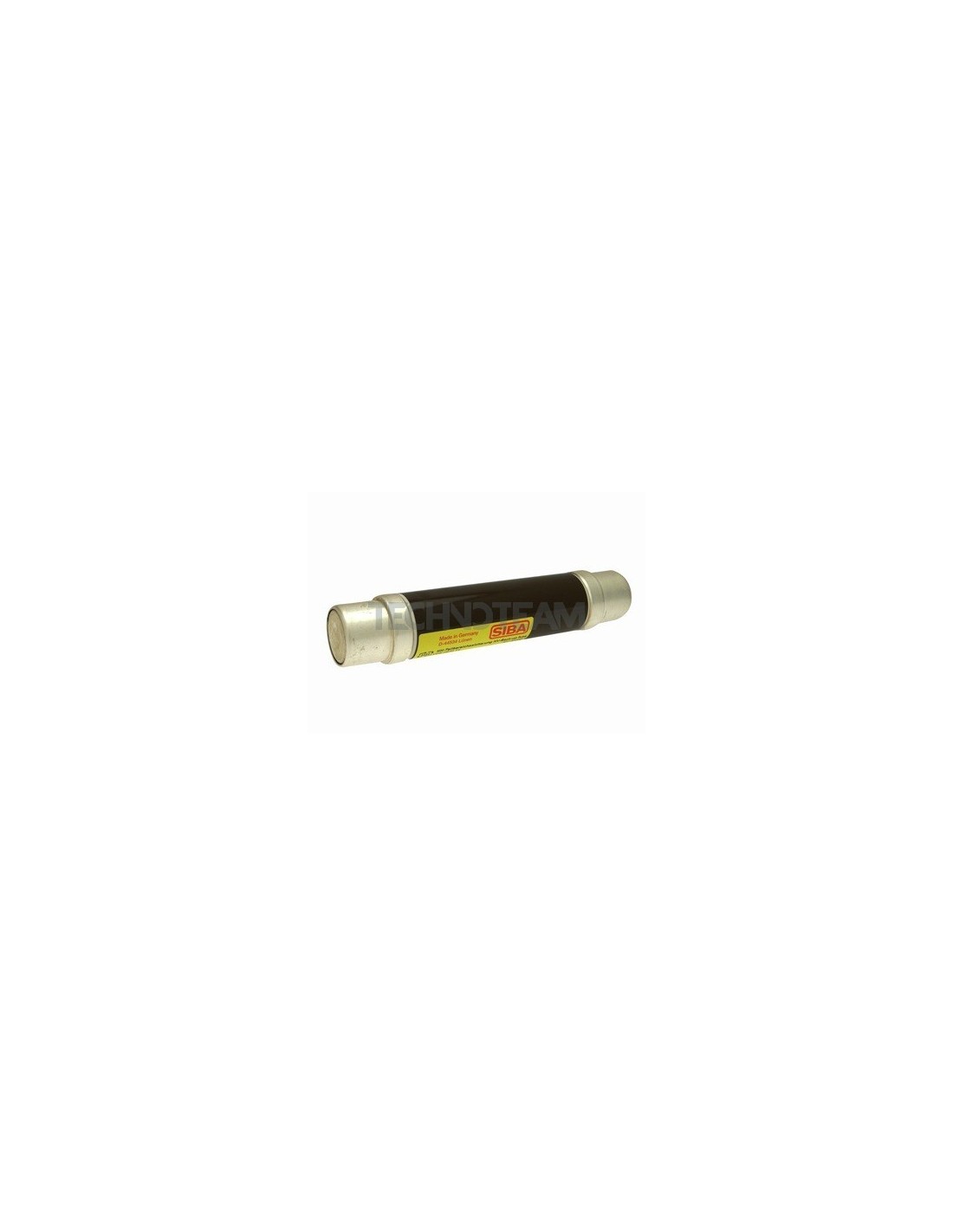

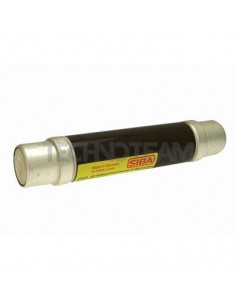

Fuse DIN-VT 12kV 53x192 no striker 0,5A

    Fuse DIN-VT 12kV 53x192 no striker 0,5A

    SIBA
    3011911.0,5.0
    Product available on request

    Product Request:


    Fuse DIN-VT 12kV 53x192 no striker 0,5A

    Fuse DIN-VT 12kV 53x192 no striker 0,5A

    do not include special characters

    * Required fields



    Class
    HH Back up
    Rated current In (A)
    0,5
    Rated Voltage Un AC (V)
    6000
    Rated break.capacity I1 AC (A)
    80000
    Voltage of total I2t test
    5220
    Weight (g)
    1500
    Format
    Cylindrical
    Dimension
    53x192mm
    Pre-arcing I2t value (A2s)
    1,6
    Total I2t value (A2s)
    5,9
    Homologations
    IEC
    Power loss (W)
    6,1
    Resistance (ohm)
    22,13
    Min breaking current I3(A)
    5

    Accessories
