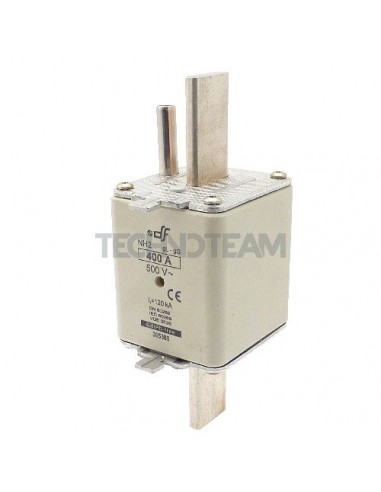

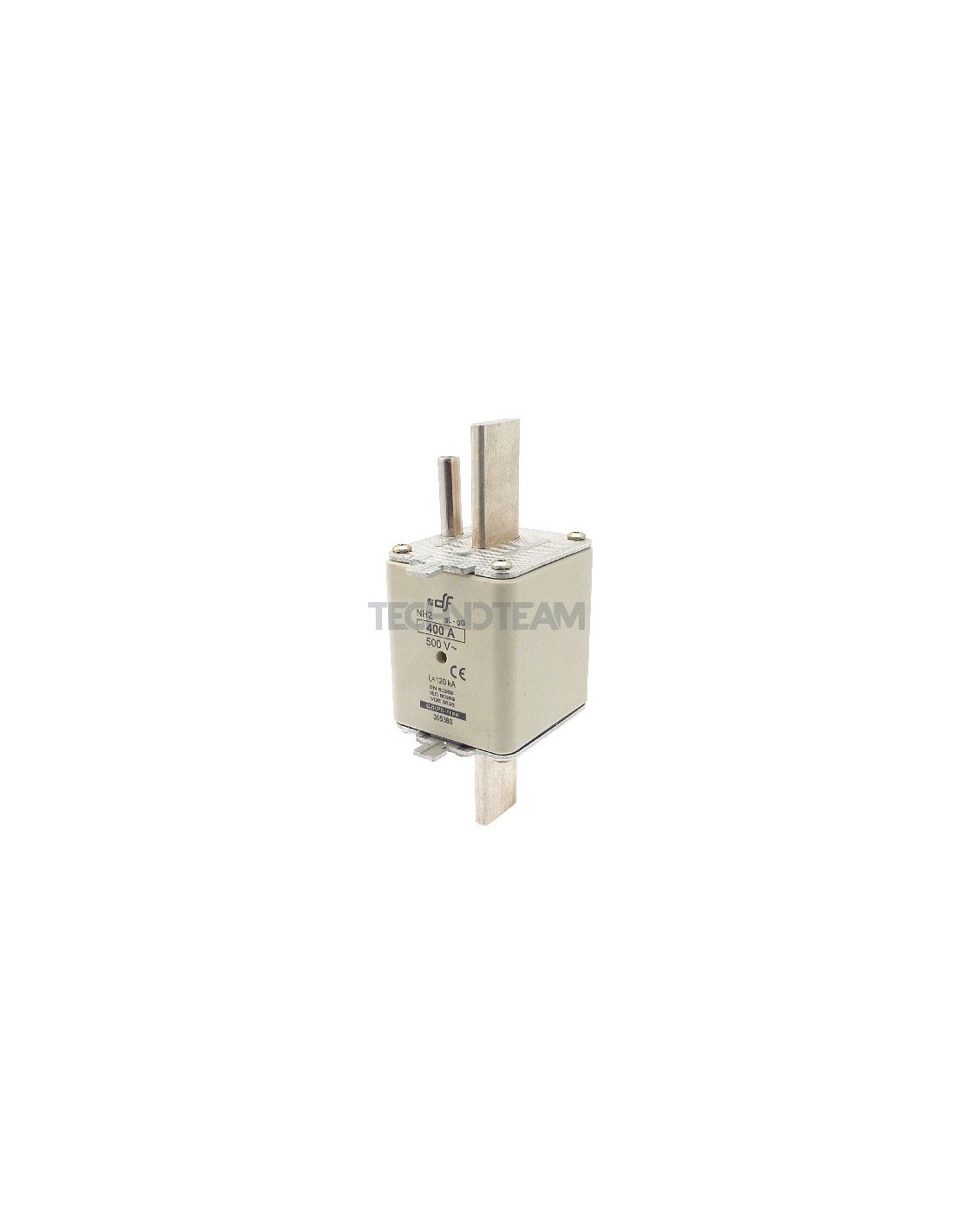

Fuse NH2 aM 690V with striker 250A

Manufacturer: DF

Reference 398360.0.0

€33.81

VAT excl.

Product Details

Class: aM
Rated current In (A): 250
Rated Voltage Un AC (V): 690
Rated break.capacity I1 AC (A): 80000
Voltage of total I2t test: 690
Weight (g): 635
Format: NH knife contact
Dimension: NH2
Pre-arcing I2t value (A2s): 291000
Total I2t value (A2s): 866809
Homologations: IEC
Power loss (W): 16,5

Accessories

Fuse holder polyester NH2 1P with microswitch DIN rail/screw

Fuse holder polyester NH2 1P with microswitch DIN rail/screw 2

Available

for NH knife fuses

Fuse holder polyester NH2 1P with microswitch DIN rail/screw

356400.0.0

Rated current In (A)

400

Rated Voltage Un AC (V)

800

Homologations

IEC

Fuses format

NH knife contact

Fuses dimension

NH2

Rated Voltage Un DC (V)

750

Number of phase

Max power dissipation (W)

€70.43

Available

for NH knife fuses

Grip handle NH00-0-1-2-3 standard

2200102.0.0

Fuses format

NH knife contact

Fuses dimension

NH000 NH00 NH0 NH1 NH2 NH3

€22.66

Grip handle NH00-0-1-2-3 standard with leather cuff

Available

for NH knife fuses

Grip handle NH00-0-1-2-3 standard with leather cuff

2200105.0.0

Rated current In (A)

1000

Fuses format

NH knife contact

Fuses dimension

NH000 NH00 NH0 NH1 NH2 NH3

€121.87

Available

for NH knife fuses

Grip handle NH 000-00-0-1-2-3-4-4a

340001.0.0

Fuses format

NH knife contact

Fuses dimension

NH000 NH00 NH0 NH1 NH2 NH3 NH4 NH4a

€15.55
