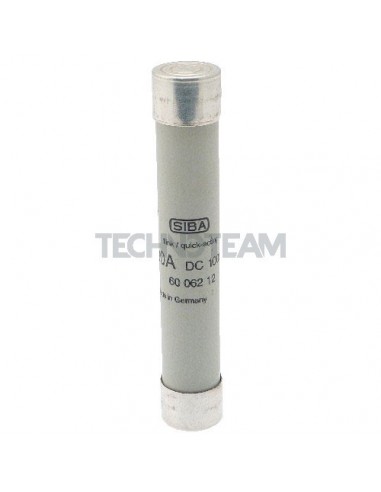

Fuse 22x127mm F 1000VDC 40A

    Fuse 22x127mm F 1000VDC 40A

    SIBA
    6006212.40.0
    Product available on request

    Product Request:


    Fuse 22x127mm F 1000VDC 40A

    Fuse 22x127mm F 1000VDC 40A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 12 pcs

    This product has a minimum quantity of 12 and sold by 12

    Download

    Catalog
    Class
    F
    Rated current In (A)
    40
    Rated break.capacity I1 AC (A)
    25000
    Voltage of total I2t test
    690
    Weight (g)
    100
    Format
    Cylindrical
    Dimension
    22x127mm
    Pre-arcing I2t value (A2s)
    940
    Total I2t value (A2s)
    11300
    Power loss (W)
    19
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    25000
    Resistance (ohm)
    7
    Time costant L/R (ms)
    1
    Resistance (Mohm)
    7
