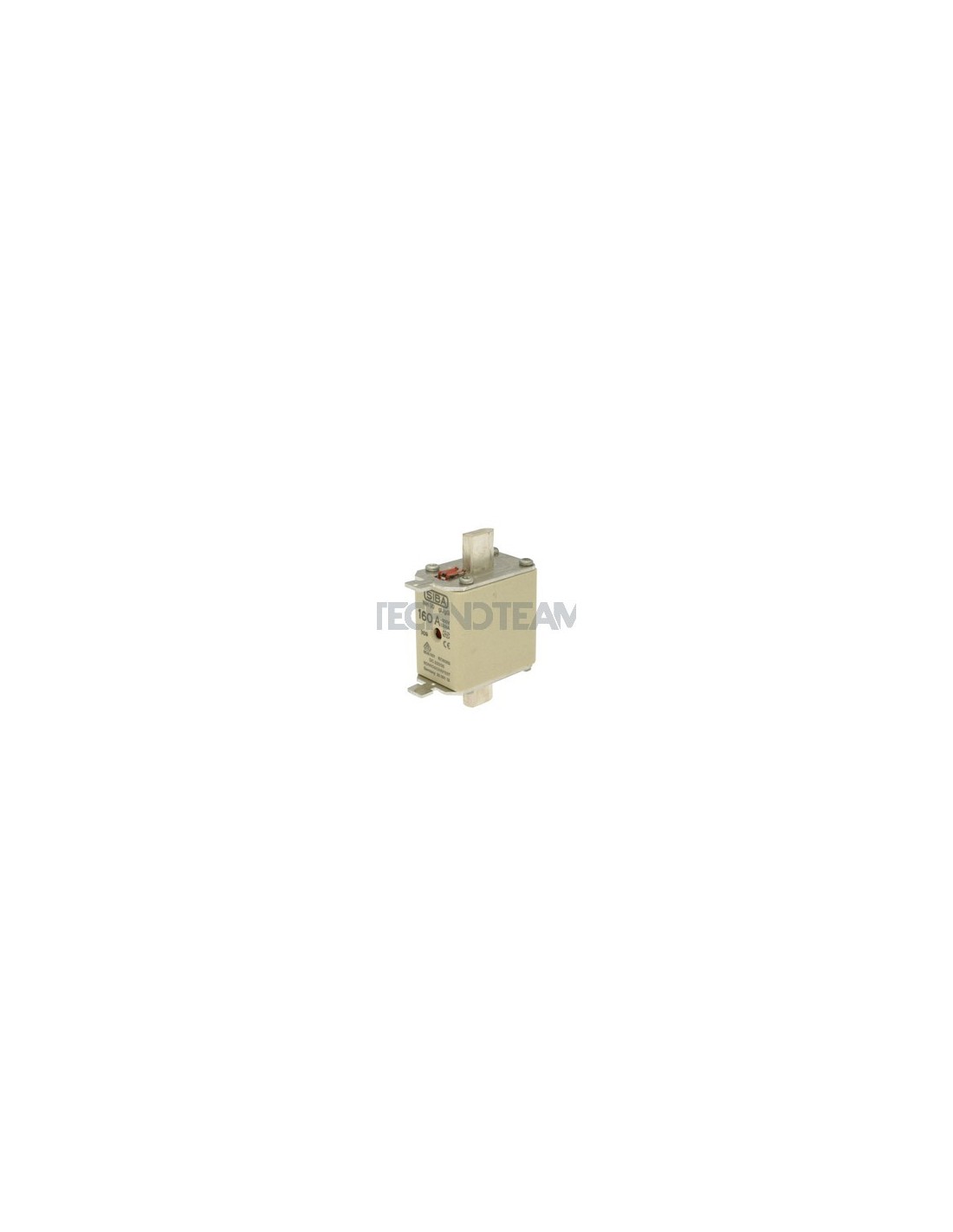

Fuse NH00 TY-gG 500V 10A

    Fuse NH00 TY-gG 500V 10A

    SIBA
    2000116.10.0
    Product available on request

    Product Request:

    Fuse NH00 TY-gG 500V 10A

    Fuse NH00 TY-gG 500V 10A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    gG
    Rated current In (A)
    10
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    120000
    Voltage of total I2t test
    318
    Weight (g)
    160
    Format
    NH knife contact
    Dimension
    NH00
    Pre-arcing I2t value (A2s)
    300
    Total I2t value (A2s)
    520
    Homologations
    IEC
    Power loss (W)
    2,8

    Accessories

    Fuse holder metal/ceramic NH00 160A 1pole
      Available
      for NH knife fuses

      Fuse holder metal/ceramic NH00 160A 1pole

      2100101.0.0
      Rated current In (A)
      160
      Rated Voltage Un AC (V)
      690
      Homologations
      IEC
      Fuses format
      NH knife contact
      Fuses dimension
      NH00
      Number of phase
      1
      Max power dissipation (W)
      12

      Product available on request

      Switch disconnector NH00 3P top bridge clamps - Busbar
        Available
        Horizontal switch disconnectors for NH fuses

        Switch disconnector NH00 3P top bridge clamps - Busbar

        63-823259-011.0.0
        Rated current In (A)
        160
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC
        Fuses format
        NH knife contact
        Fuses dimension
        NH00
        Rated Voltage Un DC (V)
        440
        Number of phase
        3
        Max power dissipation (W)
        12

        Product available on request

        Switch disc. NH00 3P top bridge clamps - bottom Vclamp
          Available
          Horizontal switch disconnectors for NH fuses

          Switch disc. NH00 3P top bridge clamps - bottom Vclamp

          63-823341-011.0.0
          Rated current In (A)
          160
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC
          Fuses format
          NH knife contact
          Fuses dimension
          NH00
          Rated Voltage Un DC (V)
          440
          Number of phase
          3
          Max power dissipation (W)
          12

          Product available on request

          Switch disc. NH00 3P top M8 screw term - bottom prisma clamp
            Available
            Horizontal switch disconnectors for NH fuses

            Switch disc. NH00 3P top M8 screw term - bottom prisma clamp

            63-823341-141.0.0
            Rated current In (A)
            160
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC
            Fuses format
            NH knife contact
            Fuses dimension
            NH00
            Rated Voltage Un DC (V)
            440
            Number of phase
            3
            Max power dissipation (W)
            12

            Product available on request

            Switch disconnector NH00 3P top V-terminal clamps - Busbar
              Available
              Horizontal switch disconnectors for NH fuses

              Switch disconnector NH00 3P top V-terminal clamps - Busbar

              63-823259-051.0.0
              Rated current In (A)
              160
              Rated Voltage Un AC (V)
              690
              Homologations
              IEC
              Fuses format
              NH knife contact
              Fuses dimension
              NH00
              Rated Voltage Un DC (V)
              440
              Number of phase
              3
              Max power dissipation (W)
              12

              Product available on request

              Switch disc. NH00 3P top M8 screw terminal with lug - Busbar
                Available
                Horizontal switch disconnectors for NH fuses

                Switch disc. NH00 3P top M8 screw terminal with lug - Busbar

                63-823259-121.0.0
                Rated current In (A)
                160
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC
                Fuses format
                NH knife contact
                Fuses dimension
                NH00
                Rated Voltage Un DC (V)
                440
                Number of phase
                3
                Max power dissipation (W)
                12

                Product available on request

                Switch disconnector NH00 3P bottom frame clamps - Busbar
                  Available
                  Horizontal switch disconnectors for NH fuses

                  Switch disconnector NH00 3P bottom frame clamps - Busbar

                  63-823259-161.0.0
                  Rated current In (A)
                  160
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC
                  Fuses format
                  NH knife contact
                  Fuses dimension
                  NH00
                  Rated Voltage Un DC (V)
                  440
                  Number of phase
                  3
                  Max power dissipation (W)
                  12

                  Product available on request

                  Switch disc NH00 3P top M8 screw term - bottom double Vclamp
                    Available
                    Horizontal switch disconnectors for NH fuses

                    Switch disc NH00 3P top M8 screw term - bottom double Vclamp

                    63-823341-061.0.0
                    Rated current In (A)
                    160
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC
                    Fuses format
                    NH knife contact
                    Fuses dimension
                    NH00
                    Rated Voltage Un DC (V)
                    440
                    Number of phase
                    3
                    Max power dissipation (W)
                    12

                    Product available on request

                    Switch disconnector NH00 3P M8 screw terminal
                      Available
                      Horizontal switch disconnectors for NH fuses

                      Switch disconnector NH00 3P M8 screw terminal

                      63-823256-121.0.0
                      Rated current In (A)
                      160
                      Rated Voltage Un AC (V)
                      690
                      Homologations
                      IEC
                      Fuses format
                      NH knife contact
                      Fuses dimension
                      NH00
                      Rated Voltage Un DC (V)
                      440
                      Number of phase
                      3
                      Max power dissipation (W)
                      12
                      €58.15
                      Switch disc NH00 3P top bridge clamps - bottom double Vclamp
                        Available
                        Horizontal switch disconnectors for NH fuses

                        Switch disc NH00 3P top bridge clamps - bottom double Vclamp

                        63-823341-051.0.0
                        Rated current In (A)
                        160
                        Rated Voltage Un AC (V)
                        690
                        Homologations
                        IEC
                        Fuses format
                        NH knife contact
                        Fuses dimension
                        NH00
                        Rated Voltage Un DC (V)
                        440
                        Number of phase
                        3
                        Max power dissipation (W)
                        12

                        Product available on request

                        Switch disconnector NH00 3P top M8 screw terminal - Busbar
                          Available
                          Horizontal switch disconnectors for NH fuses

                          Switch disconnector NH00 3P top M8 screw terminal - Busbar

                          63-823259-021.0.0
                          Rated current In (A)
                          160
                          Rated Voltage Un AC (V)
                          690
                          Homologations
                          IEC
                          Fuses format
                          NH knife contact
                          Fuses dimension
                          NH00
                          Rated Voltage Un DC (V)
                          440
                          Number of phase
                          3
                          Max power dissipation (W)
                          12
                          €102.46
                          Switch disc NH00 3P bridge clams power from top-Elect ctrl
                            Available
                            Horizontal switch disconnectors for NH fuses

                            Switch disc NH00 3P bridge clams power from top-Elect ctrl

                            63-823304-011.0.0
                            Rated current In (A)
                            160
                            Rated Voltage Un AC (V)
                            690
                            Homologations
                            IEC
                            Fuses format
                            NH knife contact
                            Fuses dimension
                            NH00
                            Rated Voltage Un DC (V)
                            440
                            Number of phase
                            3
                            Max power dissipation (W)
                            12

                            Product available on request

                            Switch disc NH00 3P top bridge clamps - Busbar - Elect ctrl
                              Available
                              Horizontal switch disconnectors for NH fuses

                              Switch disc NH00 3P top bridge clamps - Busbar - Elect ctrl

                              63-823345-011.0.0
                              Rated current In (A)
                              160
                              Rated Voltage Un AC (V)
                              690
                              Homologations
                              IEC
                              Fuses format
                              NH knife contact
                              Fuses dimension
                              NH00
                              Rated Voltage Un DC (V)
                              440
                              Number of phase
                              3
                              Max power dissipation (W)
                              12

                              Product available on request

                              Switch disc. NH00 3P bottom V-terminal clamps - Busbar
                                Available
                                Horizontal switch disconnectors for NH fuses

                                Switch disc. NH00 3P bottom V-terminal clamps - Busbar

                                63-823259-061.0.0
                                Rated current In (A)
                                160
                                Rated Voltage Un AC (V)
                                690
                                Homologations
                                IEC
                                Fuses format
                                NH knife contact
                                Fuses dimension
                                NH00
                                Rated Voltage Un DC (V)
                                440
                                Number of phase
                                3
                                Max power dissipation (W)
                                12

                                Product available on request

                                Switch disconnector NH00 3P top frame clamps - Busbar
                                  Available
                                  Horizontal switch disconnectors for NH fuses

                                  Switch disconnector NH00 3P top frame clamps - Busbar

                                  63-823259-151.0.0
                                  Rated current In (A)
                                  160
                                  Rated Voltage Un AC (V)
                                  690
                                  Homologations
                                  IEC
                                  Fuses format
                                  NH knife contact
                                  Fuses dimension
                                  NH00
                                  Rated Voltage Un DC (V)
                                  440
                                  Number of phase
                                  3
                                  Max power dissipation (W)
                                  12

                                  Product available on request

                                  Switch disconnector NH00 3P bridge clamps
                                    Available
                                    Horizontal switch disconnectors for NH fuses

                                    Switch disconnector NH00 3P bridge clamps

                                    63-823256-111.0.0
                                    Rated current In (A)
                                    160
                                    Rated Voltage Un AC (V)
                                    690
                                    Homologations
                                    IEC
                                    Fuses format
                                    NH knife contact
                                    Fuses dimension
                                    NH00
                                    Rated Voltage Un DC (V)
                                    440
                                    Number of phase
                                    3
                                    Max power dissipation (W)
                                    12

                                    Product available on request

                                    Switch disc. NH00 3P top bridge clamps - bottom prisma clamp
                                      Available
                                      Horizontal switch disconnectors for NH fuses

                                      Switch disc. NH00 3P top bridge clamps - bottom prisma clamp

                                      63-823341-131.0.0
                                      Rated current In (A)
                                      160
                                      Rated Voltage Un AC (V)
                                      690
                                      Homologations
                                      IEC
                                      Fuses format
                                      NH knife contact
                                      Fuses dimension
                                      NH00
                                      Rated Voltage Un DC (V)
                                      440
                                      Number of phase
                                      3
                                      Max power dissipation (W)
                                      12

                                      Product available on request

                                      Switch disconnector NH00 3P bridge clamps - shrouds
                                        Available
                                        Horizontal switch disconnectors for NH fuses

                                        Switch disconnector NH00 3P bridge clamps - shrouds

                                        63-823256-141.0.0
                                        Rated current In (A)
                                        160
                                        Rated Voltage Un AC (V)
                                        690
                                        Homologations
                                        IEC
                                        Fuses format
                                        NH knife contact
                                        Fuses dimension
                                        NH00
                                        Rated Voltage Un DC (V)
                                        440
                                        Number of phase
                                        3
                                        Max power dissipation (W)
                                        12

                                        Product available on request

                                        Switch disc NH00 3P bottom bridge clamp -Busbar - Elect ctrl
                                          Available
                                          Horizontal switch disconnectors for NH fuses

                                          Switch disc NH00 3P bottom bridge clamp -Busbar - Elect ctrl

                                          63-823345-021.0.0
                                          Rated current In (A)
                                          160
                                          Rated Voltage Un AC (V)
                                          690
                                          Homologations
                                          IEC
                                          Fuses format
                                          NH knife contact
                                          Fuses dimension
                                          NH00
                                          Rated Voltage Un DC (V)
                                          440
                                          Number of phase
                                          3
                                          Max power dissipation (W)
                                          12

                                          Product available on request

                                          Switch disc NH00 3P bottom bridge clamps - DIN - Elect ctrl
                                            Available
                                            Horizontal switch disconnectors for NH fuses

                                            Switch disc NH00 3P bottom bridge clamps - DIN - Elect ctrl

                                            63-823304-021.0.0
                                            Rated current In (A)
                                            160
                                            Rated Voltage Un AC (V)
                                            690
                                            Homologations
                                            IEC
                                            Fuses format
                                            NH knife contact
                                            Fuses dimension
                                            NH00
                                            Rated Voltage Un DC (V)
                                            440
                                            Number of phase
                                            3
                                            Max power dissipation (W)
                                            12

                                            Product available on request

                                            Switch disc. NH00 3P top M8 screw terminal - bottom Vclamp
                                              Available
                                              Horizontal switch disconnectors for NH fuses

                                              Switch disc. NH00 3P top M8 screw terminal - bottom Vclamp

                                              63-823341-021.0.0
                                              Rated current In (A)
                                              160
                                              Rated Voltage Un AC (V)
                                              690
                                              Homologations
                                              IEC
                                              Fuses format
                                              NH knife contact
                                              Fuses dimension
                                              NH00
                                              Rated Voltage Un DC (V)
                                              440
                                              Number of phase
                                              3
                                              Max power dissipation (W)
                                              12

                                              Product available on request

                                              Switch disc. NH00 3P bottom M8 screw terminal - Busbar
                                                Available
                                                Horizontal switch disconnectors for NH fuses

                                                Switch disc. NH00 3P bottom M8 screw terminal - Busbar

                                                63-823259-041.0.0
                                                Rated current In (A)
                                                160
                                                Rated Voltage Un AC (V)
                                                690
                                                Homologations
                                                IEC
                                                Fuses format
                                                NH knife contact
                                                Fuses dimension
                                                NH00
                                                Rated Voltage Un DC (V)
                                                440
                                                Number of phase
                                                3
                                                Max power dissipation (W)
                                                12

                                                Product available on request

                                                Switch disc. NH00 3P bottom M8 screw term. with lug - Busbar
                                                  Available
                                                  Horizontal switch disconnectors for NH fuses

                                                  Switch disc. NH00 3P bottom M8 screw term. with lug - Busbar

                                                  63-823259-141.0.0
                                                  Rated current In (A)
                                                  160
                                                  Rated Voltage Un AC (V)
                                                  690
                                                  Homologations
                                                  IEC
                                                  Fuses format
                                                  NH knife contact
                                                  Fuses dimension
                                                  NH00
                                                  Rated Voltage Un DC (V)
                                                  440
                                                  Number of phase
                                                  3
                                                  Max power dissipation (W)
                                                  12

                                                  Product available on request

                                                  Switch disconnector NH00 3P V-terminal clamps
                                                    Available
                                                    Horizontal switch disconnectors for NH fuses

                                                    Switch disconnector NH00 3P V-terminal clamps

                                                    63-823256-131.0.0
                                                    Rated current In (A)
                                                    160
                                                    Rated Voltage Un AC (V)
                                                    690
                                                    Homologations
                                                    IEC
                                                    Fuses format
                                                    NH knife contact
                                                    Fuses dimension
                                                    NH00
                                                    Rated Voltage Un DC (V)
                                                    440
                                                    Number of phase
                                                    3
                                                    Max power dissipation (W)
                                                    12

                                                    Product available on request

                                                    Switch disconnector NH00 3P M8 screw - shrouds
                                                      Available
                                                      Horizontal switch disconnectors for NH fuses

                                                      Switch disconnector NH00 3P M8 screw - shrouds

                                                      63-823256-151.0.0
                                                      Rated current In (A)
                                                      160
                                                      Rated Voltage Un AC (V)
                                                      690
                                                      Homologations
                                                      IEC
                                                      Fuses format
                                                      NH knife contact
                                                      Fuses dimension
                                                      NH00
                                                      Rated Voltage Un DC (V)
                                                      440
                                                      Number of phase
                                                      3
                                                      Max power dissipation (W)
                                                      12

                                                      Product available on request

                                                      Switch disconnector NH000-NH00 3P bottom bridge clamps - Bus
                                                        Available
                                                        Horizontal switch disconnectors for NH fuses

                                                        Switch disconnector NH000-NH00 3P bottom bridge clamps - Bus

                                                        63-823259-031.0.0
                                                        Rated current In (A)
                                                        160
                                                        Rated Voltage Un AC (V)
                                                        690
                                                        Homologations
                                                        IEC
                                                        Fuses format
                                                        NH knife contact
                                                        Fuses dimension
                                                        NH00 NH000
                                                        Rated Voltage Un DC (V)
                                                        440
                                                        Number of phase
                                                        3
                                                        Max power dissipation (W)
                                                        12

                                                        Product available on request

                                                        Swich disconn. NH000 3P BS 690V conn. clamp
                                                          Available
                                                          Horizontal switch disconnectors for NH fuses

                                                          Swich disconn. NH000 3P BS 690V conn. clamp

                                                          335005.0.0
                                                          Rated current In (A)
                                                          160
                                                          Rated Voltage Un AC (V)
                                                          690
                                                          Homologations
                                                          IEC
                                                          Fuses format
                                                          NH knife contact
                                                          Fuses dimension
                                                          NH000
                                                          Number of phase
                                                          3
                                                          Max power dissipation (W)
                                                          12
                                                          €94.79
                                                          Swich disconn. NH00 3P BS 690V conn. screw/clamp
                                                            Available
                                                            Horizontal switch disconnectors for NH fuses

                                                            Swich disconn. NH00 3P BS 690V conn. screw/clamp

                                                            335025.0.0
                                                            Rated current In (A)
                                                            160
                                                            Rated Voltage Un AC (V)
                                                            690
                                                            Homologations
                                                            IEC
                                                            Fuses format
                                                            NH knife contact
                                                            Fuses dimension
                                                            NH00
                                                            Number of phase
                                                            3
                                                            Max power dissipation (W)
                                                            12

                                                            Product available on request

                                                            Swich disconn. NH00 3P BS 690V conn. busbar
                                                              Available
                                                              Horizontal switch disconnectors for NH fuses

                                                              Swich disconn. NH00 3P BS 690V conn. busbar

                                                              335040.0.0
                                                              Rated current In (A)
                                                              160
                                                              Rated Voltage Un AC (V)
                                                              690
                                                              Homologations
                                                              IEC
                                                              Fuses format
                                                              NH knife contact
                                                              Fuses dimension
                                                              NH00
                                                              Number of phase
                                                              3
                                                              Max power dissipation (W)
                                                              12

                                                              Product available on request

                                                              Switch disc. NH00 3P V-shape clamps
                                                                Available
                                                                Horizontal switch disconnectors for NH fuses

                                                                Switch disc. NH00 3P V-shape clamps

                                                                63-823256-161.0.0
                                                                Rated current In (A)
                                                                160
                                                                Rated Voltage Un AC (V)
                                                                690
                                                                Homologations
                                                                IEC
                                                                Fuses format
                                                                NH knife contact
                                                                Fuses dimension
                                                                NH00
                                                                Rated Voltage Un DC (V)
                                                                440
                                                                Number of phase
                                                                3
                                                                Max power dissipation (W)
                                                                12

                                                                Product available on request

                                                                Vert. switch NH00 690V 1poles switching V
                                                                  Available
                                                                  Vertical switch disconnectors 800V for NH fuses

                                                                  Vert. switch NH00 690V 1poles switching V

                                                                  63-001414-001.0.0
                                                                  Rated current In (A)
                                                                  160
                                                                  Rated Voltage Un AC (V)
                                                                  690
                                                                  Homologations
                                                                  IEC
                                                                  Fuses format
                                                                  NH knife contact
                                                                  Fuses dimension
                                                                  NH00

                                                                  Product available on request

                                                                  Vert. switch NH00 690V 1poles switching M12
                                                                    Available
                                                                    Vertical switch disconnectors 800V for NH fuses

                                                                    Vert. switch NH00 690V 1poles switching M12

                                                                    63-001414-002.0.0
                                                                    Rated current In (A)
                                                                    160
                                                                    Rated Voltage Un AC (V)
                                                                    690
                                                                    Homologations
                                                                    IEC
                                                                    Fuses format
                                                                    NH knife contact
                                                                    Fuses dimension
                                                                    NH00

                                                                    Product available on request

                                                                    Vert. switch NH00 690V 3poles switching V
                                                                      Available
                                                                      Vertical switch disconnectors 800V for NH fuses

                                                                      Vert. switch NH00 690V 3poles switching V

                                                                      63-001415-001.0.0
                                                                      Rated current In (A)
                                                                      160
                                                                      Rated Voltage Un AC (V)
                                                                      690
                                                                      Homologations
                                                                      IEC
                                                                      Fuses format
                                                                      NH knife contact
                                                                      Fuses dimension
                                                                      NH00

                                                                      Product available on request

                                                                      Vert. switch NH00 690V 3poles switching M12
                                                                        Available
                                                                        Vertical switch disconnectors 800V for NH fuses

                                                                        Vert. switch NH00 690V 3poles switching M12

                                                                        63-001415-002.0.0
                                                                        Rated current In (A)
                                                                        160
                                                                        Rated Voltage Un AC (V)
                                                                        690
                                                                        Homologations
                                                                        IEC
                                                                        Fuses format
                                                                        NH knife contact
                                                                        Fuses dimension
                                                                        NH00

                                                                        Product available on request

                                                                        Vert. switch NH00 690V 1poles switching V
                                                                          Available
                                                                          Vertical switch disconnectors 800V for NH fuses

                                                                          Vert. switch NH00 690V 1poles switching V

                                                                          63-002070-001.0.0
                                                                          Rated current In (A)
                                                                          160
                                                                          Rated Voltage Un AC (V)
                                                                          690
                                                                          Homologations
                                                                          IEC
                                                                          Fuses format
                                                                          NH knife contact
                                                                          Fuses dimension
                                                                          NH00

                                                                          Product available on request

                                                                          Vert. switch NH00 690V 1poles switching M12
                                                                            Available
                                                                            Vertical switch disconnectors 800V for NH fuses

                                                                            Vert. switch NH00 690V 1poles switching M12

                                                                            63-002070-002.0.0
                                                                            Rated current In (A)
                                                                            160
                                                                            Rated Voltage Un AC (V)
                                                                            690
                                                                            Homologations
                                                                            IEC
                                                                            Fuses format
                                                                            NH knife contact
                                                                            Fuses dimension
                                                                            NH00

                                                                            Product available on request

                                                                            Vert. switch NH00 690V 3poles switching V
                                                                              Available
                                                                              Vertical switch disconnectors 800V for NH fuses

                                                                              Vert. switch NH00 690V 3poles switching V

                                                                              63-002071-001.0.0
                                                                              Rated current In (A)
                                                                              160
                                                                              Rated Voltage Un AC (V)
                                                                              690
                                                                              Homologations
                                                                              IEC
                                                                              Fuses format
                                                                              NH knife contact
                                                                              Fuses dimension
                                                                              NH00

                                                                              Product available on request

                                                                              Vert. switch NH00 690V 3poles switching M12
                                                                                Available
                                                                                Vertical switch disconnectors 800V for NH fuses

                                                                                Vert. switch NH00 690V 3poles switching M12

                                                                                63-002071-002.0.0
                                                                                Rated current In (A)
                                                                                160
                                                                                Rated Voltage Un AC (V)
                                                                                690
                                                                                Homologations
                                                                                IEC
                                                                                Fuses format
                                                                                NH knife contact
                                                                                Fuses dimension
                                                                                NH00

                                                                                Product available on request

                                                                                Product added to wishlist
                                                                                Product added to compare.
