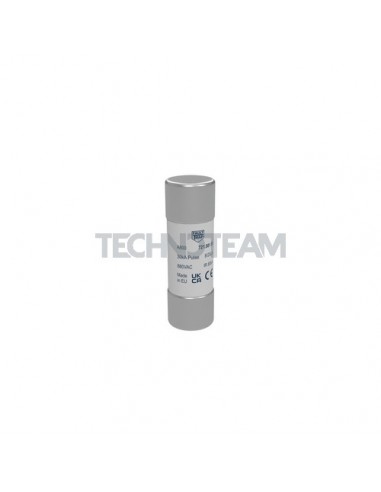

A800 - Fuse 22x65 800V SPD protection 8/20 30kA

    A800 - Fuse 22x65 800V SPD protection 8/20 30kA

    FAULTRAP
    721.081.58.0.0
    Product available on request

    Product Request:

    A800 - Fuse 22x65 800V SPD protection 8/20 30kA

    A800 - Fuse 22x65 800V SPD protection 8/20 30kA

    do not include special characters

    * Required fields



    Download

    Datasheet
    Rated Voltage Un AC (V)
    800
    Rated break.capacity I1 AC (A)
    80000
    Voltage of total I2t test
    880
    Format
    Cylindrical
    Dimension
    22x65mm
    Pre-arcing I2t value (A2s)
    36000
    Total I2t value (A2s)
    250000
    Homologations
    IEC
    Catalog name
    A800

    Accessories

    ZPYT - Fuse holder 22x65 1000VAC/1500VDC 3P
      Available
      for Cylindrical fuses

      ZPYT - Fuse holder 22x65 1000VAC/1500VDC 3P

      942.799.14.0.0
      Rated current In (A)
      100
      Rated Voltage Un AC (V)
      1000
      Homologations
      IEC
      Fuses format
      Cylindrical
      Fuses dimension
      22x65mm
      Rated Voltage Un DC (V)
      1500
      Number of phase
      3
      Max power dissipation (W)
      12

      Product available on request

      ZPYT - Fuse holder 22x65 1000VAC/1500VDC IEC/UL 1P
        Available
        for Cylindrical fuses

        ZPYT - Fuse holder 22x65 1000VAC/1500VDC IEC/UL 1P

        845.025.35.0.0
        Rated current In (A)
        100
        Rated Voltage Un AC (V)
        1000
        Homologations
        IEC & UL
        Fuses format
        Cylindrical
        Fuses dimension
        22x65mm
        Rated Voltage Un DC (V)
        1500
        Number of phase
        1
        Max power dissipation (W)
        12

        Product available on request

        ZPYT - Fuse holder 22x65 1000VAC/1500VDC 2P
          Available
          for Cylindrical fuses

          ZPYT - Fuse holder 22x65 1000VAC/1500VDC 2P

          656.687.70.0.0
          Rated current In (A)
          100
          Rated Voltage Un AC (V)
          1000
          Homologations
          IEC
          Fuses format
          Cylindrical
          Fuses dimension
          22x65mm
          Rated Voltage Un DC (V)
          1500
          Number of phase
          2
          Max power dissipation (W)
          12

          Product available on request
