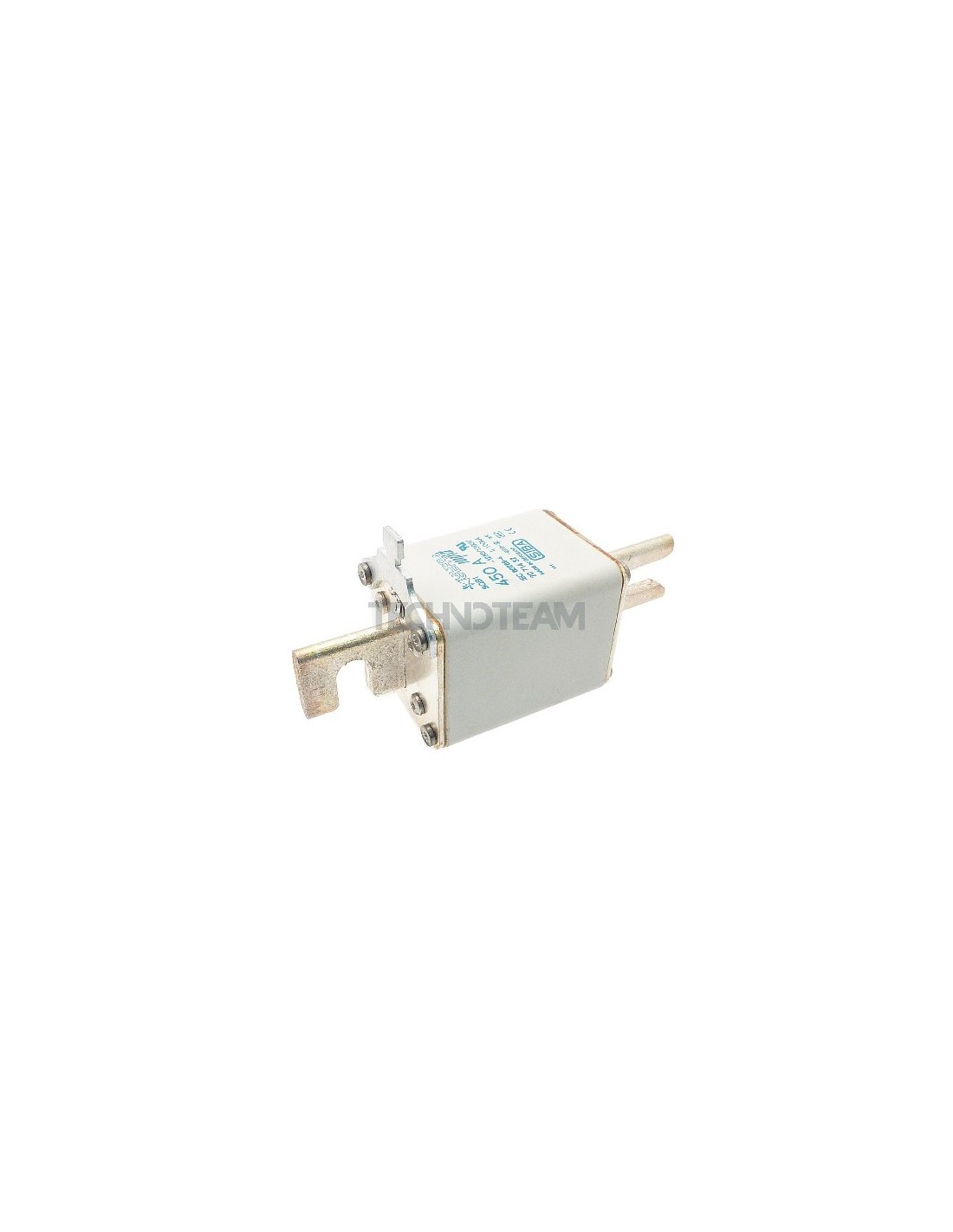

Fuse SQB1 110mm aR 1250V top switch adapter 400A

    Fuse SQB1 110mm aR 1250V top switch adapter 400A

    SIBA
    2071432.400.0
    €262.32
    VAT excl.

    Product Request:

    Fuse SQB1 110mm aR 1250V top switch adapter 400A

    Fuse SQB1 110mm aR 1250V top switch adapter 400A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    400
    Rated Voltage Un AC (V)
    1250
    Rated break.capacity I1 AC (A)
    100000
    Voltage of total I2t test
    1000
    Weight (g)
    580
    Format
    Screw fixing
    Dimension
    SQB1-110mm
    Pre-arcing I2t value (A2s)
    36000
    Total I2t value (A2s)
    200000
    Homologations
    IEC & UL
    Power loss (W)
    75

    Alternatives

    Fuse SQB1 110mm aR 1250V top indicator 400A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB1 110mm aR 1250V top indicator 400A

      SIBA SIBA
      2071332.400.0
      Class
      aR
      Rated current In (A)
      400
      Rated Voltage Un AC (V)
      1250
      Rated break.capacity I1 AC (A)
      100000
      Voltage of total I2t test
      1000
      Format
      Screw fixing
      Dimension
      SQB1-110mm
      Pre-arcing I2t value (A2s)
      36000
      Total I2t value (A2s)
      200000
      Homologations
      IEC & UL
      Power loss (W)
      75
      €217.25
      Fuse SQB1 110mm aR 1250V lateral switch adapter 400A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB1 110mm aR 1250V lateral switch adapter 400A

        SIBA SIBA
        2071532.400.0
        Class
        aR
        Rated current In (A)
        400
        Rated Voltage Un AC (V)
        1250
        Rated break.capacity I1 AC (A)
        100000
        Voltage of total I2t test
        1000
        Format
        Screw fixing
        Dimension
        SQB1-110mm
        Pre-arcing I2t value (A2s)
        36000
        Total I2t value (A2s)
        200000
        Homologations
        IEC & UL
        Power loss (W)
        75
        €275.58
        Fuse SQB1 110mm aR 1250V switch adapter 90 400A
          Available
          Ultrarapid fuses aR - gR

          Fuse SQB1 110mm aR 1250V switch adapter 90 400A

          SIBA SIBA
          2076632.400.0
          Class
          aR
          Rated current In (A)
          400
          Rated Voltage Un AC (V)
          1250
          Rated break.capacity I1 AC (A)
          100000
          Voltage of total I2t test
          1000
          Format
          Screw fixing
          Dimension
          SQB1-110mm
          Pre-arcing I2t value (A2s)
          36000
          Total I2t value (A2s)
          200000
          Homologations
          IEC & UL
          Power loss (W)
          75

          Product available on request

          Accessories

          Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V
            Available
            for Bolted fuses

            Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V

            2132301.0.0
            Rated current In (A)
            630
            Rated Voltage Un AC (V)
            1400
            Homologations
            IEC & UL
            Fuses format
            Screw fixing
            Fuses dimension
            SQB1 SQB2 SQB3
            Number of phase
            1
            Distance (mm)
            110
            Max power dissipation (W)
            60
            €137.50
