Fuse 14x51 gR 690V (IEC)/700V (UL) 10A

    Fuse 14x51 gR 690V (IEC)/700V (UL) 10A

    SIBA
    5012406.10.0
    €11.90
    VAT excl.

    Product Request:

    Fuse 14x51 gR 690V (IEC)/700V (UL) 10A

    Fuse 14x51 gR 690V (IEC)/700V (UL) 10A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 10 pcs

    This product has a minimum quantity of 10 and sold by 10

    Download

    Catalog
    Class
    gR
    Rated current In (A)
    10
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    20
    Format
    Cylindrical
    Dimension
    14x51mm
    Pre-arcing I2t value (A2s)
    7,7
    Total I2t value (A2s)
    39
    Homologations
    IEC & UL
    Power loss (W)
    2,6

    Alternatives

    Fuse 14x51 gR 690V/700V UL with striker 10A
      Available
      Ultrarapid fuses aR - gR

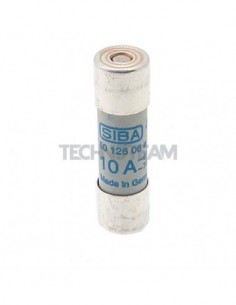

      Fuse 14x51 gR 690V/700V UL with striker 10A

      SIBA SIBA
      5012606.10.0
      Class
      gR
      Rated current In (A)
      10
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Cylindrical
      Dimension
      14x51mm
      Pre-arcing I2t value (A2s)
      7,7
      Total I2t value (A2s)
      39
      Homologations
      IEC & UL
      Power loss (W)
      2,6
      €10.10

      Accessories

      Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 2P with ind
        Available
        for Cylindrical fuses

        Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 2P with ind

        485210.0.0
        Rated current In (A)
        50
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC
        Fuses format
        Cylindrical
        Fuses dimension
        14x51mm
        Rated Voltage Un DC (V)
        750
        Number of phase
        2
        Max power dissipation (W)
        5

        Product available on request

        Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 1+N with indi
          Available
          for Cylindrical fuses

          Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 1+N with indi

          485209.0.0
          Rated current In (A)
          50
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC
          Fuses format
          Cylindrical
          Fuses dimension
          14x51mm
          Rated Voltage Un DC (V)
          750
          Number of phase
          1+N
          Max power dissipation (W)
          5

          Product available on request

          Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 3poles
            Available
            for Cylindrical fuses

            Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 3poles

            485205.0.0
            Rated current In (A)
            50
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC
            Fuses format
            Cylindrical
            Fuses dimension
            14x51mm
            Rated Voltage Un DC (V)
            750
            Number of phase
            3
            Max power dissipation (W)
            5
            €29.74
            Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 4poles
              Available
              for Cylindrical fuses

              Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 4poles

              485207.0.0
              Rated current In (A)
              50
              Rated Voltage Un AC (V)
              690
              Homologations
              IEC
              Fuses format
              Cylindrical
              Fuses dimension
              14x51mm
              Rated Voltage Un DC (V)
              750
              Number of phase
              4
              Max power dissipation (W)
              5
              €36.63
              Fuse holder 14x51 690VAC/750VDC UL 2P with light indicator
                Available
                for Cylindrical fuses

                Fuse holder 14x51 690VAC/750VDC UL 2P with light indicator

                5105805.2L.0
                Rated current In (A)
                50
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC & UL
                Fuses format
                Cylindrical
                Fuses dimension
                14x51mm
                Rated Voltage Un DC (V)
                750
                Number of phase
                2
                Max power dissipation (W)
                5

                Product available on request

                Fuse holder 14x51 690VAC/750VDC UL 3P
                  Available
                  for Cylindrical fuses

                  Fuse holder 14x51 690VAC/750VDC UL 3P

                  5105805.3.0
                  Rated current In (A)
                  50
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC & UL
                  Fuses format
                  Cylindrical
                  Fuses dimension
                  14x51mm
                  Rated Voltage Un DC (V)
                  750
                  Number of phase
                  3
                  Max power dissipation (W)
                  5
                  €27.46
                  Fuse holder 14x51 6690VAC 750VDC IEC 750V AC UL 3+N
                    Available
                    for Cylindrical fuses

                    Fuse holder 14x51 6690VAC 750VDC IEC 750V AC UL 3+N

                    485206.0.0
                    Rated current In (A)
                    50
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC
                    Fuses format
                    Cylindrical
                    Fuses dimension
                    14x51mm
                    Rated Voltage Un DC (V)
                    750
                    Number of phase
                    3+N
                    Max power dissipation (W)
                    5
                    €43.62
                    Fuse holder 14x51 690VAC 750VDC IEC 750VAC UL 3+N with ind
                      Available
                      for Cylindrical fuses

                      Fuse holder 14x51 690VAC 750VDC IEC 750VAC UL 3+N with ind

                      485212.0.0
                      Rated current In (A)
                      50
                      Rated Voltage Un AC (V)
                      690
                      Homologations
                      IEC
                      Fuses format
                      Cylindrical
                      Fuses dimension
                      14x51mm
                      Rated Voltage Un DC (V)
                      750
                      Number of phase
                      3+N
                      Max power dissipation (W)
                      5

                      Product available on request

                      Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 2poles
                        Available
                        for Cylindrical fuses

                        Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 2poles

                        485204.0.0
                        Rated current In (A)
                        50
                        Rated Voltage Un AC (V)
                        690
                        Homologations
                        IEC
                        Fuses format
                        Cylindrical
                        Fuses dimension
                        14x51mm
                        Rated Voltage Un DC (V)
                        750
                        Number of phase
                        2
                        Max power dissipation (W)
                        5
                        €19.25
                        Fuse holder 14x51 690VAC/750VDC UL 1P
                          Available
                          for Cylindrical fuses

                          Fuse holder 14x51 690VAC/750VDC UL 1P

                          5105805.1.0
                          Rated current In (A)
                          50
                          Rated Voltage Un AC (V)
                          690
                          Homologations
                          IEC & UL
                          Fuses format
                          Cylindrical
                          Fuses dimension
                          14x51mm
                          Rated Voltage Un DC (V)
                          750
                          Number of phase
                          1
                          Max power dissipation (W)
                          5
                          €8.40
                          Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 1+N
                            Available
                            for Cylindrical fuses

                            Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 1+N

                            485203.0.0
                            Rated current In (A)
                            50
                            Rated Voltage Un AC (V)
                            690
                            Homologations
                            IEC
                            Fuses format
                            Cylindrical
                            Fuses dimension
                            14x51mm
                            Rated Voltage Un DC (V)
                            750
                            Number of phase
                            1+N
                            Max power dissipation (W)
                            5
                            €19.94
                            Fuse holder 690VAC 750VDC IEC 750V AC UL 3P with ind
                              Available
                              for Cylindrical fuses

                              Fuse holder 690VAC 750VDC IEC 750V AC UL 3P with ind

                              485211.0.0
                              Rated current In (A)
                              50
                              Rated Voltage Un AC (V)
                              690
                              Homologations
                              IEC
                              Fuses format
                              Cylindrical
                              Fuses dimension
                              14x51mm
                              Rated Voltage Un DC (V)
                              750
                              Number of phase
                              3
                              Max power dissipation (W)
                              5

                              Product available on request

                              Clip diameter 14mm with holes
                                Available
                                for Cylindrical fuses

                                Clip diameter 14mm with holes

                                6100101.2.0
                                Homologations
                                IEC & UL
                                Fuses format
                                Cylindrical
                                Inside diameter (mm)
                                14

                                Product available on request

                                Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 4P with ind
                                  Available
                                  for Cylindrical fuses

                                  Fuse holder 14x51 690VAC 750VDC IEC 750V AC UL 4P with ind

                                  485213.0.0
                                  Rated current In (A)
                                  50
                                  Rated Voltage Un AC (V)
                                  690
                                  Homologations
                                  IEC
                                  Fuses format
                                  Cylindrical
                                  Fuses dimension
                                  14x51mm
                                  Rated Voltage Un DC (V)
                                  750
                                  Number of phase
                                  4
                                  Max power dissipation (W)
                                  5

                                  Product available on request

                                  Fuse holder 14x51 N 690VAC 750VDC IEC 750V AC UL
                                    Available
                                    for Cylindrical fuses

                                    Fuse holder 14x51 N 690VAC 750VDC IEC 750V AC UL

                                    485202.0.0
                                    Rated current In (A)
                                    50
                                    Rated Voltage Un AC (V)
                                    690
                                    Homologations
                                    IEC
                                    Fuses format
                                    Cylindrical
                                    Fuses dimension
                                    14x51mm
                                    Rated Voltage Un DC (V)
                                    750
                                    Number of phase
                                    1
                                    Max power dissipation (W)
                                    5

                                    Product available on request
