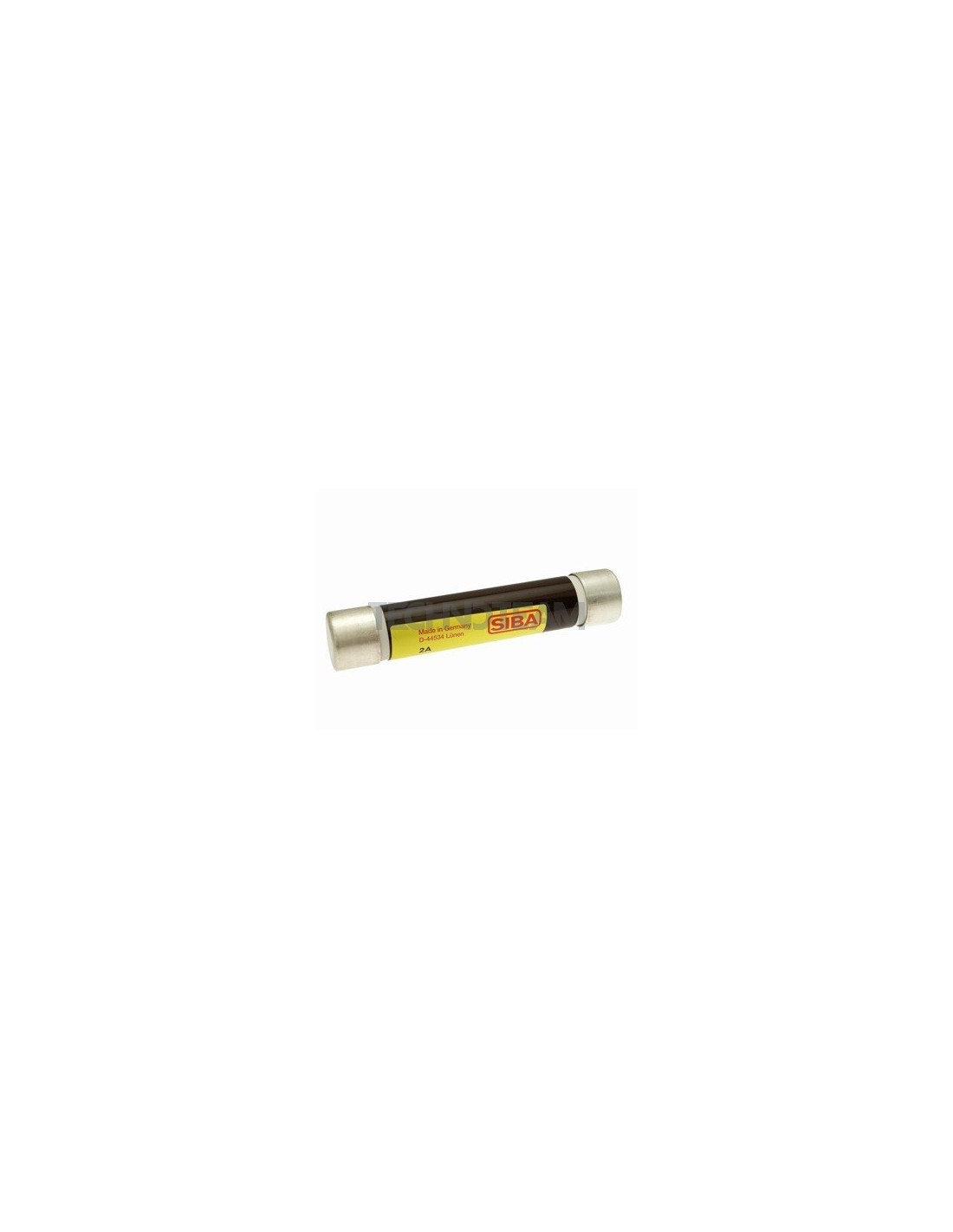

Fuse railway application gR 36x190 1500VDC 8A

    Fuse railway application gR 36x190 1500VDC 8A

    SIBA
    9009410.8.0
    Product available on request

    Product Request:


    Fuse railway application gR 36x190 1500VDC 8A

    Fuse railway application gR 36x190 1500VDC 8A

    do not include special characters

    * Required fields



    Class
    gR
    Rated current In (A)
    8
    Voltage of total I2t test
    1500
    Weight (g)
    1000
    Format
    Cylindrical
    Dimension
    36x190mm
    Pre-arcing I2t value (A2s)
    41
    Total I2t value (A2s)
    120
    Power loss (W)
    10
    Rated Voltage Un DC (V)
    1500
    Time costant L/R (ms)
    15
