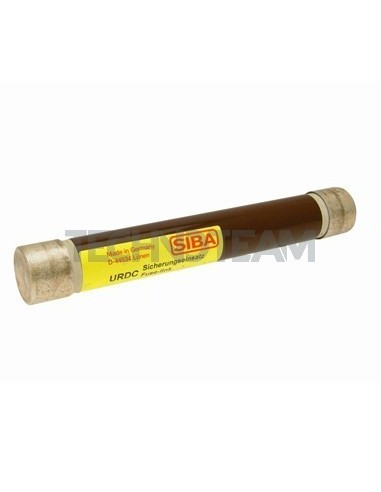

Fuse railway application 36x250 gR 2000VDC 32A

    Fuse railway application 36x250 gR 2000VDC 32A

    SIBA
    9009610.32.0
    Product available on request

    Product Request:


    Fuse railway application 36x250 gR 2000VDC 32A

    Fuse railway application 36x250 gR 2000VDC 32A

    do not include special characters

    * Required fields



    Class
    gR
    Rated current In (A)
    32
    Voltage of total I2t test
    2000
    Weight (g)
    660
    Format
    Cylindrical
    Dimension
    36x250mm
    Pre-arcing I2t value (A2s)
    250
    Total I2t value (A2s)
    1350
    Homologations
    IEC
    Power loss (W)
    22
    Rated Voltage Un DC (V)
    2000
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    20
