Fuse SQB1 80mm aR 690V top indicator 125A

    Fuse SQB1 80mm aR 690V top indicator 125A

    SIBA
    2061032.125.0
    €174.08
    VAT excl.

    Product Request:

    Fuse SQB1 80mm aR 690V top indicator 125A

    Fuse SQB1 80mm aR 690V top indicator 125A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    125
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    420
    Format
    Screw fixing
    Dimension
    SQB1-80mm
    Pre-arcing I2t value (A2s)
    600
    Total I2t value (A2s)
    3100
    Homologations
    IEC & UL
    Power loss (W)
    35

    Alternatives

    Fuse SQB1 80mm aR 690V top switch adapter 125A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB1 80mm aR 690V top switch adapter 125A

      SIBA SIBA
      2061132.125.0
      Class
      aR
      Rated current In (A)
      125
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Screw fixing
      Dimension
      SQB1-80mm
      Pre-arcing I2t value (A2s)
      600
      Total I2t value (A2s)
      3100
      Homologations
      IEC & UL
      Power loss (W)
      35
      €176.58

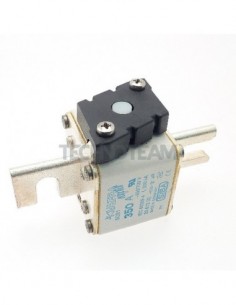

      Fuse SQB1 80mm aR 690V lateral switch adapter 125A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB1 80mm aR 690V lateral switch adapter 125A

        SIBA SIBA
        2061232.125.0
        Class
        aR
        Rated current In (A)
        125
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        660
        Format
        Screw fixing
        Dimension
        SQB1-80mm
        Pre-arcing I2t value (A2s)
        600
        Total I2t value (A2s)
        3100
        Power loss (W)
        35
        €122.48

        Accessories

        Fuse holder for SQB fuses size 1-2-3 80mm 630A 900V
          Available
          for Bolted fuses

          Fuse holder for SQB fuses size 1-2-3 80mm 630A 900V

          2131301.0.0
          Rated current In (A)
          630
          Rated Voltage Un AC (V)
          900
          Homologations
          IEC & UL
          Fuses format
          Screw fixing
          Fuses dimension
          SQB1 SQB2 SQB3
          Number of phase
          1
          Distance (mm)
          80
          Max power dissipation (W)
          60
          €140.84
