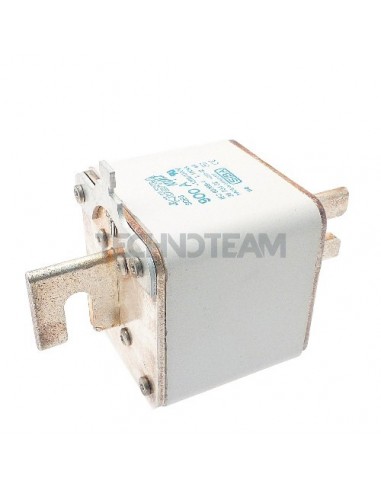

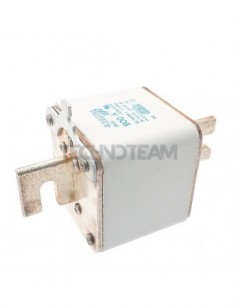

Fuse SQB3 110mm aR 1000V top switch adapter 1000A

    Fuse SQB3 110mm aR 1000V top switch adapter 1000A

    SIBA
    2073432.1000.0
    €368.85
    VAT excl.

    Product Request:

    Fuse SQB3 110mm aR 1000V top switch adapter 1000A

    Fuse SQB3 110mm aR 1000V top switch adapter 1000A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    1000
    Rated Voltage Un AC (V)
    1000
    Rated break.capacity I1 AC (A)
    100000
    Voltage of total I2t test
    1000
    Weight (g)
    1200
    Format
    Screw fixing
    Dimension
    SQB3-110mm
    Pre-arcing I2t value (A2s)
    350000
    Total I2t value (A2s)
    1900000
    Homologations
    IEC & UL
    Power loss (W)
    150

    Alternatives

    Fuse SQB3 110mm aR 1000V lateral switch adapter 1000A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB3 110mm aR 1000V lateral switch adapter 1000A

      SIBA SIBA
      2073532.1000.0
      Class
      aR
      Rated current In (A)
      1000
      Rated Voltage Un AC (V)
      1000
      Rated break.capacity I1 AC (A)
      100000
      Voltage of total I2t test
      1000
      Format
      Screw fixing
      Dimension
      SQB3-110mm
      Pre-arcing I2t value (A2s)
      350000
      Total I2t value (A2s)
      1900000
      Homologations
      IEC & UL
      Power loss (W)
      150
      €289.14

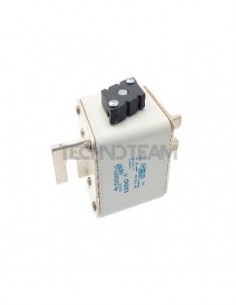

      Fuse SQB3 110mm 1250V lateral switch adapter body 82mm 1000A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB3 110mm 1250V lateral switch adapter body 82mm 1000A

        SIBA SIBA
        2073552.1000.0
        Class
        aR
        Rated current In (A)
        1000
        Rated Voltage Un AC (V)
        1250
        Rated break.capacity I1 AC (A)
        100000
        Voltage of total I2t test
        1000
        Format
        Screw fixing
        Dimension
        SQB3-110mm
        Pre-arcing I2t value (A2s)
        350000
        Total I2t value (A2s)
        1900000
        Homologations
        IEC
        Power loss (W)
        150

        Product available on request

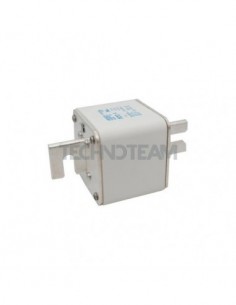

        Fuse SQB3 110mm aR 1000V top indicator 1000A
          Available
          Ultrarapid fuses aR - gR

          Fuse SQB3 110mm aR 1000V top indicator 1000A

          SIBA SIBA
          2073332.1000.0
          Class
          aR
          Rated current In (A)
          1000
          Rated Voltage Un AC (V)
          1000
          Rated break.capacity I1 AC (A)
          100000
          Voltage of total I2t test
          1000
          Format
          Screw fixing
          Dimension
          SQB3-110mm
          Pre-arcing I2t value (A2s)
          350000
          Total I2t value (A2s)
          1900000
          Homologations
          IEC & UL
          Power loss (W)
          150
          €208.19

          Accessories

          Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V
            Available
            for Bolted fuses

            Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V

            2132302.0.0
            Rated current In (A)
            1250
            Rated Voltage Un AC (V)
            1400
            Homologations
            IEC & UL
            Fuses format
            Screw fixing
            Fuses dimension
            SQB1 SQB2 SQB3
            Number of phase
            1
            Distance (mm)
            110
            Max power dissipation (W)
            110
            €167.23
