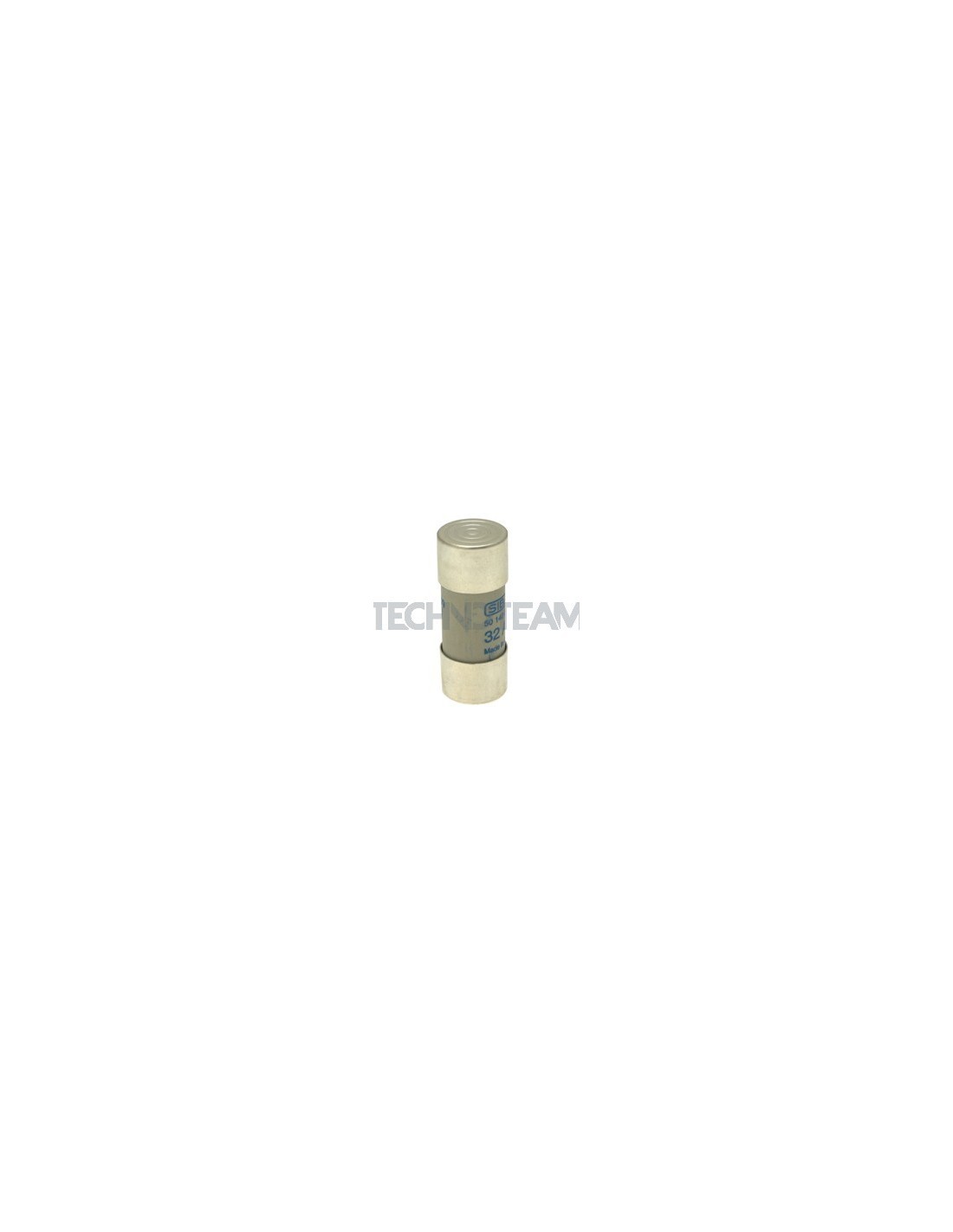

Fuse 22x58 aR 600V 100A

    Fuse 22x58 aR 600V 100A

    SIBA
    5006006.100.0
    Product available on request

    Product Request:

    Fuse 22x58 aR 600V 100A

    Fuse 22x58 aR 600V 100A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 10 pcs

    This product has a minimum quantity of 10 and sold by 10

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    100
    Rated Voltage Un AC (V)
    600
    Rated break.capacity I1 AC (A)
    100000
    Voltage of total I2t test
    500
    Weight (g)
    57
    Format
    Cylindrical
    Dimension
    22x58mm
    Pre-arcing I2t value (A2s)
    1400
    Total I2t value (A2s)
    10000
    Homologations
    IEC & UL
    Power loss (W)
    20

    Alternatives

    Fuse 22x58 gR 690V UL 100A
      Available
      Ultrarapid fuses aR - gR

      Fuse 22x58 gR 690V UL 100A

      SIBA SIBA
      5014006.100.0
      Class
      gR
      Rated current In (A)
      100
      Rated Voltage Un AC (V)
      700
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Cylindrical
      Dimension
      22x58mm
      Pre-arcing I2t value (A2s)
      2050
      Total I2t value (A2s)
      8900
      Homologations
      IEC & UL
      Power loss (W)
      19
      €35.07
      Fuse 22x58 aR 600V 100A
        Available
        Ultrarapid fuses aR - gR

        Fuse 22x58 aR 600V 100A

        SIBA SIBA
        5006006.100.0
        Class
        aR
        Rated current In (A)
        100
        Rated Voltage Un AC (V)
        600
        Rated break.capacity I1 AC (A)
        100000
        Voltage of total I2t test
        500
        Format
        Cylindrical
        Dimension
        22x58mm
        Pre-arcing I2t value (A2s)
        1400
        Total I2t value (A2s)
        10000
        Homologations
        IEC & UL
        Power loss (W)
        20

        Product available on request
