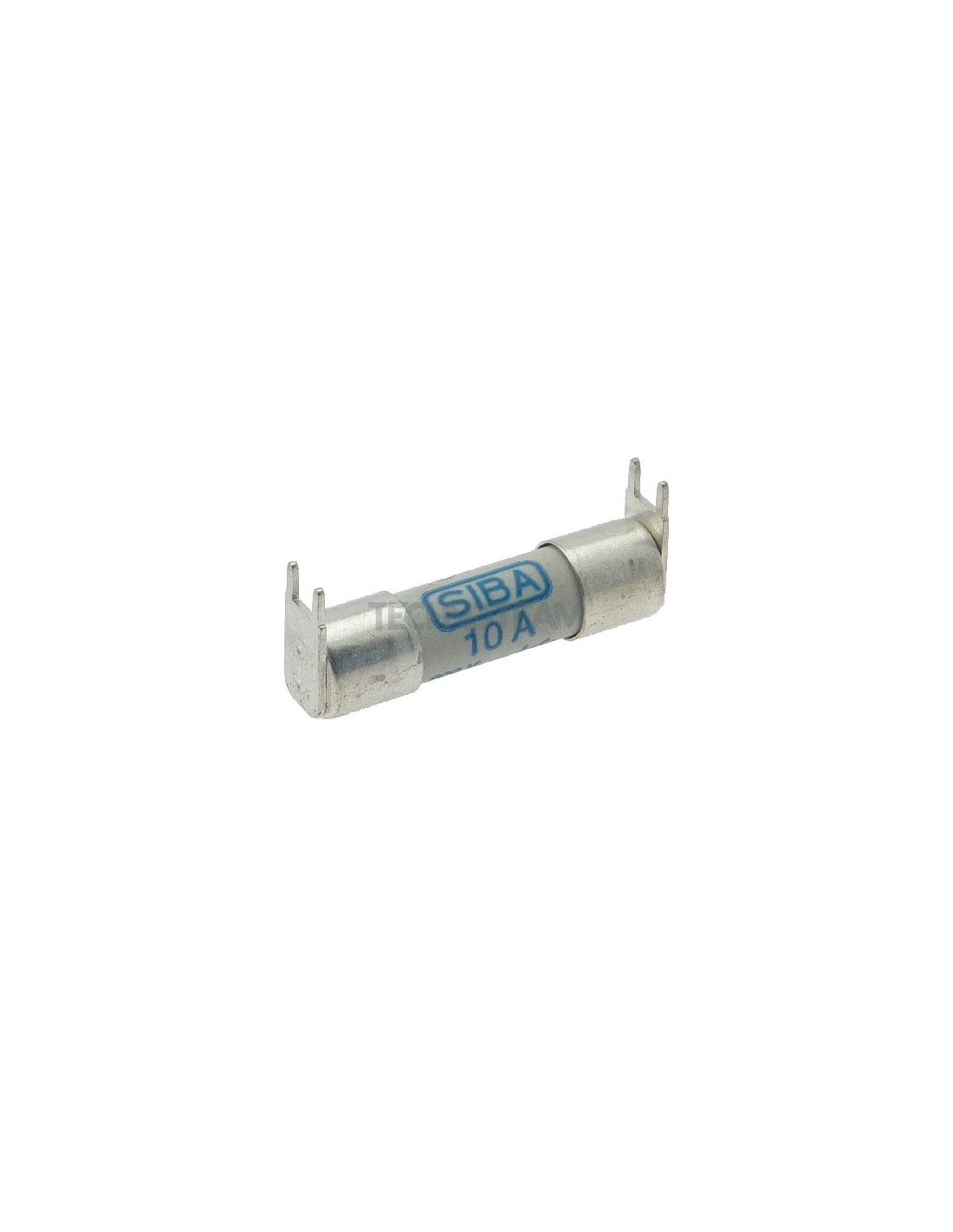

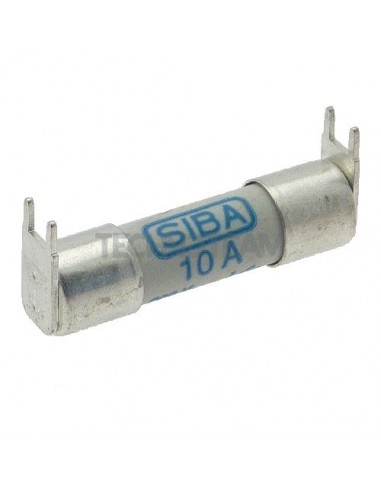

Fuse 10x38 gR 1000V UL/900V IEC AC/DC with pins 10A

    Fuse 10x38 gR 1000V UL/900V IEC AC/DC with pins 10A

    SIBA
    5021606.10.0
    Product available on request

    Product Request:

    Fuse 10x38 gR 1000V UL/900V IEC AC/DC with pins 10A

    Fuse 10x38 gR 1000V UL/900V IEC AC/DC with pins 10A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 10 pcs

    This product has a minimum quantity of 10 and sold by 10

    Download

    Catalog Datasheet
    Class
    gR
    Rated current In (A)
    10
    Rated Voltage Un AC (V)
    900
    Voltage of total I2t test
    1000
    Weight (g)
    10
    Format
    Cylindrical
    Dimension
    10x38mm
    Pre-arcing I2t value (A2s)
    10
    Total I2t value (A2s)
    77
    Homologations
    UL
    Power loss (W)
    1,5
    Rated Voltage Un DC (V)
    1000
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    1

    Alternatives

    Fuse 10x38 gPV 1000VDC with pins 10A
      Available
      Fuses for photovoltaic applications

      Fuse 10x38 gPV 1000VDC with pins 10A

      SIBA SIBA
      5021626.10.0
      Class
      gPV
      Rated current In (A)
      10
      Voltage of total I2t test
      1000
      Format
      Cylindrical
      Dimension
      10x38mm
      Pre-arcing I2t value (A2s)
      7
      Homologations
      IEC & UL
      Power loss (W)
      2
      Rated Voltage Un DC (V)
      1000
      Rated break.capacity I1 DC (A)
      30000
      Time costant L/R (ms)
      2

      Product available on request

      Accessories

      ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P
        Available
        for Cylindrical fuses

        ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P

        188.120.82.0.0
        Rated current In (A)
        32
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC
        Power loss (W)
        4
        Fuses format
        Cylindrical
        Fuses dimension
        10x38mm
        Rated Voltage Un DC (V)
        1000
        Number of phase
        4

        Product available on request

        ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P with ind
          Available
          for Cylindrical fuses

          ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P with ind

          346.127.98.0.0
          Rated current In (A)
          32
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC
          Power loss (W)
          4
          Fuses format
          Cylindrical
          Fuses dimension
          10x38mm
          Rated Voltage Un DC (V)
          1000
          Number of phase
          3
          €26.74
          ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind
            Available
            for Cylindrical fuses

            ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind

            421.781.29.0.0
            Rated current In (A)
            32
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC
            Fuses format
            Cylindrical
            Fuses dimension
            10x38mm
            Rated Voltage Un DC (V)
            1000
            Number of phase
            1
            Max power dissipation (W)
            4,3
            €9.15
            ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P
              Available
              for Cylindrical fuses

              ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P

              793.159.36.0.0
              Rated current In (A)
              32
              Rated Voltage Un AC (V)
              690
              Homologations
              IEC
              Fuses format
              Cylindrical
              Fuses dimension
              10x38mm
              Rated Voltage Un DC (V)
              1000
              Number of phase
              2
              Max power dissipation (W)
              4,3
              €7.37
              ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P
                Available
                for Cylindrical fuses

                ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P

                609.223.86.0.0
                Rated current In (A)
                32
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC
                Power loss (W)
                4
                Fuses format
                Cylindrical
                Fuses dimension
                10x38mm
                Rated Voltage Un DC (V)
                1000
                Number of phase
                3
                €11.27
                ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P
                  Available
                  for Cylindrical fuses

                  ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P

                  832.456.76.0.0
                  Rated current In (A)
                  32
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC
                  Fuses format
                  Cylindrical
                  Fuses dimension
                  10x38mm
                  Rated Voltage Un DC (V)
                  1000
                  Number of phase
                  1
                  Max power dissipation (W)
                  4
                  €3.04
                  ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P with ind
                    Available
                    for Cylindrical fuses

                    ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P with ind

                    691.187.44.0.0
                    Rated current In (A)
                    32
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC
                    Power loss (W)
                    4
                    Fuses format
                    Cylindrical
                    Fuses dimension
                    10x38mm
                    Rated Voltage Un DC (V)
                    1000
                    Number of phase
                    4

                    Product available on request

                    ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind
                      Available
                      for Cylindrical fuses

                      ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind

                      543.991.81.0.0
                      Rated current In (A)
                      32
                      Rated Voltage Un AC (V)
                      690
                      Homologations
                      IEC
                      Fuses format
                      Cylindrical
                      Fuses dimension
                      10x38mm
                      Rated Voltage Un DC (V)
                      1000
                      Number of phase
                      2
                      Max power dissipation (W)
                      4,3

                      Product available on request
