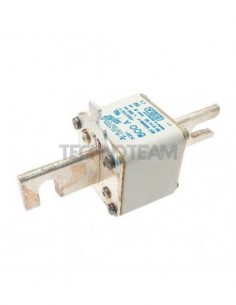

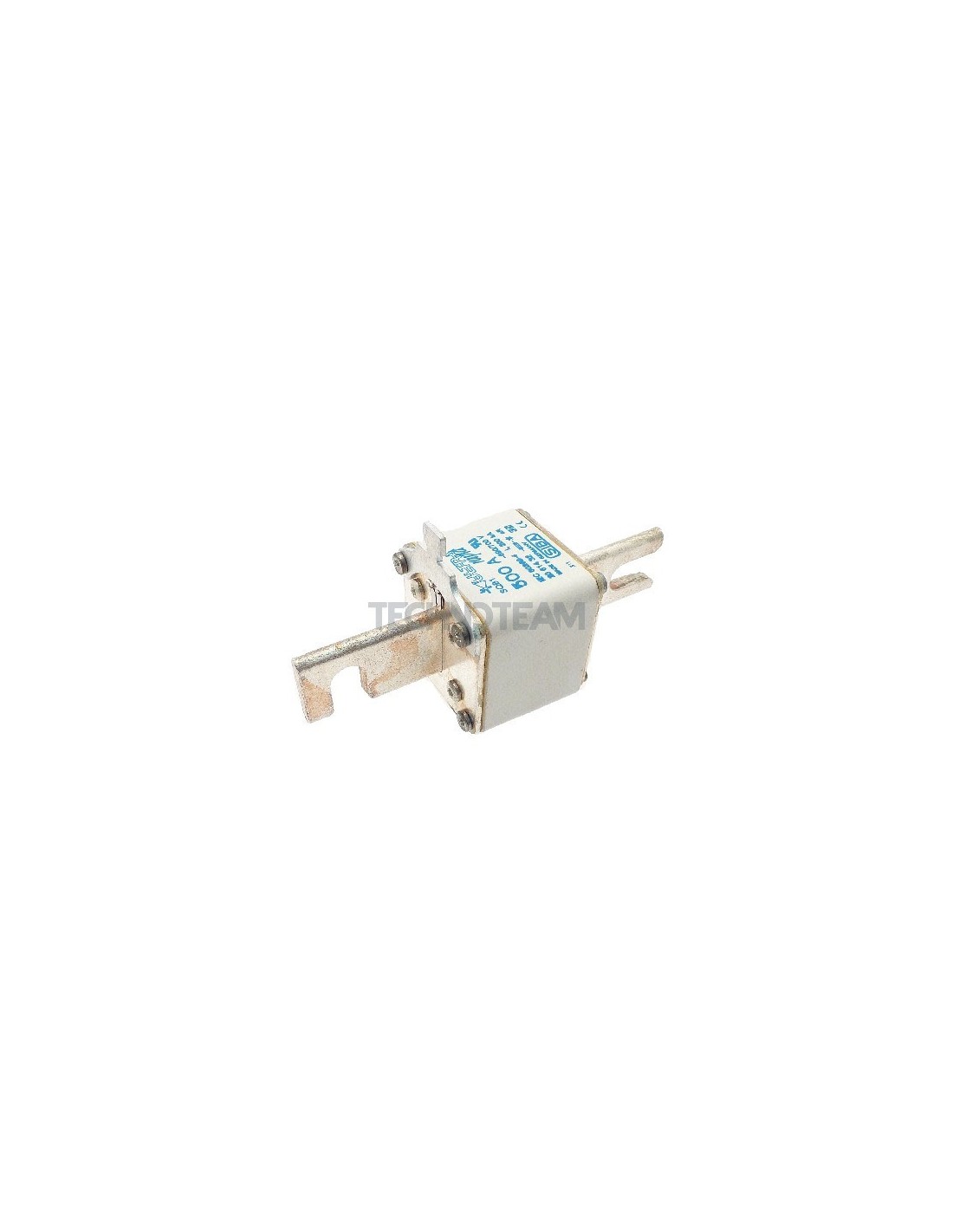

Fuse SQB1 110mm aR 690V top switch adapter 700A

    Fuse SQB1 110mm aR 690V top switch adapter 700A

    SIBA
    2061432.700.0
    €241.33
    VAT excl.

    Product Request:

    Fuse SQB1 110mm aR 690V top switch adapter 700A

    Fuse SQB1 110mm aR 690V top switch adapter 700A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    700
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    420
    Format
    Screw fixing
    Dimension
    SQB1-110mm
    Pre-arcing I2t value (A2s)
    86000
    Total I2t value (A2s)
    490000
    Homologations
    IEC & UL
    Power loss (W)
    85

    Alternatives

    Fuse SQB1 110mm aR 690V top indicator 700A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB1 110mm aR 690V top indicator 700A

      SIBA SIBA
      2061332.700.0
      Class
      aR
      Rated current In (A)
      700
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Screw fixing
      Dimension
      SQB1-110mm
      Pre-arcing I2t value (A2s)
      86000
      Total I2t value (A2s)
      490000
      Homologations
      IEC & UL
      Power loss (W)
      85
      €146.39
      Fuse SQB1 110mm aR 690V lateral switch adapter 700A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB1 110mm aR 690V lateral switch adapter 700A

        SIBA SIBA
        2061532.700.0
        Class
        aR
        Rated current In (A)
        700
        Rated Voltage Un AC (V)
        690
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        660
        Format
        Screw fixing
        Dimension
        SQB1-110mm
        Pre-arcing I2t value (A2s)
        86000
        Total I2t value (A2s)
        490000
        Homologations
        IEC & UL
        Power loss (W)
        85
        €237.15

        Accessories

        Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V
          Available
          for Bolted fuses

          Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V

          2132302.0.0
          Rated current In (A)
          1250
          Rated Voltage Un AC (V)
          1400
          Homologations
          IEC & UL
          Fuses format
          Screw fixing
          Fuses dimension
          SQB1 SQB2 SQB3
          Number of phase
          1
          Distance (mm)
          110
          Max power dissipation (W)
          110
          €194.10
