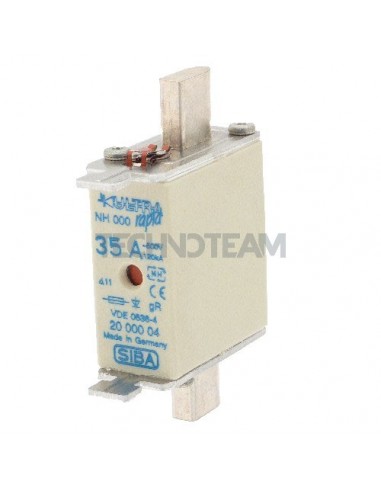

Fuse NH000/NH00C gR 500V top indicator 35A

    Fuse NH000/NH00C gR 500V top indicator 35A

    SIBA
    2000004.35.0
    Product available on request

    Product Request:

    Fuse NH000/NH00C gR 500V top indicator 35A

    Fuse NH000/NH00C gR 500V top indicator 35A

    do not include special characters

    * Required fields



    This product is only sold in boxes of 3 pcs

    This product has a minimum quantity of 3 and sold by 3

    Download

    Catalog Datasheet
    Class
    gR
    Rated current In (A)
    35
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    120000
    Voltage of total I2t test
    500
    Weight (g)
    120
    Format
    NH knife contact
    Dimension
    NH00C NH000
    Pre-arcing I2t value (A2s)
    82
    Total I2t value (A2s)
    650
    Homologations
    IEC
    Power loss (W)
    9

    Alternatives

    Fuse NH000/NH00C gR 690V top indicator 35A
      Available
      Ultrarapid fuses aR - gR

      Fuse NH000/NH00C gR 690V top indicator 35A

      SIBA SIBA
      2047720.35.0
      Class
      gR
      Rated current In (A)
      35
      Rated Voltage Un AC (V)
      690
      Rated break.capacity I1 AC (A)
      100000
      Voltage of total I2t test
      690
      Format
      NH knife contact
      Dimension
      NH00C NH000
      Pre-arcing I2t value (A2s)
      53
      Total I2t value (A2s)
      380
      Homologations
      IEC
      Power loss (W)
      7,1
      €31.77

      Accessories

      Fuse holder ceramic NH00 160A 1pole
        Available
        for NH knife fuses

        Fuse holder ceramic NH00 160A 1pole

        2100110.0.0
        Rated current In (A)
        160
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC
        Fuses format
        NH knife contact
        Fuses dimension
        NH00
        Number of phase
        1
        Max power dissipation (W)
        12

        Product available on request

        Fuse base ST NH00 1pole screw fixing
          Available
          for NH knife fuses

          Fuse base ST NH00 1pole screw fixing

          354100.0.0
          Rated current In (A)
          160
          Rated Voltage Un AC (V)
          800
          Fuses format
          NH knife contact
          Fuses dimension
          NH00
          Rated Voltage Un DC (V)
          750
          €7.39
          Fuse holder metal/ceramic NH00 160A 1pole
            Available
            for NH knife fuses

            Fuse holder metal/ceramic NH00 160A 1pole

            2100101.0.0
            Rated current In (A)
            160
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC
            Fuses format
            NH knife contact
            Fuses dimension
            NH00
            Number of phase
            1
            Max power dissipation (W)
            12

            Product available on request

            Fuse base NH00 3P IP20 fix. DINrail/screw - conn. screw
              Available
              for NH knife fuses

              Fuse base NH00 3P IP20 fix. DINrail/screw - conn. screw

              334717.0.0
              Rated current In (A)
              160
              Rated Voltage Un AC (V)
              800
              Format
              NH knife contact
              Dimension
              NH00
              Homologations
              IEC
              Fuses format
              NH knife contact
              Fuses dimension
              NH00
              Rated Voltage Un DC (V)
              750
              Number of phase
              3
              Max power dissipation (W)
              12
              €51.10
              Swich disconn. NH000 3P BS 690V conn. clamp
                Available
                Horizontal switch disconnectors for NH fuses

                Swich disconn. NH000 3P BS 690V conn. clamp

                335005.0.0
                Rated current In (A)
                160
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC
                Fuses format
                NH knife contact
                Fuses dimension
                NH000
                Number of phase
                3
                Max power dissipation (W)
                12
                €94.79
                Swich disconn. NH00 3P BS 690V conn. screw/clamp
                  Available
                  Horizontal switch disconnectors for NH fuses

                  Swich disconn. NH00 3P BS 690V conn. screw/clamp

                  335025.0.0
                  Rated current In (A)
                  160
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC
                  Fuses format
                  NH knife contact
                  Fuses dimension
                  NH00
                  Number of phase
                  3
                  Max power dissipation (W)
                  12

                  Product available on request

                  Swich disconn. NH00 3P BS 690V conn. busbar
                    Available
                    Horizontal switch disconnectors for NH fuses

                    Swich disconn. NH00 3P BS 690V conn. busbar

                    335040.0.0
                    Rated current In (A)
                    160
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC
                    Fuses format
                    NH knife contact
                    Fuses dimension
                    NH00
                    Number of phase
                    3
                    Max power dissipation (W)
                    12

                    Product available on request
