Fuse SQB3 110mm aR 450V lateral switch adapter 90 1800A

    Fuse SQB3 110mm aR 450V lateral switch adapter 90 1800A

    SIBA
    2068632.1800.0
    Product available on request

    Product Request:

    Fuse SQB3 110mm aR 450V lateral switch adapter 90 1800A

    Fuse SQB3 110mm aR 450V lateral switch adapter 90 1800A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    1800
    Rated Voltage Un AC (V)
    450
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    660
    Weight (g)
    1000
    Format
    Screw fixing
    Dimension
    SQB3-110mm
    Pre-arcing I2t value (A2s)
    903000
    Total I2t value (A2s)
    4300000
    Homologations
    IEC
    Power loss (W)
    200

    Alternatives

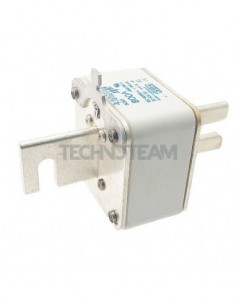

    Fuse SQB3 110mm aR 450V top switch adapter 1800A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB3 110mm aR 450V top switch adapter 1800A

      SIBA SIBA
      2063432.1800.0
      Class
      aR
      Rated current In (A)
      1800
      Rated Voltage Un AC (V)
      450
      Rated break.capacity I1 AC (A)
      200000
      Voltage of total I2t test
      660
      Format
      Screw fixing
      Dimension
      SQB3-80mm
      Pre-arcing I2t value (A2s)
      903000
      Total I2t value (A2s)
      4300000
      Homologations
      IEC
      Power loss (W)
      200

      Product available on request

      Fuse SQB3 110mm aR 450V top indicator 1800A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB3 110mm aR 450V top indicator 1800A

        SIBA SIBA
        2063332.1800.0
        Class
        aR
        Rated current In (A)
        1800
        Rated Voltage Un AC (V)
        450
        Rated break.capacity I1 AC (A)
        200000
        Voltage of total I2t test
        660
        Format
        Screw fixing
        Dimension
        SQB3-80mm
        Pre-arcing I2t value (A2s)
        903000
        Total I2t value (A2s)
        4300000
        Homologations
        IEC
        Power loss (W)
        200

        Product available on request

        Fuse SQB3 110mm aR 450V lateral switch adapter 1800A
          Available
          Ultrarapid fuses aR - gR

          Fuse SQB3 110mm aR 450V lateral switch adapter 1800A

          SIBA SIBA
          2063532.1800.0
          Class
          aR
          Rated current In (A)
          1800
          Rated Voltage Un AC (V)
          450
          Rated break.capacity I1 AC (A)
          200000
          Voltage of total I2t test
          660
          Format
          Screw fixing
          Dimension
          SQB3-80mm
          Pre-arcing I2t value (A2s)
          903000
          Total I2t value (A2s)
          4300000
          Homologations
          IEC
          Power loss (W)
          200

          Product available on request

          Accessories

          Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V
            Available
            for Bolted fuses

            Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V

            2132302.0.0
            Rated current In (A)
            1250
            Rated Voltage Un AC (V)
            1400
            Homologations
            IEC & UL
            Fuses format
            Screw fixing
            Fuses dimension
            SQB1 SQB2 SQB3
            Number of phase
            1
            Distance (mm)
            110
            Max power dissipation (W)
            110
            €194.10
