Fuse SQB2 110mm 1250V lateral switch adapter 90 250A

    Fuse SQB2 110mm 1250V lateral switch adapter 90 250A

    SIBA
    2077632.250.0
    Product available on request

    Product Request:

    Fuse SQB2 110mm 1250V lateral switch adapter 90 250A

    Fuse SQB2 110mm 1250V lateral switch adapter 90 250A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    250
    Rated Voltage Un AC (V)
    1250
    Rated break.capacity I1 AC (A)
    100000
    Voltage of total I2t test
    1000
    Weight (g)
    780
    Format
    Screw fixing
    Dimension
    SQB2-110mm
    Pre-arcing I2t value (A2s)
    8200
    Total I2t value (A2s)
    45000
    Homologations
    IEC & UL
    Power loss (W)
    55

    Alternatives

    Fuse SQB2 110mm aR 1250V lateral switch adapter 250A
      Available
      Ultrarapid fuses aR - gR

      Fuse SQB2 110mm aR 1250V lateral switch adapter 250A

      SIBA SIBA
      2072532.250.0
      Class
      aR
      Rated current In (A)
      250
      Rated Voltage Un AC (V)
      1250
      Rated break.capacity I1 AC (A)
      100000
      Voltage of total I2t test
      1000
      Format
      Screw fixing
      Dimension
      SQB2-110mm
      Pre-arcing I2t value (A2s)
      8200
      Total I2t value (A2s)
      45000
      Homologations
      IEC & UL
      Power loss (W)
      55

      Product available on request

      Fuse SQB2 110mm aR 1250V top switch adapter 250A
        Available
        Ultrarapid fuses aR - gR

        Fuse SQB2 110mm aR 1250V top switch adapter 250A

        SIBA SIBA
        2072432.250.0
        Class
        aR
        Rated current In (A)
        250
        Rated Voltage Un AC (V)
        1250
        Rated break.capacity I1 AC (A)
        100000
        Voltage of total I2t test
        1000
        Format
        Screw fixing
        Dimension
        SQB2-110mm
        Pre-arcing I2t value (A2s)
        8200
        Total I2t value (A2s)
        45000
        Power loss (W)
        55

        Product available on request

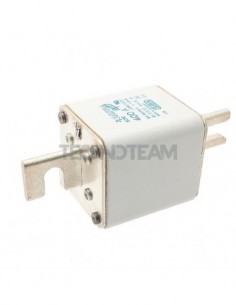

        Fuse SQB2 110mm aR 1250V top indicator 250A
          Available
          Ultrarapid fuses aR - gR

          Fuse SQB2 110mm aR 1250V top indicator 250A

          SIBA SIBA
          2072332.250.0
          Class
          aR
          Rated current In (A)
          250
          Rated Voltage Un AC (V)
          1250
          Rated break.capacity I1 AC (A)
          100000
          Voltage of total I2t test
          1000
          Format
          Screw fixing
          Dimension
          SQB2-110mm
          Pre-arcing I2t value (A2s)
          8200
          Total I2t value (A2s)
          45000
          Power loss (W)
          55

          Product available on request

          Accessories

          Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V
            Available
            for Bolted fuses

            Fuse holder for SQB fuses size1-2-3 110mm 630A 1400V

            2132301.0.0
            Rated current In (A)
            630
            Rated Voltage Un AC (V)
            1400
            Homologations
            IEC & UL
            Fuses format
            Screw fixing
            Fuses dimension
            SQB1 SQB2 SQB3
            Number of phase
            1
            Distance (mm)
            110
            Max power dissipation (W)
            60
            €137.50
