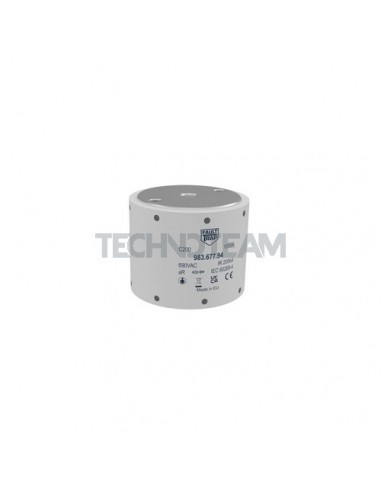

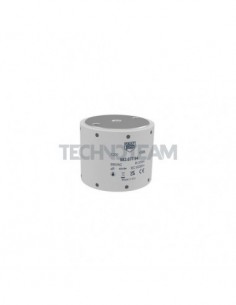

C200 - Fuse 660VAC aR M10 1000A

    C200 - Fuse 660VAC aR M10 1000A

    FAULTRAP
    983.677.94.0.0
    Product available on request

    Product Request:


    C200 - Fuse 660VAC aR M10 1000A

    C200 - Fuse 660VAC aR M10 1000A

    do not include special characters

    * Required fields



    Class
    aR
    Rated current In (A)
    1000
    Rated Voltage Un AC (V)
    660
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    726
    Format
    Screw fixing
    Dimension
    SQB2 screw M10
    Pre-arcing I2t value (A2s)
    226000
    Total I2t value (A2s)
    1250000
    Homologations
    IEC
    Power loss (W)
    110
    Catalog name
    C200
