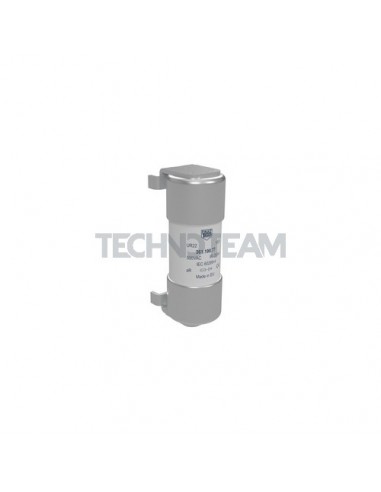

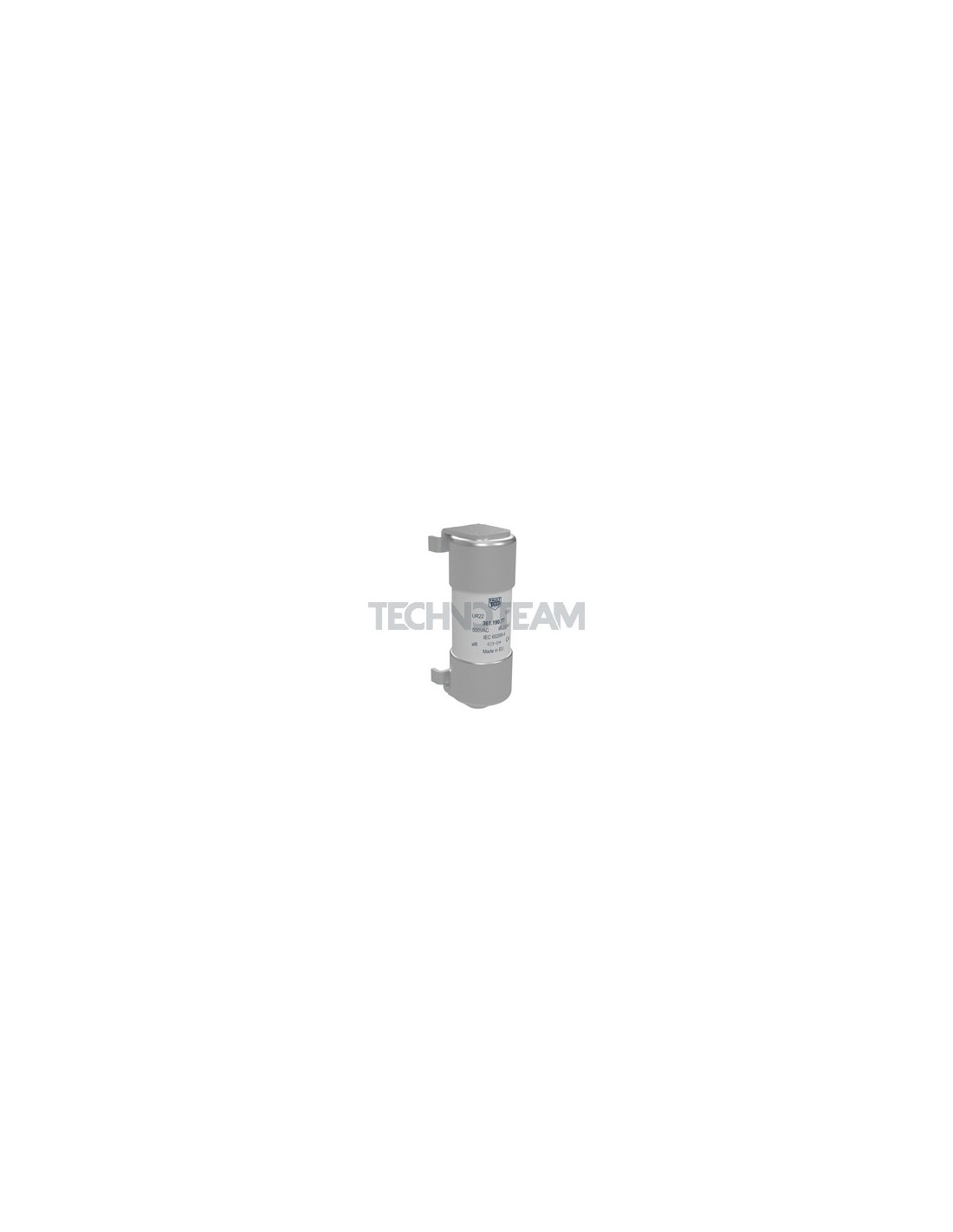

UR22 - Fuse 690V AC 22x58 fixing on pcb 25A

    UR22 - Fuse 690V AC 22x58 fixing on pcb 25A

    FAULTRAP
    178.821.86.0.0
    Product available on request

    Product Request:


    UR22 - Fuse 690V AC 22x58 fixing on pcb 25A

    UR22 - Fuse 690V AC 22x58 fixing on pcb 25A

    do not include special characters

    * Required fields



    Class
    aR
    Rated current In (A)
    25
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    690
    Format
    Cylindrical
    Dimension
    22x58mm
    Pre-arcing I2t value (A2s)
    33
    Total I2t value (A2s)
    147
    Homologations
    IEC
    Power loss (W)
    7,6
    Catalog name
    UR22
