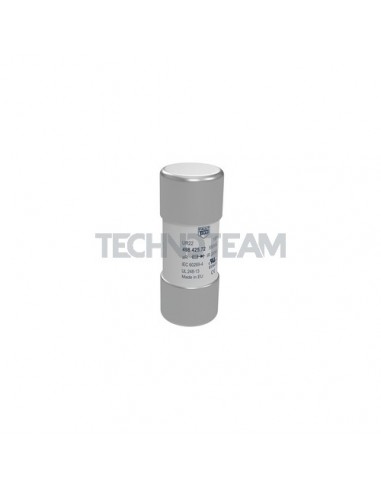

UR22 - Fuse 500V AC 22x58 cylindrical 125A

    UR22 - Fuse 500V AC 22x58 cylindrical 125A

    FAULTRAP
    926.959.14.0.0
    Product available on request

    Product Request:

    UR22 - Fuse 500V AC 22x58 cylindrical 125A

    UR22 - Fuse 500V AC 22x58 cylindrical 125A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    125
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    550
    Format
    Cylindrical
    Dimension
    22x58mm
    Pre-arcing I2t value (A2s)
    3100
    Total I2t value (A2s)
    15000
    Homologations
    IEC & UL
    Power loss (W)
    26
    Catalog name
    UR22

    Accessories

    Fuse holder 22x58 690V 1p with switch(only fusion)(PMX)
      Available
      for Cylindrical fuses

      Fuse holder 22x58 690V 1p with switch(only fusion)(PMX)

      485326.0.0
      Rated current In (A)
      125
      Rated Voltage Un AC (V)
      690
      Homologations
      IEC & UL
      Fuses format
      Cylindrical
      Fuses dimension
      22x58mm
      Rated Voltage Un DC (V)
      750
      Number of phase
      1
      Max power dissipation (W)
      12
      €30.17
      Fuse holder 22x58 690V 2p with switch(only fusion)(PMX)
        Available
        for Cylindrical fuses

        Fuse holder 22x58 690V 2p with switch(only fusion)(PMX)

        485328.0.0
        Rated current In (A)
        125
        Rated Voltage Un AC (V)
        690
        Homologations
        IEC & UL
        Fuses format
        Cylindrical
        Fuses dimension
        22x58mm
        Rated Voltage Un DC (V)
        750
        Number of phase
        2
        Max power dissipation (W)
        12

        Product available on request

        Fuse holder 22x58 3poles 690V (PMX)
          Available
          for Cylindrical fuses

          Fuse holder 22x58 3poles 690V (PMX)

          485305.0.0
          Rated current In (A)
          125
          Rated Voltage Un AC (V)
          690
          Homologations
          IEC & UL
          Fuses format
          Cylindrical
          Fuses dimension
          22x58mm
          Rated Voltage Un DC (V)
          750
          Number of phase
          3
          Max power dissipation (W)
          12
          €57.85
          Fuse holder 22x58 690V 2p switch(fusing+presence)(PMX)
            Available
            for Cylindrical fuses

            Fuse holder 22x58 690V 2p switch(fusing+presence)(PMX)

            485322.0.0
            Rated current In (A)
            125
            Rated Voltage Un AC (V)
            690
            Homologations
            IEC & UL
            Fuses format
            Cylindrical
            Fuses dimension
            22x58mm
            Rated Voltage Un DC (V)
            750
            Number of phase
            2
            Max power dissipation (W)
            12

            Product available on request

            Fuse holder 22x58 1pole 690V (PMX)
              Available
              for Cylindrical fuses

              Fuse holder 22x58 1pole 690V (PMX)

              485301.0.0
              Rated current In (A)
              125
              Rated Voltage Un AC (V)
              690
              Homologations
              IEC & UL
              Fuses format
              Cylindrical
              Fuses dimension
              22x58mm
              Rated Voltage Un DC (V)
              750
              Number of phase
              1
              Max power dissipation (W)
              12
              €15.91
              Fuse holder22x58 690V IEC/750V UL 3p switch(fusing+presence)
                Available
                for Cylindrical fuses

                Fuse holder22x58 690V IEC/750V UL 3p switch(fusing+presence)

                5106005.3S.0
                Rated current In (A)
                100
                Rated Voltage Un AC (V)
                690
                Homologations
                IEC & UL
                Fuses format
                Cylindrical
                Fuses dimension
                22x58mm
                Rated Voltage Un DC (V)
                750
                Number of phase
                3
                Max power dissipation (W)
                12

                Product available on request

                Fuse holder 22x58 1pole 690V with light (PMX)
                  Available
                  for Cylindrical fuses

                  Fuse holder 22x58 1pole 690V with light (PMX)

                  485308.0.0
                  Rated current In (A)
                  125
                  Rated Voltage Un AC (V)
                  690
                  Homologations
                  IEC & UL
                  Fuses format
                  Cylindrical
                  Fuses dimension
                  22x58mm
                  Rated Voltage Un DC (V)
                  750
                  Number of phase
                  1
                  Max power dissipation (W)
                  12
                  €23.96
                  Fuse holder 22x58 1+N 690V with light (PMX)
                    Available
                    for Cylindrical fuses

                    Fuse holder 22x58 1+N 690V with light (PMX)

                    485309.0.0
                    Rated current In (A)
                    125
                    Rated Voltage Un AC (V)
                    690
                    Homologations
                    IEC & UL
                    Fuses format
                    Cylindrical
                    Fuses dimension
                    22x58mm
                    Rated Voltage Un DC (V)
                    750
                    Number of phase
                    1+N
                    Max power dissipation (W)
                    12

                    Product available on request

                    Fuse holder 22x58 1+N 690V (PMX)
                      Available
                      for Cylindrical fuses

                      Fuse holder 22x58 1+N 690V (PMX)

                      485303.0.0
                      Rated current In (A)
                      125
                      Rated Voltage Un AC (V)
                      690
                      Homologations
                      IEC & UL
                      Fuses format
                      Cylindrical
                      Fuses dimension
                      22x58mm
                      Rated Voltage Un DC (V)
                      750
                      Number of phase
                      1+N
                      Max power dissipation (W)
                      12
                      €35.45
                      Fuse holder22x58 3+N 690V switch(fusing+presence)(PMX)
                        Available
                        for Cylindrical fuses

                        Fuse holder22x58 3+N 690V switch(fusing+presence)(PMX)

                        485324.0.0
                        Rated current In (A)
                        125
                        Rated Voltage Un AC (V)
                        690
                        Homologations
                        IEC & UL
                        Fuses format
                        Cylindrical
                        Fuses dimension
                        22x58mm
                        Rated Voltage Un DC (V)
                        750
                        Number of phase
                        3+N
                        Max power dissipation (W)
                        12

                        Product available on request

                        Fuse holder 22x58 690V IEC / 750V UL 1pole with light
                          Available
                          for Cylindrical fuses

                          Fuse holder 22x58 690V IEC / 750V UL 1pole with light

                          5106005.1L.0
                          Rated current In (A)
                          100
                          Rated Voltage Un AC (V)
                          690
                          Homologations
                          IEC & UL
                          Fuses format
                          Cylindrical
                          Fuses dimension
                          22x58mm
                          Rated Voltage Un DC (V)
                          750
                          Number of phase
                          1
                          Max power dissipation (W)
                          12
                          €23.04
                          Clip 22mm for PCB (pin)
                            Available
                            for Cylindrical fuses

                            Clip 22mm for PCB (pin)

                            5806006.0.0
                            Homologations
                            UL
                            Fuses format
                            Cylindrical
                            Inside diameter (mm)
                            22

                            Product available on request

                            Fuse holder 22x58 2poles 690V with light (PMX)
                              Available
                              for Cylindrical fuses

                              Fuse holder 22x58 2poles 690V with light (PMX)

                              485310.0.0
                              Rated current In (A)
                              125
                              Rated Voltage Un AC (V)
                              690
                              Homologations
                              IEC & UL
                              Fuses format
                              Cylindrical
                              Fuses dimension
                              22x58mm
                              Rated Voltage Un DC (V)
                              750
                              Number of phase
                              2
                              Max power dissipation (W)
                              12

                              Product available on request

                              Fuse holder 22x58 4poles 690V with light (PMX)
                                Available
                                for Cylindrical fuses

                                Fuse holder 22x58 4poles 690V with light (PMX)

                                485313.0.0
                                Rated current In (A)
                                125
                                Rated Voltage Un AC (V)
                                690
                                Homologations
                                IEC & UL
                                Fuses format
                                Cylindrical
                                Fuses dimension
                                22x58mm
                                Rated Voltage Un DC (V)
                                750
                                Number of phase
                                4
                                Max power dissipation (W)
                                12

                                Product available on request

                                Fuse holder 22x58 3p 690V switch(fusing+presence)(PMX)
                                  Available
                                  for Cylindrical fuses

                                  Fuse holder 22x58 3p 690V switch(fusing+presence)(PMX)

                                  485323.0.0
                                  Rated current In (A)
                                  125
                                  Rated Voltage Un AC (V)
                                  690
                                  Homologations
                                  IEC & UL
                                  Fuses format
                                  Cylindrical
                                  Fuses dimension
                                  22x58mm
                                  Rated Voltage Un DC (V)
                                  750
                                  Number of phase
                                  3
                                  Max power dissipation (W)
                                  12
                                  €44.75
                                  Fuse holder22x58 690V IEC/750V UL 1p switch(fusing+presence)
                                    Available
                                    for Cylindrical fuses

                                    Fuse holder22x58 690V IEC/750V UL 1p switch(fusing+presence)

                                    5106005.1S.0
                                    Rated current In (A)
                                    100
                                    Rated Voltage Un AC (V)
                                    690
                                    Homologations
                                    IEC & UL
                                    Fuses format
                                    Cylindrical
                                    Fuses dimension
                                    22x58mm
                                    Rated Voltage Un DC (V)
                                    750
                                    Number of phase
                                    1
                                    Max power dissipation (W)
                                    12

                                    Product available on request

                                    Fuse holder 22x58 3poles 690V with light (PMX)
                                      Available
                                      for Cylindrical fuses

                                      Fuse holder 22x58 3poles 690V with light (PMX)

                                      485311.0.0
                                      Rated current In (A)
                                      125
                                      Rated Voltage Un AC (V)
                                      690
                                      Homologations
                                      IEC & UL
                                      Fuses format
                                      Cylindrical
                                      Fuses dimension
                                      22x58mm
                                      Rated Voltage Un DC (V)
                                      750
                                      Number of phase
                                      3
                                      Max power dissipation (W)
                                      12
                                      €73.51
                                      Fuse holder 22x58 690V 3p with switch(only fusion)(PMX)
                                        Available
                                        for Cylindrical fuses

                                        Fuse holder 22x58 690V 3p with switch(only fusion)(PMX)

                                        485329.0.0
                                        Rated current In (A)
                                        125
                                        Rated Voltage Un AC (V)
                                        690
                                        Homologations
                                        IEC & UL
                                        Fuses format
                                        Cylindrical
                                        Fuses dimension
                                        22x58mm
                                        Rated Voltage Un DC (V)
                                        750
                                        Number of phase
                                        3
                                        Max power dissipation (W)
                                        12
                                        €73.88
                                        Fuse holder 22x58 690V 3+N with switch(only fusion)(PMX)
                                          Available
                                          for Cylindrical fuses

                                          Fuse holder 22x58 690V 3+N with switch(only fusion)(PMX)

                                          485330.0.0
                                          Rated current In (A)
                                          125
                                          Rated Voltage Un AC (V)
                                          690
                                          Homologations
                                          IEC & UL
                                          Fuses format
                                          Cylindrical
                                          Fuses dimension
                                          22x58mm
                                          Rated Voltage Un DC (V)
                                          750
                                          Number of phase
                                          3+N
                                          Max power dissipation (W)
                                          12

                                          Product available on request

                                          Fuse holder 22x58 690V 4p with switch(only fusion)(PMX)
                                            Available
                                            for Cylindrical fuses

                                            Fuse holder 22x58 690V 4p with switch(only fusion)(PMX)

                                            485331.0.0
                                            Rated current In (A)
                                            125
                                            Rated Voltage Un AC (V)
                                            690
                                            Homologations
                                            IEC & UL
                                            Fuses format
                                            Cylindrical
                                            Fuses dimension
                                            22x58mm
                                            Rated Voltage Un DC (V)
                                            750
                                            Number of phase
                                            4
                                            Max power dissipation (W)
                                            12

                                            Product available on request

                                            Fuse holder 22x58 690V neutral (PMX)
                                              Available
                                              for Cylindrical fuses

                                              Fuse holder 22x58 690V neutral (PMX)

                                              485302.0.0
                                              Rated current In (A)
                                              125
                                              Rated Voltage Un AC (V)
                                              690
                                              Homologations
                                              IEC & UL
                                              Fuses format
                                              Cylindrical
                                              Fuses dimension
                                              22x58mm
                                              Rated Voltage Un DC (V)
                                              750
                                              Number of phase
                                              1
                                              Max power dissipation (W)
                                              12

                                              Product available on request

                                              Fuse holder 22x58 3+N 690V (PMX)
                                                Available
                                                for Cylindrical fuses

                                                Fuse holder 22x58 3+N 690V (PMX)

                                                485306.0.0
                                                Rated current In (A)
                                                125
                                                Rated Voltage Un AC (V)
                                                690
                                                Homologations
                                                IEC & UL
                                                Fuses format
                                                Cylindrical
                                                Fuses dimension
                                                22x58mm
                                                Rated Voltage Un DC (V)
                                                750
                                                Number of phase
                                                3+N
                                                Max power dissipation (W)
                                                12
                                                €75.29
                                                Fuse holder22x58 4p 690V switch(fusing+presence)(PMX)
                                                  Available
                                                  for Cylindrical fuses

                                                  Fuse holder22x58 4p 690V switch(fusing+presence)(PMX)

                                                  485325.0.0
                                                  Rated current In (A)
                                                  125
                                                  Rated Voltage Un AC (V)
                                                  690
                                                  Homologations
                                                  IEC & UL
                                                  Fuses format
                                                  Cylindrical
                                                  Fuses dimension
                                                  22x58mm
                                                  Rated Voltage Un DC (V)
                                                  750
                                                  Number of phase
                                                  4
                                                  Max power dissipation (W)
                                                  12

                                                  Product available on request

                                                  Fuse holder 22x58 690V 1+N with switch(only fusion)(PMX)
                                                    Available
                                                    for Cylindrical fuses

                                                    Fuse holder 22x58 690V 1+N with switch(only fusion)(PMX)

                                                    485327.0.0
                                                    Rated current In (A)
                                                    125
                                                    Rated Voltage Un AC (V)
                                                    690
                                                    Homologations
                                                    IEC & UL
                                                    Fuses format
                                                    Cylindrical
                                                    Fuses dimension
                                                    22x58mm
                                                    Rated Voltage Un DC (V)
                                                    750
                                                    Number of phase
                                                    1+N
                                                    Max power dissipation (W)
                                                    12

                                                    Product available on request

                                                    Fuse holder 22x58 690V IEC / 750V UL 2poles with light
                                                      Available
                                                      for Cylindrical fuses

                                                      Fuse holder 22x58 690V IEC / 750V UL 2poles with light

                                                      5106005.2L.0
                                                      Rated current In (A)
                                                      100
                                                      Rated Voltage Un AC (V)
                                                      690
                                                      Homologations
                                                      IEC & UL
                                                      Fuses format
                                                      Cylindrical
                                                      Fuses dimension
                                                      22x58mm
                                                      Rated Voltage Un DC (V)
                                                      750
                                                      Number of phase
                                                      2
                                                      Max power dissipation (W)
                                                      12

                                                      Product available on request

                                                      Fuse holder 22x58 3+N 690V with light (PMX)
                                                        Available
                                                        for Cylindrical fuses

                                                        Fuse holder 22x58 3+N 690V with light (PMX)

                                                        485312.0.0
                                                        Rated current In (A)
                                                        125
                                                        Rated Voltage Un AC (V)
                                                        690
                                                        Homologations
                                                        IEC & UL
                                                        Fuses format
                                                        Cylindrical
                                                        Fuses dimension
                                                        22x58mm
                                                        Rated Voltage Un DC (V)
                                                        750
                                                        Number of phase
                                                        3+N
                                                        Max power dissipation (W)
                                                        12

                                                        Product available on request

                                                        Fuse holder 22x58 690V IEC / 750V UL 1pole
                                                          Available
                                                          for Cylindrical fuses

                                                          Fuse holder 22x58 690V IEC / 750V UL 1pole

                                                          5106005.1.0
                                                          Rated current In (A)
                                                          100
                                                          Rated Voltage Un AC (V)
                                                          690
                                                          Homologations
                                                          IEC & UL
                                                          Fuses format
                                                          Cylindrical
                                                          Fuses dimension
                                                          22x58mm
                                                          Rated Voltage Un DC (V)
                                                          750
                                                          Number of phase
                                                          1
                                                          Max power dissipation (W)
                                                          12
                                                          €18.40
                                                          Fuse holder 22x58 690V 1+N with switch(fusing+presence)(PMX)
                                                            Available
                                                            for Cylindrical fuses

                                                            Fuse holder 22x58 690V 1+N with switch(fusing+presence)(PMX)

                                                            485321.0.0
                                                            Rated current In (A)
                                                            125
                                                            Rated Voltage Un AC (V)
                                                            690
                                                            Homologations
                                                            IEC & UL
                                                            Fuses format
                                                            Cylindrical
                                                            Fuses dimension
                                                            22x58mm
                                                            Rated Voltage Un DC (V)
                                                            750
                                                            Number of phase
                                                            1+N
                                                            Max power dissipation (W)
                                                            12

                                                            Product available on request

                                                            Fuse holder 22x58 690V IEC / 750V UL 2poles
                                                              Available
                                                              for Cylindrical fuses

                                                              Fuse holder 22x58 690V IEC / 750V UL 2poles

                                                              5106005.2.0
                                                              Rated current In (A)
                                                              100
                                                              Rated Voltage Un AC (V)
                                                              690
                                                              Homologations
                                                              IEC & UL
                                                              Fuses format
                                                              Cylindrical
                                                              Fuses dimension
                                                              22x58mm
                                                              Rated Voltage Un DC (V)
                                                              750
                                                              Number of phase
                                                              2
                                                              Max power dissipation (W)
                                                              12
                                                              Rated insultaion voltage AC (V)
                                                              750
                                                              €38.32
                                                              Fuse holder22x58 690V IEC/750V UL 2p switch(fusing+presence)
                                                                Available
                                                                for Cylindrical fuses

                                                                Fuse holder22x58 690V IEC/750V UL 2p switch(fusing+presence)

                                                                5106005.2S.0
                                                                Rated current In (A)
                                                                100
                                                                Rated Voltage Un AC (V)
                                                                690
                                                                Homologations
                                                                IEC & UL
                                                                Fuses format
                                                                Cylindrical
                                                                Fuses dimension
                                                                22x58mm
                                                                Rated Voltage Un DC (V)
                                                                750
                                                                Number of phase
                                                                2
                                                                Max power dissipation (W)
                                                                12

                                                                Product available on request

                                                                Fuse holder 22x58 690V IEC / 750V UL 3poles
                                                                  Available
                                                                  for Cylindrical fuses

                                                                  Fuse holder 22x58 690V IEC / 750V UL 3poles

                                                                  5106005.3.0
                                                                  Rated current In (A)
                                                                  100
                                                                  Rated Voltage Un AC (V)
                                                                  690
                                                                  Homologations
                                                                  IEC & UL
                                                                  Fuses format
                                                                  Cylindrical
                                                                  Fuses dimension
                                                                  22x58mm
                                                                  Rated Voltage Un DC (V)
                                                                  750
                                                                  Number of phase
                                                                  3
                                                                  Max power dissipation (W)
                                                                  12
                                                                  €57.11
                                                                  Fuse holder 22x58 2poles 690V (PMX)
                                                                    Available
                                                                    for Cylindrical fuses

                                                                    Fuse holder 22x58 2poles 690V (PMX)

                                                                    485304.0.0
                                                                    Rated current In (A)
                                                                    125
                                                                    Rated Voltage Un AC (V)
                                                                    690
                                                                    Homologations
                                                                    IEC & UL
                                                                    Fuses format
                                                                    Cylindrical
                                                                    Fuses dimension
                                                                    22x58mm
                                                                    Rated Voltage Un DC (V)
                                                                    750
                                                                    Number of phase
                                                                    2
                                                                    Max power dissipation (W)
                                                                    12
                                                                    €38.76
                                                                    Fuse holder 22x58 690V IEC / 750V UL 3poles with light
                                                                      Available
                                                                      for Cylindrical fuses

                                                                      Fuse holder 22x58 690V IEC / 750V UL 3poles with light

                                                                      5106005.3L.0
                                                                      Rated current In (A)
                                                                      100
                                                                      Rated Voltage Un AC (V)
                                                                      690
                                                                      Homologations
                                                                      IEC & UL
                                                                      Fuses format
                                                                      Cylindrical
                                                                      Fuses dimension
                                                                      22x58mm
                                                                      Rated Voltage Un DC (V)
                                                                      750
                                                                      Number of phase
                                                                      3
                                                                      Max power dissipation (W)
                                                                      12
                                                                      €86.41
                                                                      Fuse holder 22x58 4poles 690V (PMX)
                                                                        Available
                                                                        for Cylindrical fuses

                                                                        Fuse holder 22x58 4poles 690V (PMX)

                                                                        485307.0.0
                                                                        Rated current In (A)
                                                                        125
                                                                        Rated Voltage Un AC (V)
                                                                        690
                                                                        Homologations
                                                                        IEC & UL
                                                                        Fuses format
                                                                        Cylindrical
                                                                        Fuses dimension
                                                                        22x58mm
                                                                        Rated Voltage Un DC (V)
                                                                        750
                                                                        Number of phase
                                                                        4
                                                                        Max power dissipation (W)
                                                                        12
                                                                        €76.63
                                                                        Clip diameter 20/22mm with holes
                                                                          Available
                                                                          for Cylindrical fuses

                                                                          Clip diameter 20/22mm with holes

                                                                          6100201.3.0
                                                                          Homologations
                                                                          IEC
                                                                          Fuses format
                                                                          Cylindrical
                                                                          Inside diameter (mm)
                                                                          20 22

                                                                          Product available on request

                                                                          Product added to wishlist
                                                                          Product added to compare.
