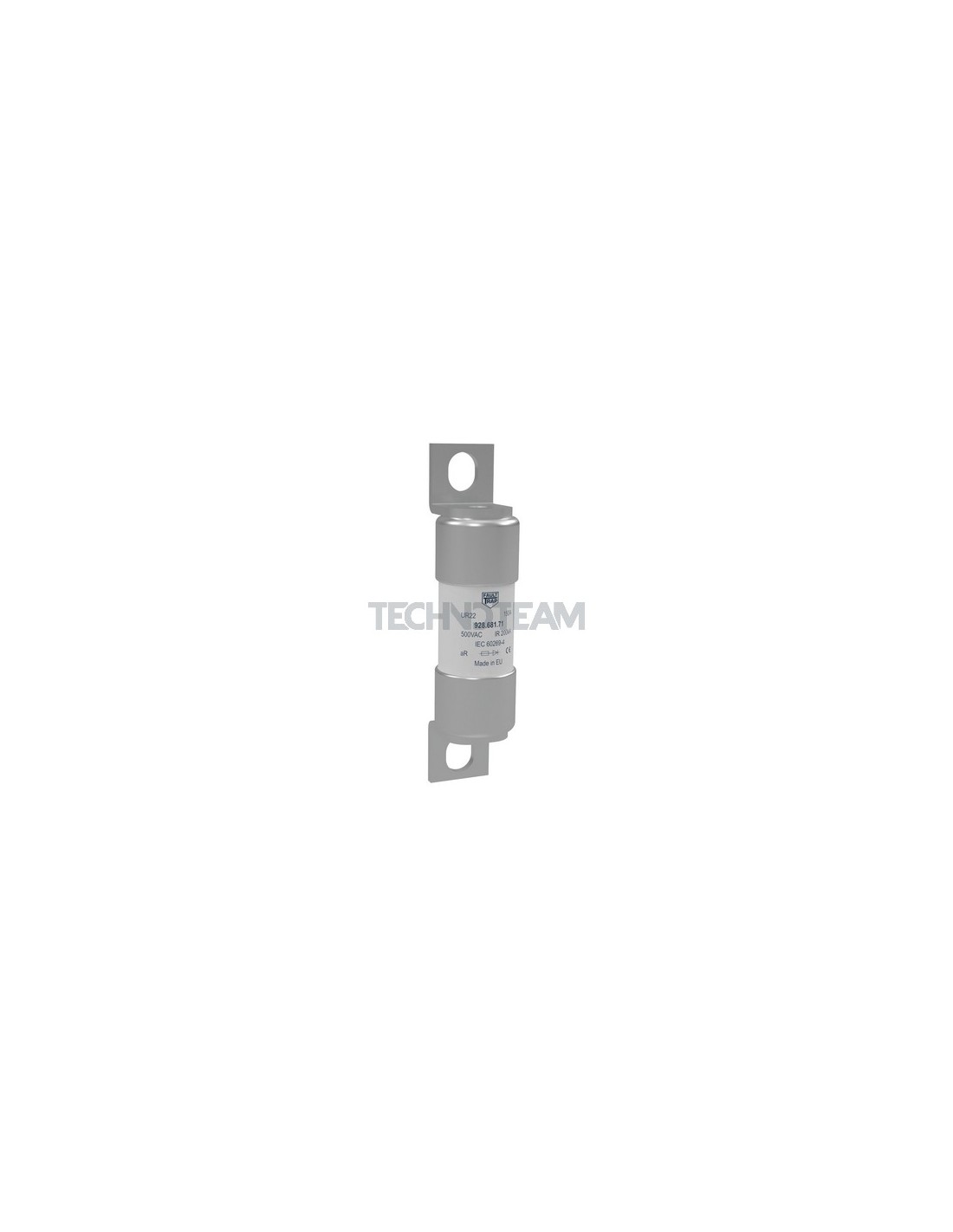

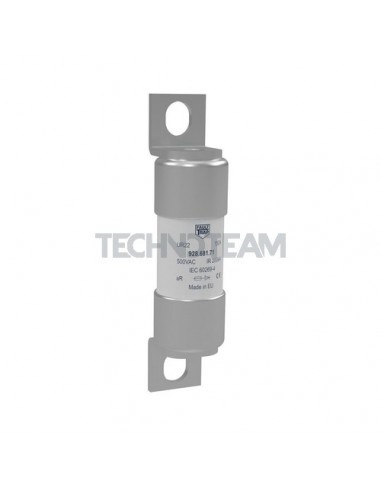

UR22 - Fuse 500V AC 22x58 fixing 80mm 150A

    UR22 - Fuse 500V AC 22x58 fixing 80mm 150A

    FAULTRAP
    928.681.71.0.0
    Product available on request

    Product Request:


    UR22 - Fuse 500V AC 22x58 fixing 80mm 150A

    UR22 - Fuse 500V AC 22x58 fixing 80mm 150A

    do not include special characters

    * Required fields



    Class
    aR
    Rated current In (A)
    150
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    550
    Format
    Screw fixing
    Dimension
    22x58mm
    Pre-arcing I2t value (A2s)
    4850
    Total I2t value (A2s)
    23500
    Homologations
    IEC & UL
    Power loss (W)
    31.9
    Catalog name
    UR22
