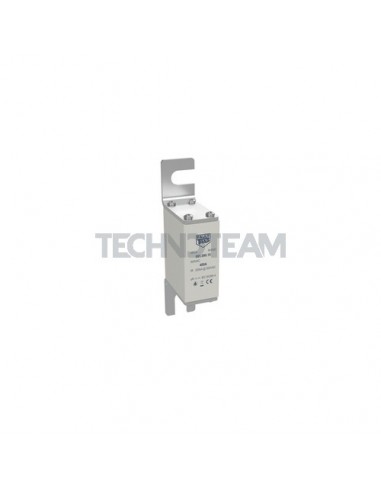

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 40A

    NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 40A

    FAULTRAP
    177.747.74.0.0
    Product available on request

    Product Request:

    NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 40A

    NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 40A

    do not include special characters

    * Required fields



    Download

    Class
    aR
    Rated current In (A)
    40
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    700
    Format
    Screw fixing
    Dimension
    000-80mm
    Pre-arcing I2t value (A2s)
    230
    Total I2t value (A2s)
    840
    Homologations
    IEC & UL
    Power loss (W)
    7.2
    Rated Voltage Un DC (V)
    700
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    2
    Catalog name
    NR2B

    Accessories

    Fuse holder for DIN000-00 80mm 1000V 400A
      Available
      for Bolted fuses

      Fuse holder for DIN000-00 80mm 1000V 400A

      2118901.0.0
      Rated current In (A)
      400
      Rated Voltage Un AC (V)
      1000
      Homologations
      IEC & UL
      Fuses format
      Screw fixing
      Fuses dimension
      80mm
      Number of phase
      1
      Distance (mm)
      80
      Max power dissipation (W)
      34
      €24.35
