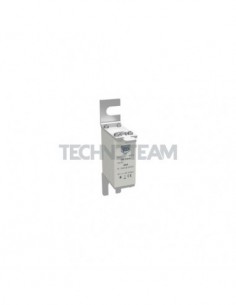

NR2A - Fuse DIN000 80mm aR 500VAC ind. micro 350A

    NR2A - Fuse DIN000 80mm aR 500VAC ind. micro 350A

    FAULTRAP
    768.569.77.0.0
    Product available on request

    Product Request:

    NR2A - Fuse DIN000 80mm aR 500VAC ind. micro 350A

    NR2A - Fuse DIN000 80mm aR 500VAC ind. micro 350A

    do not include special characters

    * Required fields



    Download

    Catalog Datasheet
    Class
    aR
    Rated current In (A)
    350
    Rated Voltage Un AC (V)
    500
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    500
    Format
    Screw fixing
    Dimension
    000-80mm
    Pre-arcing I2t value (A2s)
    21500
    Total I2t value (A2s)
    92500
    Homologations
    IEC
    Power loss (W)
    80
    Time costant L/R (ms)
    2

    Accessories

    Fuse holder for DIN000-00 80mm 1000V 400A
      Available
      for Bolted fuses

      Fuse holder for DIN000-00 80mm 1000V 400A

      2118901.0.0
      Rated current In (A)
      400
      Rated Voltage Un AC (V)
      1000
      Homologations
      IEC & UL
      Fuses format
      Screw fixing
      Fuses dimension
      80mm
      Number of phase
      1
      Distance (mm)
      80
      Max power dissipation (W)
      34
      €24.35
      Fuse holder for DIN000-00 80mm +cover 1000V 400A
        Available
        for Bolted fuses

        Fuse holder for DIN000-00 80mm +cover 1000V 400A

        2118908.0.0
        Rated current In (A)
        400
        Rated Voltage Un AC (V)
        1000
        Homologations
        IEC & UL
        Fuses format
        Screw fixing
        Fuses dimension
        80mm
        Number of phase
        1
        Distance (mm)
        80
        Max power dissipation (W)
        34
