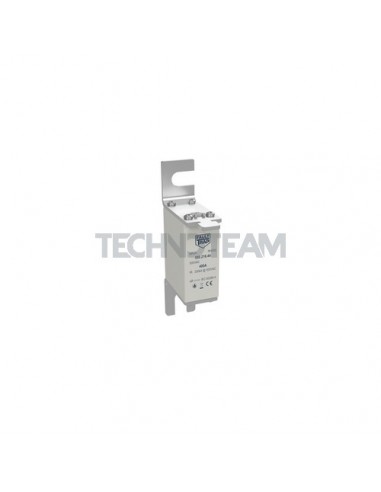

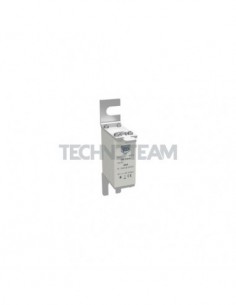

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 250A

    NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 250A

    FAULTRAP
    934.169.73.0.0
    Product available on request

    Product Request:


    NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 250A

    NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 250A

    do not include special characters

    * Required fields



    Class
    aR
    Rated current In (A)
    250
    Rated Voltage Un AC (V)
    690
    Rated break.capacity I1 AC (A)
    200000
    Voltage of total I2t test
    700
    Format
    Screw fixing
    Dimension
    000-80mm
    Pre-arcing I2t value (A2s)
    10150
    Total I2t value (A2s)
    37100
    Homologations
    IEC & UL
    Power loss (W)
    57
    Rated Voltage Un DC (V)
    700
    Rated break.capacity I1 DC (A)
    30000
    Time costant L/R (ms)
    2
