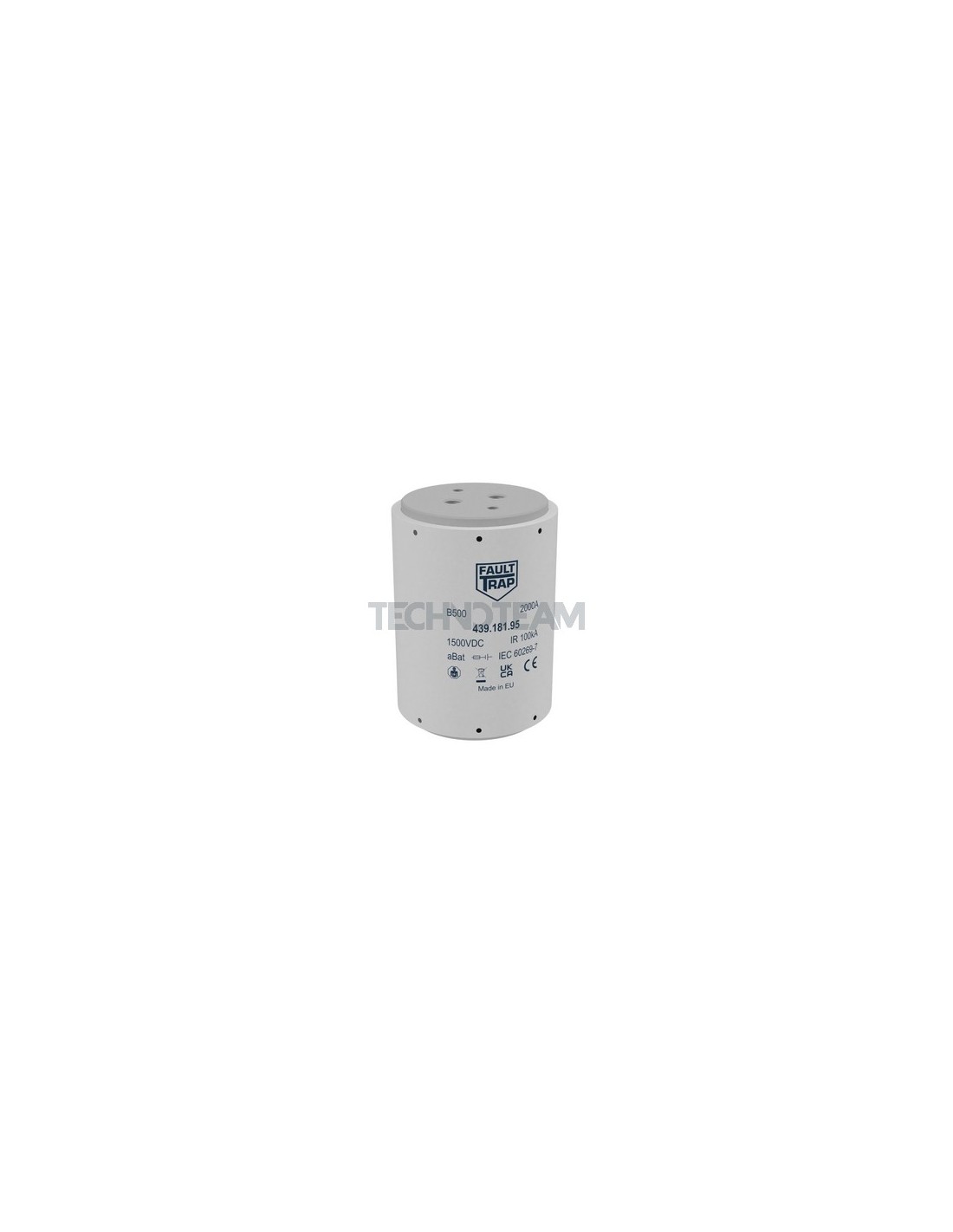

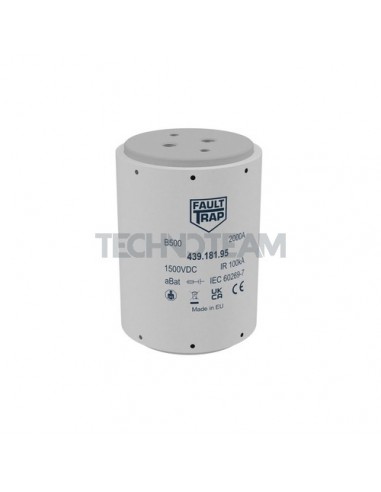

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1250A

    B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1250A

    FAULTRAP
    484.196.45.0.0
    Product available on request

    Product Request:


    B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1250A

    B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1250A

    do not include special characters

    * Required fields



    Class
    aBat
    Rated current In (A)
    1250
    Voltage of total I2t test
    1500
    Format
    Screw fixing
    Dimension
    89x144mm
    Pre-arcing I2t value (A2s)
    718000
    Total I2t value (A2s)
    3912000
    Homologations
    IEC
    Power loss (W)
    300
    Rated Voltage Un DC (V)
    1500
    Rated break.capacity I1 DC (A)
    100000
    Time costant L/R (ms)
    3
    Min breaking current I3(A)
    14000
    Catalog name
    B500
